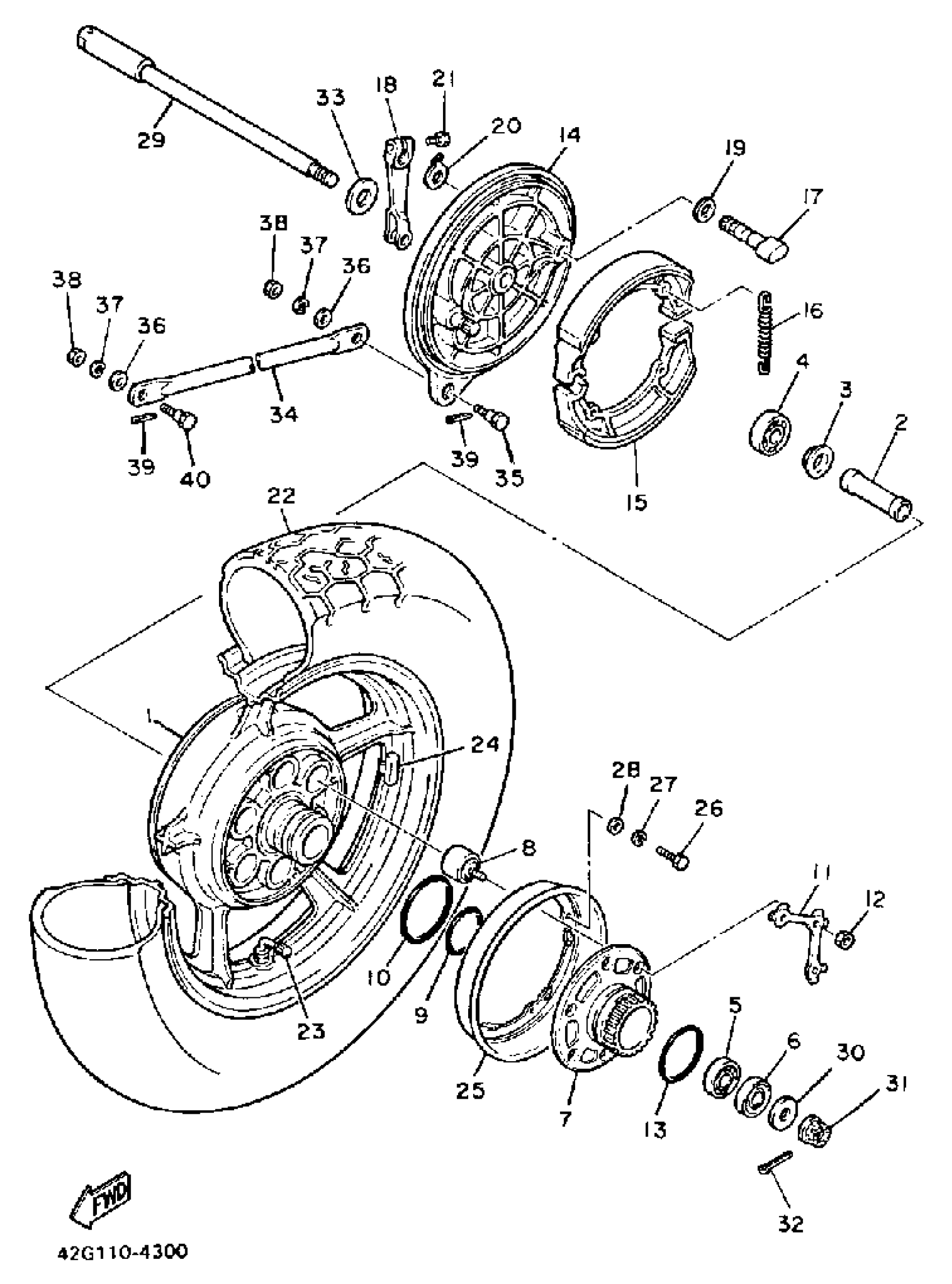

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 REAR WHEEL Diagram
#
1
CAST WHEEL, REAR
42H-25338-01-8L
Unavailable
2
SPACER
90560-17249-00
Unavailable
8
DAMPER
42H-25364-00-00
Unavailable
14
PLATE, BRAKE SHOE
42H-25321-02-00
Unavailable
16
SPRING, TENSION 2462533300
90507-20002-00
Unavailable
17
CAMSHAFT
4H7-25351-00-00
Unavailable
18
LEVER, CAMSHAFT
42X-25355-00-00
Unavailable
19
WASHER, PLATE (3X3)
90201-15797-00
Unavailable
20
PLATE, INDICATOR
4H7-2533A-02-00
Unavailable
21
BOLT, HEXAGON (462)
90101-06291-00
Unavailable
22
140/90-15G508RWLTL (140/90-15-70H)
94114-156M4-00
Unavailable
23
VALVE, RIM (2JE)
93900-00025-00
Unavailable
24
BALANCER, WHEEL
5MT-25398-00-00
Unavailable
24
BALANCER, WHEEL
5MT-25398-10-00
Unavailable
24
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
25
COVER, PLATE
16G-25327-00-00
Unavailable
26
BOLT, HEXAGON
97013-05020-00
Unavailable
27
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
28
WASHER, PLAIN (646)
92990-05600-00
Unavailable
29
AXLE, WHEEL
42X-25381-00-00
Unavailable
30
WASHER, PLATE
90201-14022-00
Unavailable
31
NUT, CASTLE (4V7)
90171-14031-00
Unavailable
31
NUT, CASTLE
90171-14044-00
Unavailable
32
PIN, COTTER
91490-30030-00
Unavailable
33
COLLAR, WHEEL
4H7-25377-00-00
Unavailable
34
BAR, TENSION
42X-25371-02-00
Unavailable
35
BOLT (537 TENSION BAR)
90109-08406-00
Unavailable
36
.. WASHER, PLATE
92990-08600-00
Unavailable
37
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
38
. NUT
95380-08700-00
Unavailable
39
PIN, COTTER
91490-20025-00
Unavailable
40
BOLT (183-25378-00)
90109-08368-00
Unavailable
