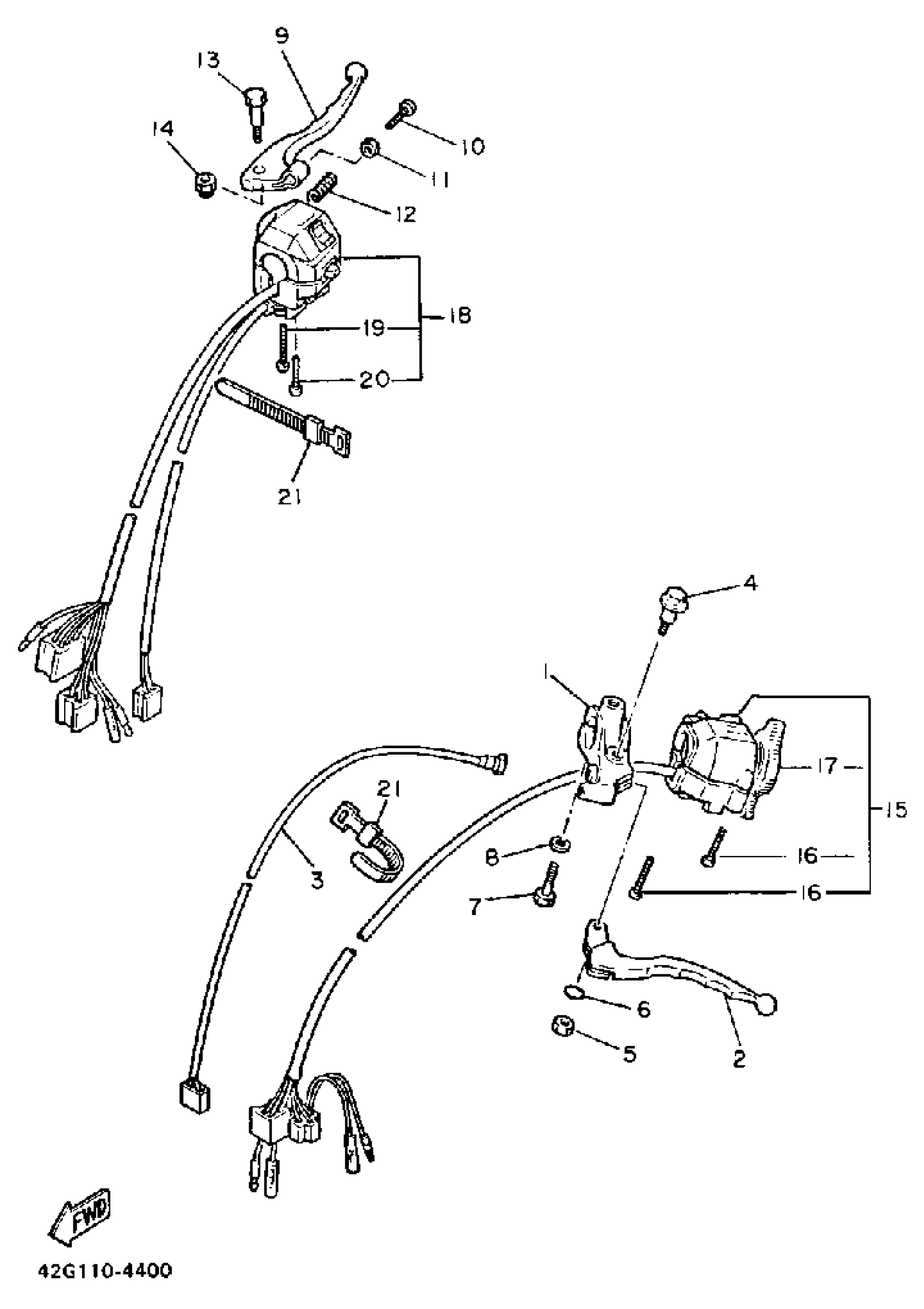

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 HANDLE SWITCH LEVER XV1000L LC Diagram

#

Description
Price

1

HOLDER, LEVER

10M-82911-00-00

Unavailable

2

LEVER 1

10W-83912-00-00

Unavailable

3

SWITCH

3Y6-82917-00-00

Unavailable

4

BOLT(3GB)

90109-061F3-00

$7.49

5

NUT, SELF-LOCKING

95617-06100-00

$8.49

6

O-RING (2H7)

93210-11368-00

$5.60

7

BOLT, HEXAGON

97007-06022-00

Unavailable

8

WASHER, SPRING

92907-06100-00

$4.25

9

LEVER 2

4L0-83922-00-00

$46.99

10

SCREW (2L0)

90149-06131-00

$8.49

11

NUT HEXAGON 306839270000

90170-06010-00

$8.49

12

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

13

BOLT (4L0)

90109-06577-00

$5.60

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

SWITCH, HANDLE 3 (LEFT)

42X-83973-00-00

Unavailable

16

SCREW, PAN

98507-05035-00

Unavailable

17

. CHOKE RING ASSEMBLY

58L-83960-00-00

Unavailable

18

SWITCH, HANDLE 4

42H-83972-01-00

Unavailable

19

SCREW, PAN

98507-05040-00

Unavailable

20

SCREW, PAN

98507-05045-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

Unavailable
