- XV1000LC (VIRAGO 1000 CA) 1984
FUEL TANK XV1000L N

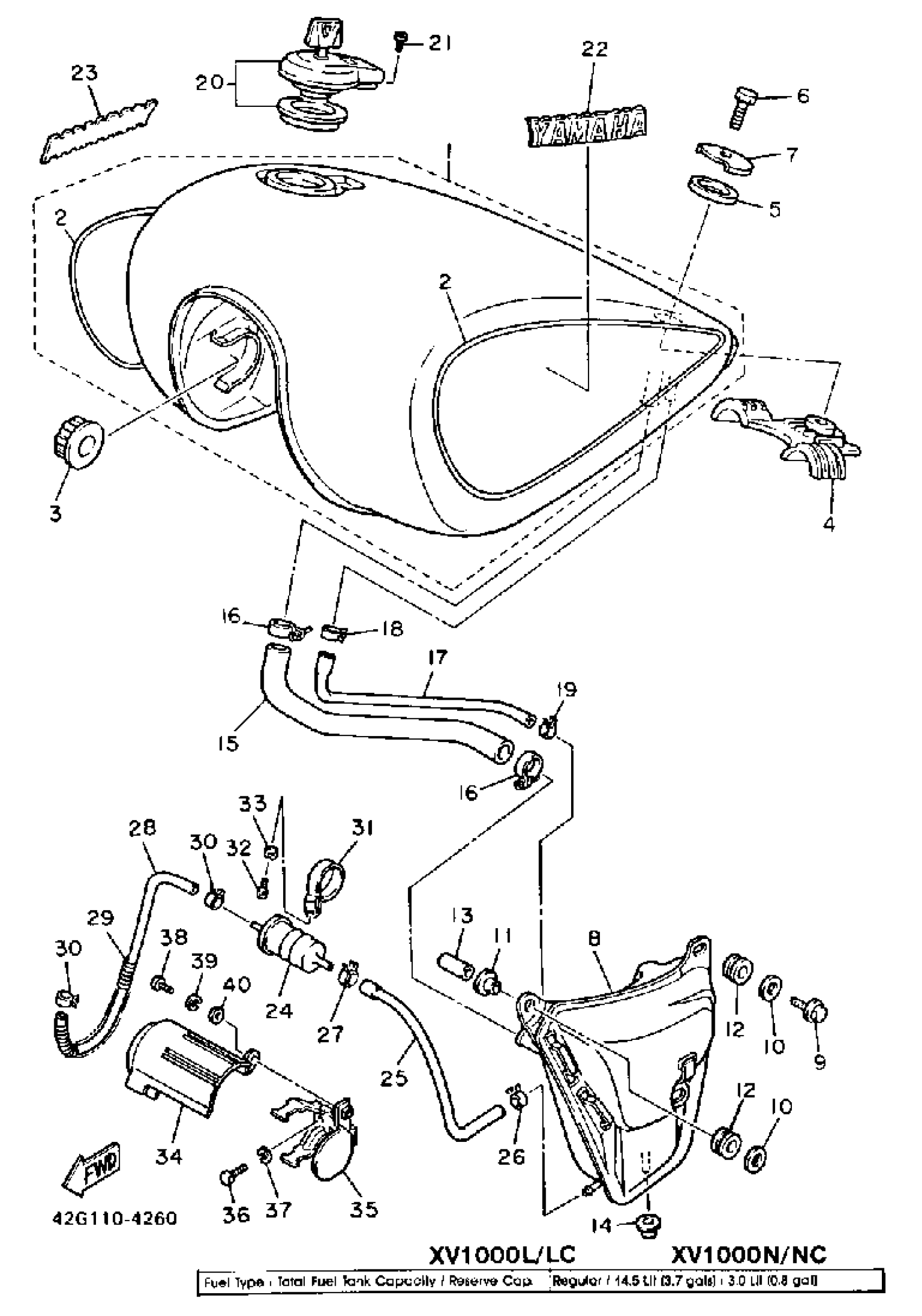

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 FUEL TANK XV1000L N Diagram
#
1
FUEL TANK
42G-24110-00-03
Unavailable
1
FUEL TANK COMP.
42G-24110-G0-01
Unavailable
1
FUEL TANK (ROMANESQUE CRIMSON)
42G-24110-G0-03
Unavailable
2
. GRAPHIC SET (LC)
42H-24240-00-00
Unavailable
2
. GRAPHIC SET (NC) (GLORIOUS MAXI BROWN)
56W-24240-00-00
Unavailable
2
. GRAPHIC SET (NC) (URUSHI BLACK)
56W-24240-10-00
Unavailable
4
DAMPER, LOCATING 2
42X-24182-00-00
Unavailable
8
SUB TANK ASSEMBLY
42H-24280-00-00
Unavailable
9
BOLT,SOCKET
91317-06020-00
Unavailable
12
GROMMET (1E5)
90480-13163-00
Unavailable
13
SPACER
90560-06258-00
Unavailable
14
GROMMET(42G)
90480-10408-00
Unavailable
15
PIPE 6
42H-24316-00-00
Unavailable
16
HOSE CLAMP ASSY(4JT)
90450-28073-00
Unavailable
17
PIPE 7
42H-24317-00-00
Unavailable
18
CLIP (7K7)
90467-11044-00
Unavailable
19
CLIP(42X)
90467-10091-00
Unavailable
20
CAP ASSY
4X7-24602-10-00
Unavailable
21
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
22
EMBLEM 1 (LC)
42X-24161-00-00
Unavailable
22
EMBLEM 1 (NC)
57A-24161-00-00
Unavailable
23
EMBLEM 2 (LC)
42X-24162-00-00
Unavailable
23
EMBLEM 2 (NC)
57A-24162-00-00
Unavailable
24
FILTER ASSEMBLY (26H-24560-00-00)
99999-01566-00
Unavailable
25
PIPE, FUEL 1
42H-24311-00-00
Unavailable
26
CLIP(42X)
90467-10091-00
Unavailable
27
CLIP (7K7)
90467-11044-00
Unavailable
28
HOSE (L400)
90445-116K9-00
Unavailable
29
SPRING, COMPRESSION(3JK)
90501-101J5-00
Unavailable
30
CLIP(42X)
90467-10091-00
Unavailable
31
CLAMP
90465-08256-00
Unavailable
32
SCREW PAN HEAD
98580-06010-00
Unavailable
33
WASHER, SPRING
92995-06100-00
Unavailable
34
COVER
42H-24452-00-00
Unavailable
35
BRACKET, FUEL PUMP
3JK-24491-00-00
Unavailable
36
BOLT, HEXAGON
97017-06012-00
Unavailable
37
WASHER, SPRING
92907-06100-00
Unavailable
38
SCREW, PAN HEAD(62J)
97885-06012-00
Unavailable
39
WASHER, SPRING
92995-06100-00
Unavailable
40
WASHER, PLATE (4H7)
90201-061A5-00
Unavailable
