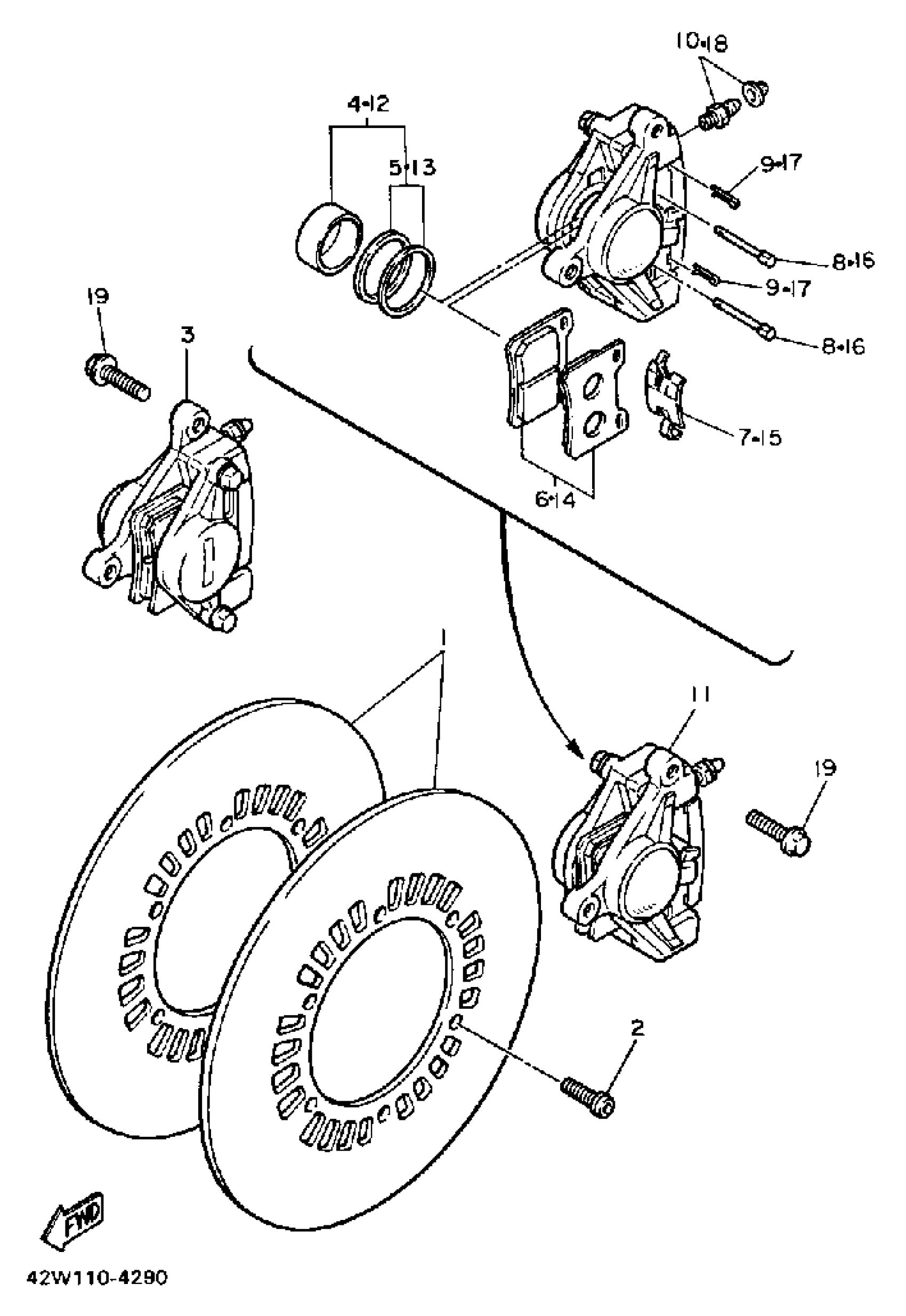

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE RH (RIGHT)

42H-25831-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

3

CALIPER ASSY(RIGHT

42H-2580U-00-00

Unavailable

4

PISTON ASSY, CALIPER

26H-W0057-00-00

Unavailable

5

CALIPER SEAL KIT

4XV-W0047-50-00

$25.99

6

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

7

SUPPORT, PAD

1WG-25919-00-00

$10.99

8

PIN, PAD

3HE-25924-00-00

Unavailable

9

CLIP, PAD PIN

3GM-25925-00-00

$11.99

10

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

11

CALIPER ASSY(LEFT)

42H-2580T-00-00

Unavailable

12

PISTON ASSY, CALIPER

26H-W0057-00-00

Unavailable

13

CALIPER SEAL KIT

4XV-W0047-50-00

$25.99

14

BRAKE PAD KIT 2

1FK-W0046-01-00

$56.99

15

SUPPORT, PAD

1WG-25919-00-00

$10.99

16

PIN, PAD

3HE-25924-00-00

Unavailable

17

CLIP, PAD PIN

3GM-25925-00-00

$11.99

18

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

19

BOLT, WASHER BASED(3VD)

90105-10638-00

Unavailable
