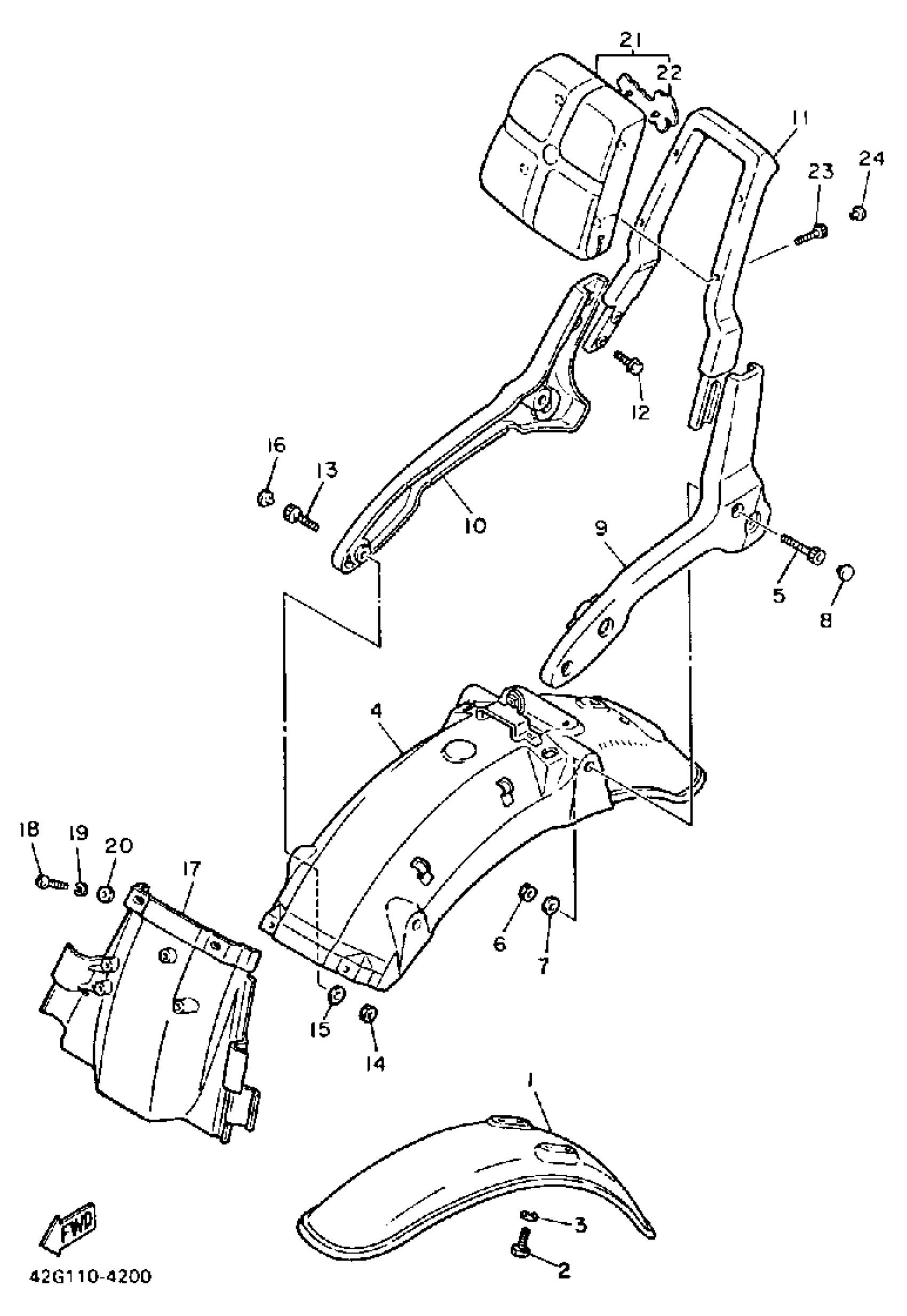

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

42X-21510-00-93

Unavailable

2

BOLT (661)

97013-06012-00

$5.60

3

WASHER, SPRING

92995-06100-00

Unavailable

4

FENDER, REAR

42X-21610-00-93

Unavailable

5

BOLT,SOCKET

91317-10040-00

$7.49

6

NUT(624)

95380-10600-00

$3.50

7

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

8

PLUG(42X)

90338-10164-00

$9.49

9

STAY 1

42H-2164F-01-00

Unavailable

10

STAY 2

42H-2164G-01-00

Unavailable

11

GRIP 1

42H-2164A-02-00

Unavailable

12

BOLT, FLANGE

95817-06016-00

$2.75

13

BOLT,SOCKET

91314-08040-00

$8.49

14

NUT(6L2)

95333-08600-00

$2.49

15

WASHER, PLAIN

92990-08200-00

Unavailable

16

PLUG(42X)

90338-08163-00

Unavailable

17

GUARD, MUD

42X-21629-00-00

Unavailable

18

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLATE 8221447500

90201-06057-00

Unavailable

21

. BACK REST ASSEMBLY

1TA-2840F-00-00

Unavailable

22

.. EMBLEM

42H-24786-00-00

Unavailable

23

BOLT, SOCKET

91314-06035-00

Unavailable

24

PLUG(42H)

90338-06162-00

Unavailable
