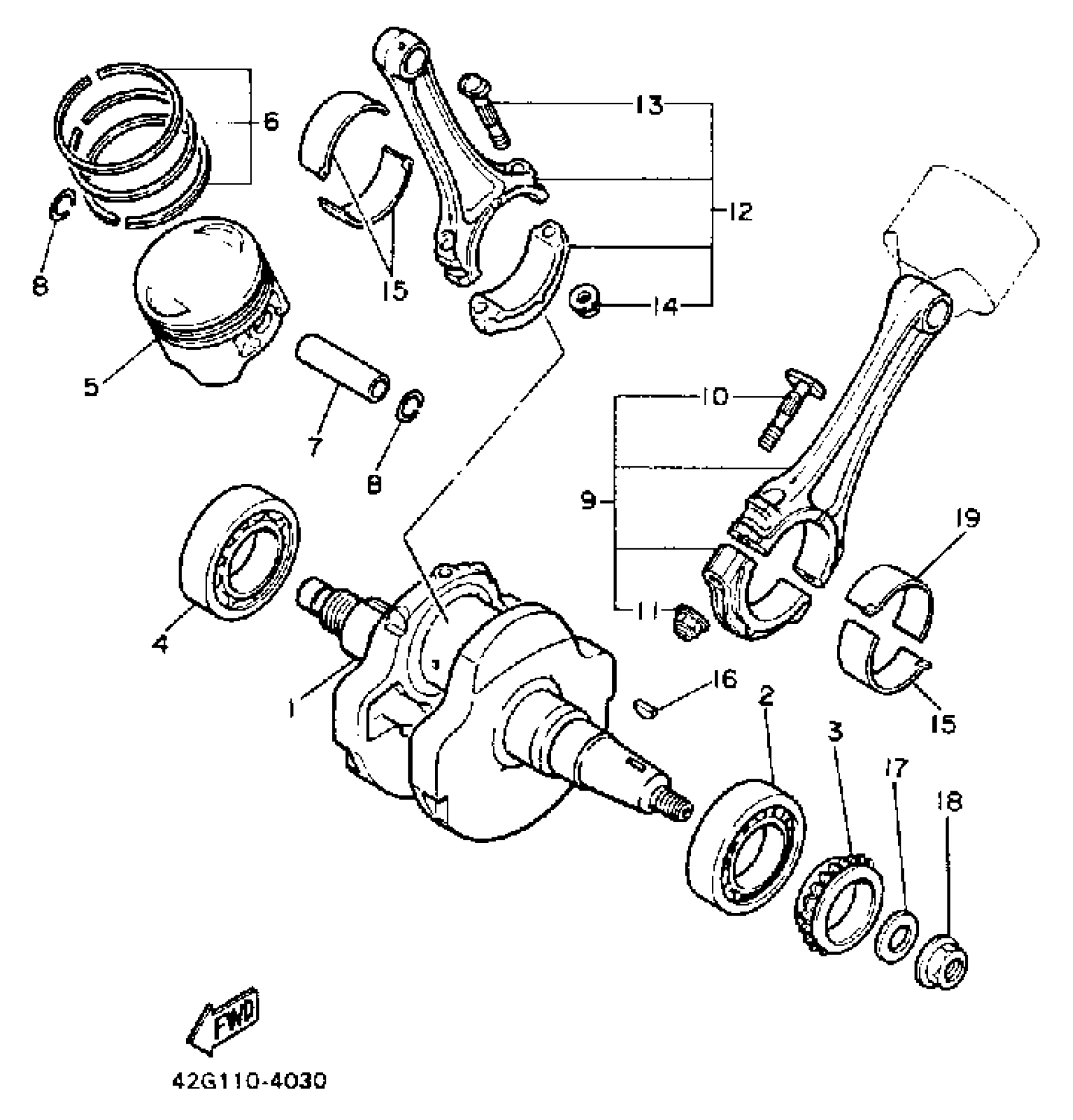

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

5A8-11411-01-00

Unavailable

2

BEARING(3EF)

93306-30808-00

Unavailable

3

SPROCKET, DRIVE

4X7-13354-00-00

Unavailable

4

BEARING(3EF)

93306-30808-00

Unavailable

5

PISTON STD (STD)

42H-11631-00-A0

Unavailable

5

PISTON 2 O/S 0.50 (0.50MM O/S)

42H-11636-00-00

Unavailable

5

PISTON 4 O/S 1.00 (1.00MM O/S)

42H-11638-00-00

Unavailable

6

PISTON RINGSET STD (STD)

5A8-11610-00-00

Unavailable

6

PISTON RINGSET 2ND (2ND O/S)

5A8-11610-20-00

Unavailable

6

PISTON RINGSET 4TH

(5A8-11610-40-00)

Unavailable

7

PIN, PISTON

5A8-11633-00-00

Unavailable

8

CIRCLIP 256116340000

93450-24028-00

$5.60

9

CONN.ROD.ASY.

5A8-11650-00-00

Unavailable

10

BOLT, CONNECTING ROD

4X7-11654-01-00

$6.99

11

NUT (11H)

90179-09379-00

$8.49

12

CONN.ROD.ASY.

5A8-11650-00-00

Unavailable

13

BOLT, CONNECTING ROD

4X7-11654-01-00

$6.99

14

NUT (11H)

90179-09379-00

$8.49

15

PLANE BEARING, CONNECTING ROD

4X7-11656-00-00

Unavailable

15

PLANE BEARING, CONNECTING ROD

4X7-11656-10-00

Unavailable

15

PLANE BEARING, CONNECTING ROD

4X7-11656-20-00

Unavailable

15

PLANE BEARING, CONNECTING ROD

4X7-11656-30-00

Unavailable

15

PLANE BEARING, CONNECTING ROD

4X7-11656-40-00

Unavailable

16

KEY, WOODRUFF

90280-05001-00

Unavailable

17

WASHER, PLATE(10L)

90201-165H4-00

Unavailable

18

NUT(10L)

90179-16448-00

Unavailable

19

PLANE BEARING, CONNECTING ROD

5G5-11656-00-00

Unavailable

19

PLANE BEARING, CONNECTING ROD

5G5-11656-10-00

Unavailable

19

PLANE BEARING, CONNECTING ROD

5G5-11656-20-00

Unavailable
