CRANKCASE COVER

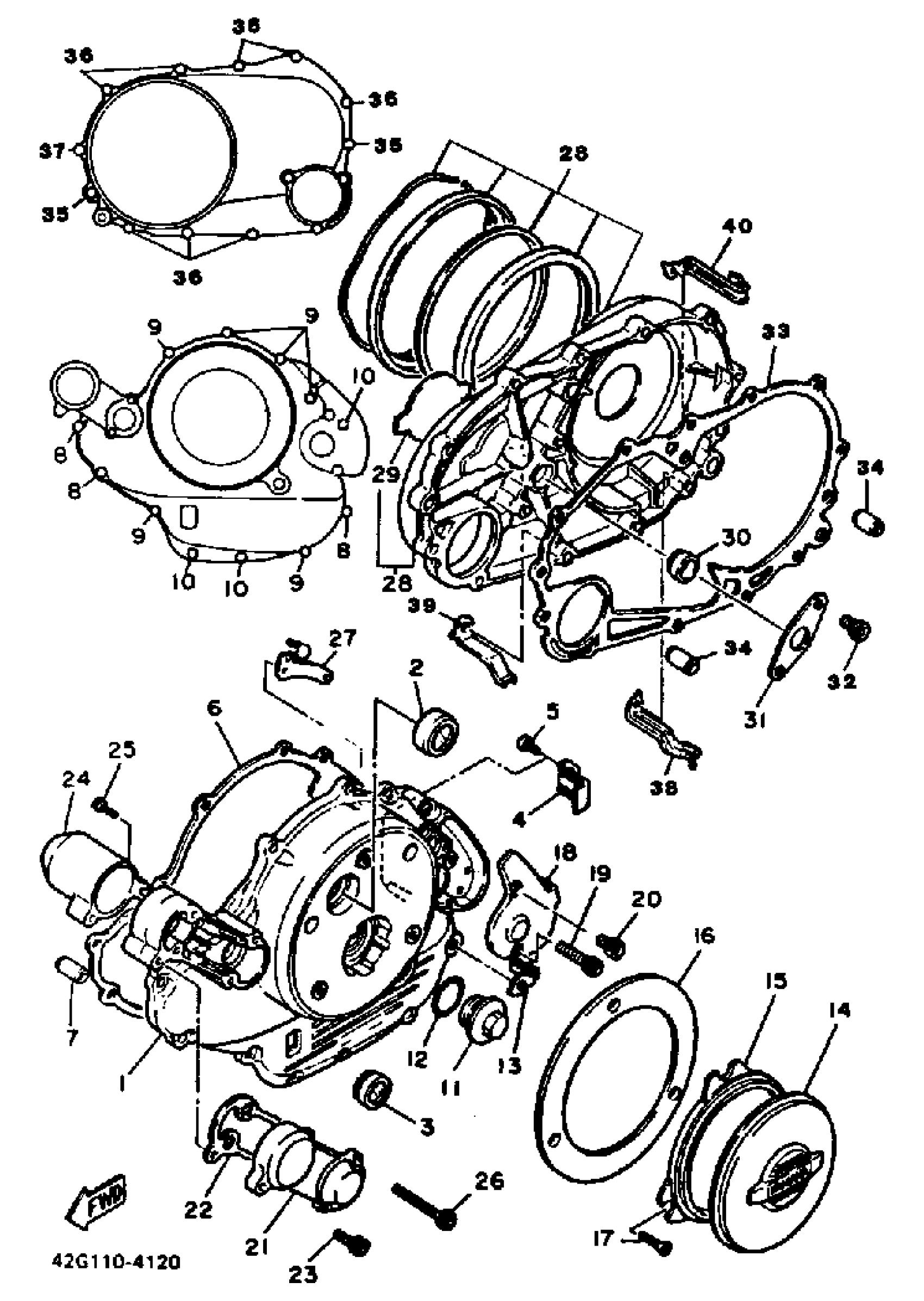

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 CRANKCASE COVER Diagram
#
1
COVER, CRANKCASE L
42H-15411-01-00
Unavailable
2
GAUGE, LEVEL
4X7-15361-00-00
Unavailable
4
UNAVAILABLE IN PRICE BOOK
90562-08073-00
Unavailable
13
CLAMP
90462-08076-00
Unavailable
14
COVER, GENERATOR
42X-15415-01-00
Unavailable
15
GASKET 1
4X7-15455-00-00
Unavailable
16
COVER, GENERATOR R
42H-15425-00-00
Unavailable
17
SCREW, FLAT HEAD
98780-06016-00
Unavailable
18
COVER, CAP
42X-15417-01-00
Unavailable
19
BOLT,SOCKET
91314-06055-00
Unavailable
20
BOLT, SOCKET
91314-06016-00
Unavailable
21
COVER, SHIFTER 1
42H-15419-01-00
Unavailable
22
GASKET, SHFTER CUR
5A8-15459-10-00
Unavailable
24
COVER, SHIFTER
5A8-15429-00-00
Unavailable
25
SCREW, PAN HEAD(6E0)
97885-06030-00
Unavailable
26
BOLT, SOCKET
91314-06070-00
Unavailable
27
HOLDER, CLUTCH CABLE
42X-15441-00-00
Unavailable
28
COVER, CRANKCASE R
42H-W1542-01-00
Unavailable
29
. EMBLEM
42X-15447-00-00
Unavailable
30
OIL SEAL (4X7)
93101-14102-00
Unavailable
31
PLATE, BEARING COVER
4X7-15388-00-00
Unavailable
32
BOLT,SOCKET
91317-06016-00
Unavailable
33
GASKET, CRANKCASE COVER 3
3EG-15462-00-00
Unavailable
34
PIN, DOWEL(3BM)
99530-10120-00
Unavailable
36
BOLT,SOCKET HEAD
91314-06025-00
Unavailable
38
CLAMP
90462-10143-00
Unavailable
39
CLAMP
90462-10003-00
Unavailable
40
CLAMP
90462-12142-00
Unavailable
