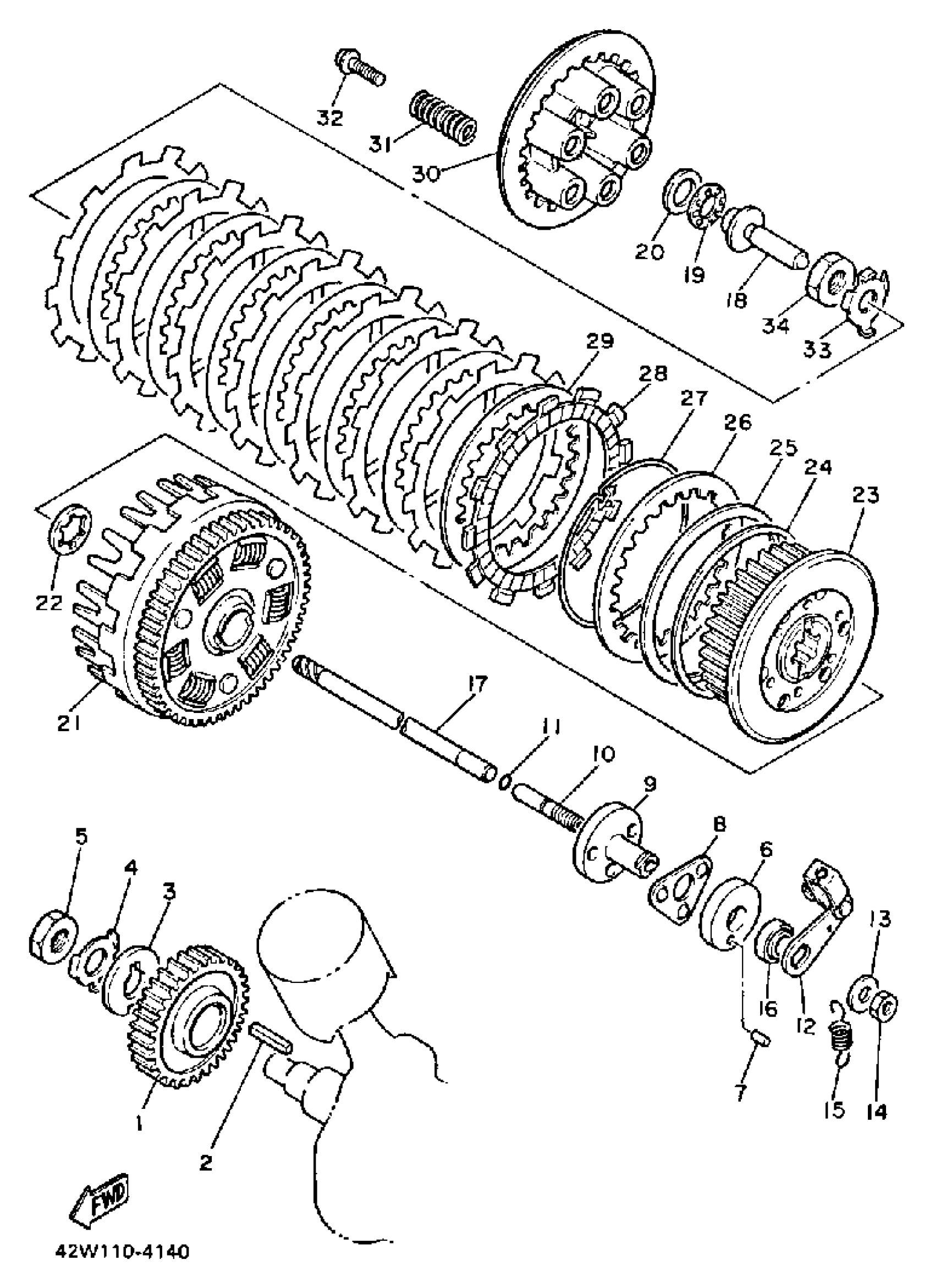

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

4X7-16111-00-00

$132.99

2

KEY, STRAIGHT (4X7)

90282-07042-00

$9.49

3

WASHER, LOCK

90215-20006-00

$8.49

4

WASHER, LOCK

90215-20006-00

$8.49

5

NUT (4X7)

90170-20274-00

$16.99

6

HOUSING, PUSH SCREW

2H7-16396-00-00

Unavailable

7

PIN, DOWEL (296)

93606-07082-00

$8.49

8

RETAINER, BALL

2H7-16395-01-00

$28.99

9

SCREW, PUSH

2H7-16341-00-00

Unavailable

10

SCREW, CLUTCH ADJUSTING

2H7-16343-00-00

$32.99

11

O-RING (2H7)

93210-48364-00

$8.49

12

PUSH LEVER ASSY

4X7-16340-00-00

$28.99

13

WASHER, PLAIN

92990-08200-00

Unavailable

14

. NUT

95380-08700-00

Unavailable

15

SPRING TENSION 360163450000

90506-10069-00

Unavailable

16

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

17

ROD, PUSH 2

4X7-16357-00-00

Unavailable

18

ROD, PUSH 1

4X7-16356-00-00

Unavailable

19

BEARING, THRUST (713)

93340-21505-00

Unavailable

20

WASHER, PLATE (5G3)

90201-154E9-00

Unavailable

21

PRIMARY DRIVEN GEAR COMP.

4X7-16150-02-00

Unavailable

22

. PLATE, THRUST 1

3Y1-16154-00-00

Unavailable

23

BOSS, CLUTCH

4X7-16371-00-00

Unavailable

24

PLATE, SEAT

4X7-16384-00-00

Unavailable

25

SPRING, CLUTCH BOSS

4X7-16383-01-00

Unavailable

26

PLATE, CLUTCH 1

4X7-16324-10-00

Unavailable

27

RING, CLUTCH BOSS

4X7-16385-00-00

Unavailable

28

PLATE, FRICTION

22U-16321-00-00

Unavailable

29

PLATE, CLUTCH 2

4X7-16325-10-00

Unavailable

30

PLATE, PRESSURE 1

4X7-16351-00-00

Unavailable

31

SPRING (583 CLUTCH)

90501-23391-00

Unavailable

32

SCREW, WITH WASHER(33M)

90159-06092-00

Unavailable

33

WASHER, LOCK (34L)

90215-20231-00

Unavailable

34

NUT (34L)

90170-20327-00

Unavailable
