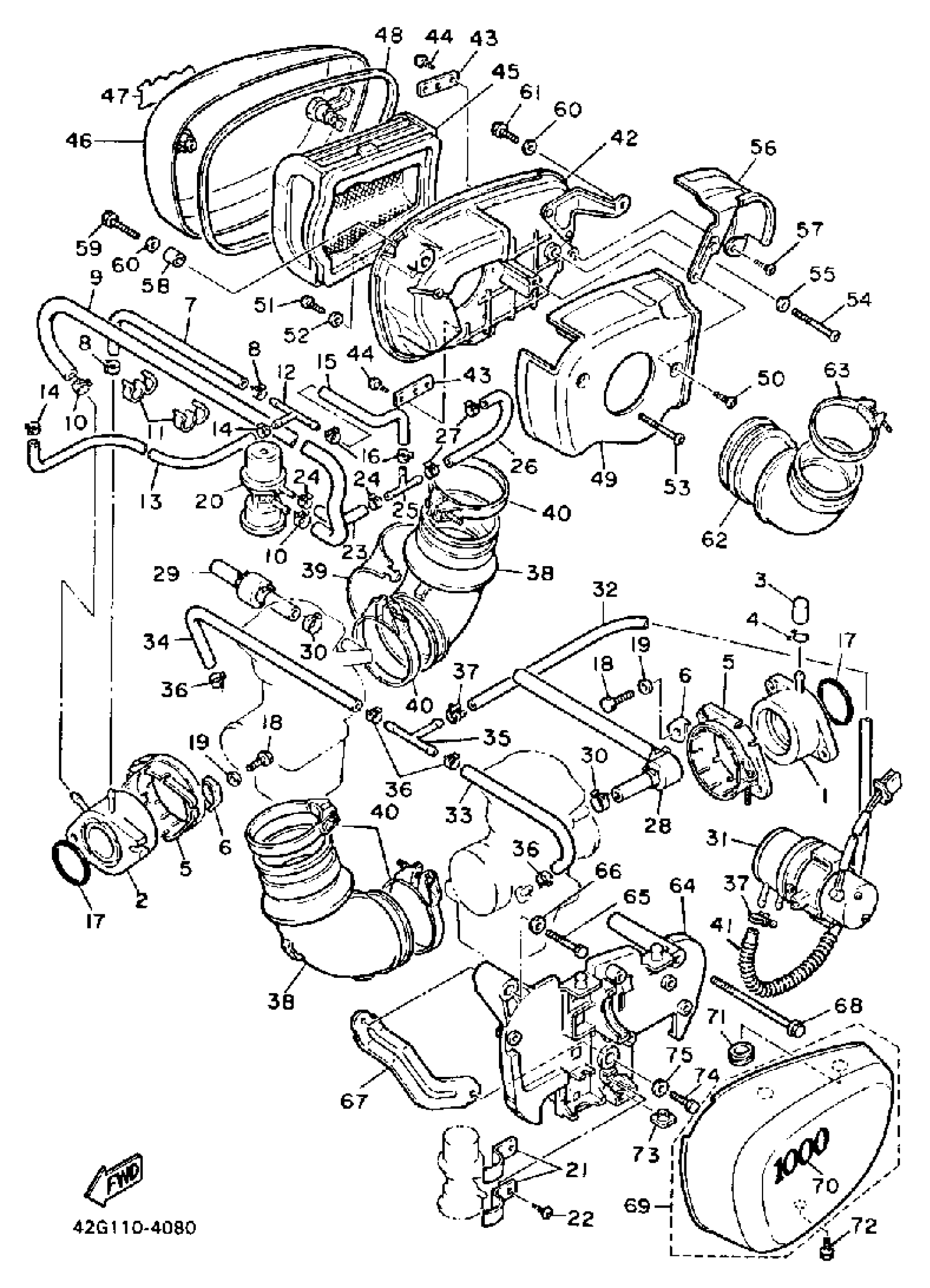

Yamaha XV1000LC (VIRAGO 1000 CA) 1984 AIR CLEANER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

24M-13586-01-00

$129.99

2

JOINT, CARBURETOR 2

24M-13596-01-00

Unavailable

3

PLUG, BLIND

16G-13569-00-00

$7.99

4

CLIP (3G0)

90467-10039-00

$9.49

5

COVER, MANIFOLD

42X-13564-01-00

Unavailable

6

WASHER

42X-13578-00-00

Unavailable

7

HOSE, VACUUM SENSING 2

42X-13544-00-00

Unavailable

8

CLIP(41W)

90467-08092-00

$9.49

9

HOSE, AIR

42X-13543-00-00

Unavailable

10

CLIP(42X)

90467-10091-00

$9.49

11

CLIP

90468-02111-00

Unavailable

12

JOINT, CARBURETOR

42H-13595-01-00

Unavailable

13

HOSE, VACUUM SENSING 3

42H-13532-00-00

Unavailable

14

CLIP(42X)

90467-07093-00

$3.35

15

HOSE, VACUUM SENSING 4

42H-13533-00-00

Unavailable

16

CLIP(41W)

90467-08092-00

$9.49

17

O-RING (10L)

93210-44545-00

Unavailable

18

BOLT, HEXAGON

97017-06020-00

Unavailable

19

WASHER(6TA)

92907-06600-00

Unavailable

20

VALVE, MIX CONTROL

4X7-13541-00-00

Unavailable

21

CLAMP

90462-08137-00

Unavailable

22

SCREW, PAN TAP.2

97707-60514-00

Unavailable

23

HOSE, VACUUM SENSING 1

42H-13542-00-00

Unavailable

24

CLIP(42X)

90467-07093-00

$3.35

25

JOINT, CARBURETOR

4X7-13595-00-00

Unavailable

26

HOSE, VACUUM SENSING 5

42H-13534-00-00

Unavailable

27

CLIP(41W)

90467-08092-00

$9.49

28

PIPE, AIRVENT (42X-14197-00)

42X-14197-01-00

Unavailable

29

PIPE,AIRVENT

3CG-14197-00-00

Unavailable

30

CLIP (5K4)

90467-14057-00

Unavailable

31

FUEL PUMP COMP.

42H-13907-01-00

Unavailable

32

PIPE, FUEL 1

42H-13971-00-00

Unavailable

33

HOSE (L400)

90445-116K9-00

Unavailable

34

HOSE (L400)

90445-116K9-00

Unavailable

35

WAY 3 (10L)

90413-07007-00

Unavailable

36

CLIP(42X)

90467-10091-00

$9.49

37

HOSE CLAMP ASSY

90450-12002-00

Unavailable

38

JOINT, AIR CLEANER 1

10L-14453-02-00

Unavailable

39

COVER, JOINT

10L-14407-00-00

Unavailable

40

CLAMP, HOSE 1

1D6-11387-00-00

Unavailable

41

SPRING,COMPRESSION

90501-100F8-00

Unavailable

42

AIR CLEANER CASE ASSEMBLY

42X-14401-01-00

Unavailable

43

PLATE

42X-14477-00-00

Unavailable

44

SCREW, OVAL HEAD TAPPING

97780-40112-00

Unavailable

45

ELEMENT, AIR CLEANER

42X-14451-00-00

Unavailable

46

CAP, CLEANER CASE 2 (N/NC)

42X-14422-01-00

Unavailable

47

. EMBLEM (L/LC)

42H-1441K-00-00

Unavailable

47

EMBLEM (N/NC)

56W-1442K-00-00

Unavailable

48

SEAL

42X-14452-00-00

Unavailable

49

COVER, CLEANER CASE 1

42X-1441A-00-00

Unavailable

50

SCREW, PAN TAP.2

97707-50508-00

Unavailable

51

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

52

WASHER, PLAIN (646)

92990-05600-00

Unavailable

53

SCREW, PAN

98507-06080-00

Unavailable

54

SCREW, PAN

98507-06050-00

Unavailable

55

WASHER(6TA)

92907-06600-00

Unavailable

56

COVER, CLEANER CASE 2

42X-1441E-00-00

Unavailable

57

SCREW, PAN TAP.2

97707-50508-00

Unavailable

58

COLLAR (1M1)

90387-06553-00

Unavailable

59

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

60

WASHER(6TA)

92907-06200-00

Unavailable

61

BOLT,SOCKET

91317-06012-00

Unavailable

62

PIPE, JOINT

42X-14485-00-00

Unavailable

63

CLAMP, HOSE 1

1D6-11387-00-00

Unavailable

64

PLATE, AIR CLEANER

42X-14663-02-00

Unavailable

65

BOLT, FLANGE

95822-06025-00

Unavailable

66

WASHER(6TA)

92907-06200-00

Unavailable

67

PLATE, CLEANER CASE FITTING

42X-14484-00-00

Unavailable

68

BOLT, SOCKET

91314-06090-00

Unavailable

69

COVER 1 (L/LC)

42H-14603-00-00

Unavailable

69

COVER 1 (N/NC)

42X-14603-00-00

Unavailable

70

. EMBLEM (L/LC)

42H-1441K-00-00

Unavailable

70

. EMBLEM (N/NC)

56W-1441K-00-00

Unavailable

71

GROMMET 654427240000

90480-14074-00

Unavailable

72

BOLT, FLANGE

95817-06014-00

Unavailable

73

PLATE, CLEANER CASE FITTING

12R-14484-01-00

Unavailable

74

BOLT,SOCKET

91317-06035-00

Unavailable

75

WASHER(6TA)

92907-06200-00

Unavailable
