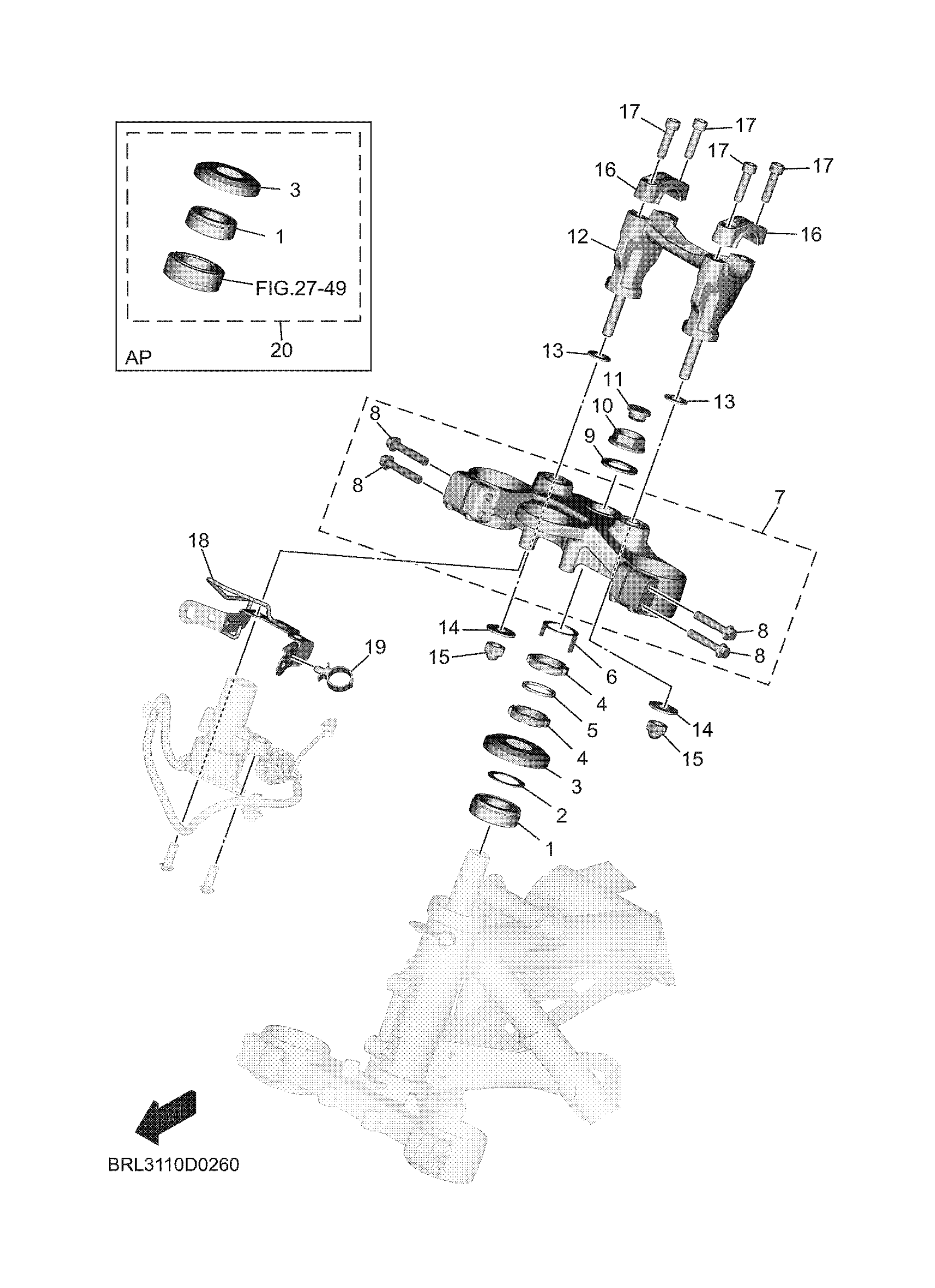

Yamaha XTZ7SY (TENERE 700) BRL31 2025 STEERING Diagram

#

Description
Price

1

BEARING(4ES)

93332-00079-00

$59.36

2

WASHER, PLATE(1FK)

90201-256K6-00

Unavailable

3

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

4

NUT

90179-25004-00

$19.41

5

WASHER, PLATE (26H)

90202-26142-00

$7.52

6

WASHER, SPECIAL

26H-23418-01-00

$11.84

7

HANDLE CROWN COMP.

BRL-23430-00-00

Unavailable

8

BOLT, FLANGE

90105-08134-00

$5.47

9

WASHER, PLATE

90201-22018-00

$3.82

10

NUT

90179-22031-00

Unavailable

11

PLUG

90338-16007-00

$13.36

12

HOLDER, HANDLE LOWER

BAG-F3442-00-00

Unavailable

13

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.67

14

WASHER, PLATE

90201-10043-00

$1.75

15

NUT, CROWN

90176-10003-00

$6.76

16

HOLDER, HANDLE UPPER

BAG-F3441-00-00

Unavailable

17

BOLT, SOCKET

91317-08030-00

Unavailable

18

BRACKET 2

BRL-2334H-00-00

Unavailable

19

CLAMP

90464-21003-00

Unavailable

20

STEERING BEARING KIT

BVW-W000B-00-00

Unavailable
