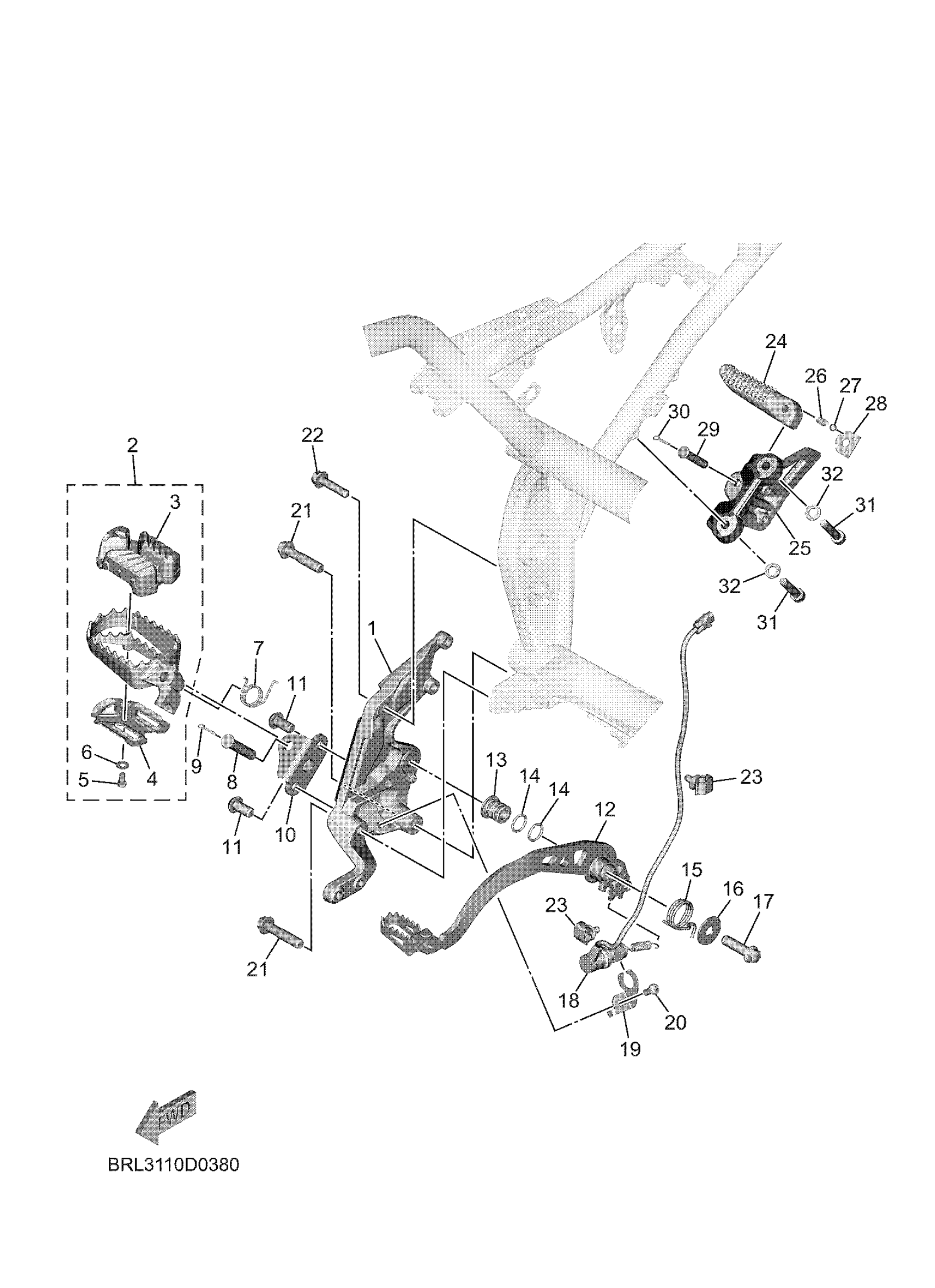

Yamaha XTZ7SY (TENERE 700) BRL31 2025 STAND & FOOTREST 2 Diagram

#

Description
Price

1

BRACKET 3

BW3-F7443-00-00

$240.99

2

FOOTREST ASSY 2

BAG-F7404-00-00

Unavailable

3

. COVER, FOOTREST

BAG-F7413-10-00

Unavailable

4

. BRACKET, FOOTREST 2

BAG-F7425-00-00

Unavailable

5

BOLT

97012-05010-00

$0.60

6

. WASHER, PLAIN

92990-05200-00

Unavailable

7

SPRING, TORSION

90508-20080-00

Unavailable

8

PIN, CLEVIS

91702-10045-00

$5.60

9

PIN, COTTER

91490-25020-00

$3.19

10

BRACKET, FOOTREST

3D7-21447-00-00

Unavailable

11

SCREW

90149-10033-00

$5.60

12

PEDAL, BRAKE

BW3-27200-01-00

Unavailable

13

COLLAR

BMB-27213-00-00

$37.99

14

O-RING (22U)

93210-15566-00

$7.49

15

SPRING, RETURN

5EL-27216-00-00

$6.99

16

WASHER, PLATE

90201-10028-00

Unavailable

17

BOLT, FLANGE

90105-10293-00

Unavailable

18

STOP SWITCH ASSY

BW3-82530-01-00

Unavailable

19

STAY, STOP SWITCH

5PS-2144G-00-00

Unavailable

20

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

21

BOLT, FLANGE(4KG)

95024-10045-00

Unavailable

22

BOLT, FLANGE

90105-08063-00

Unavailable

23

CLAMP

90464-08012-00

Unavailable

24

FOOTREST, REAR 2

B7N-27441-00-00

Unavailable

25

BRACKET 5

BNW-F742L-00-00

Unavailable

26

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

27

BALL

93501-04011-00

Unavailable

28

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

29

PIN, CLEVIS

91702-08040-00

Unavailable

30

PIN, COTTER

91490-25020-00

$3.19

31

BOLT,SOCKET

91314-08040-00

Unavailable

32

.. WASHER, PLATE

92990-08600-00

Unavailable
