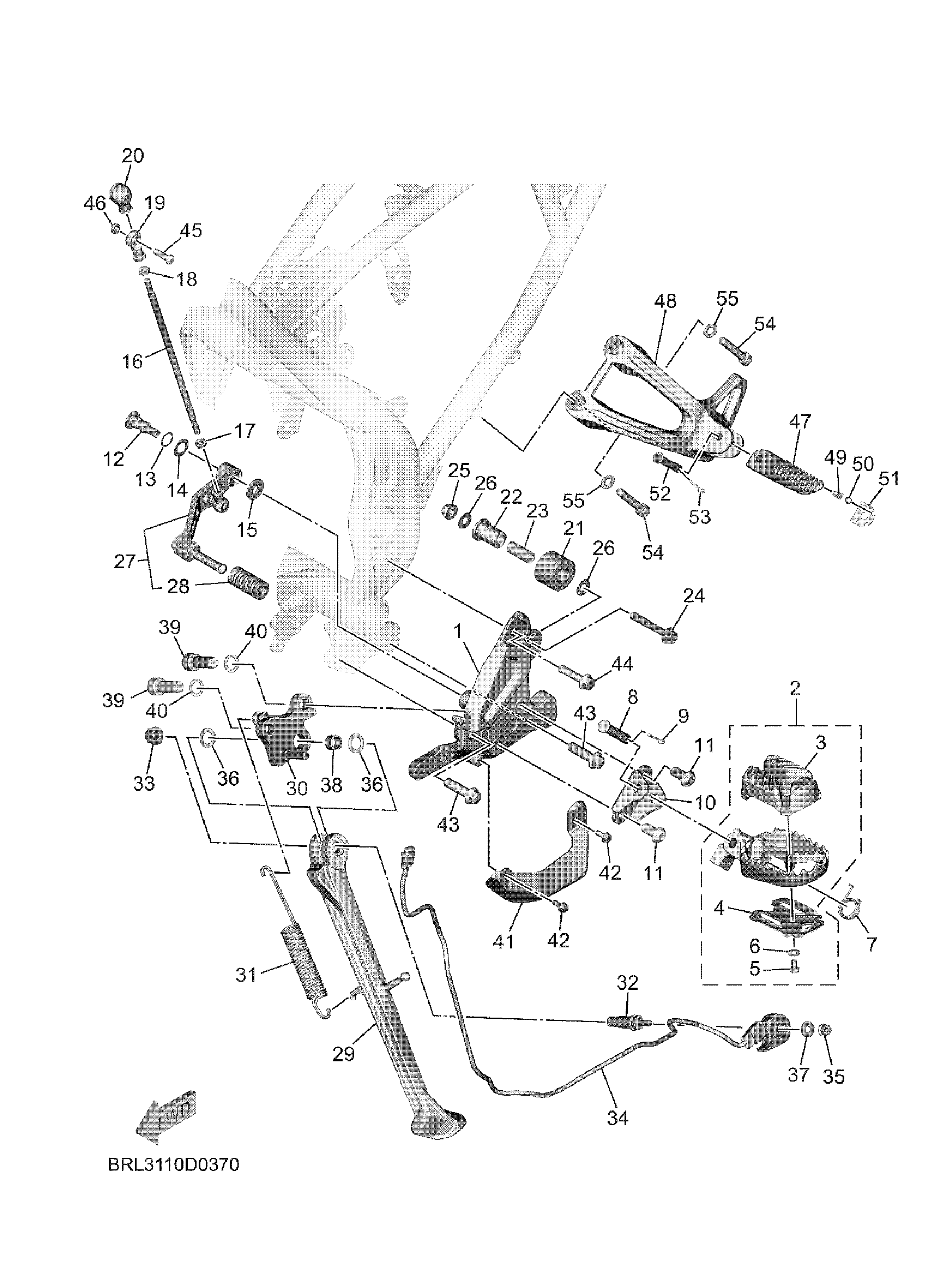

Yamaha XTZ7SY (TENERE 700) BRL31 2025 STAND & FOOTREST Diagram

#

Description
Price

1

BRACKET 2

BRL-F7442-00-00

Unavailable

2

FOOTREST ASSY

BAG-F7400-00-00

Unavailable

3

. COVER, FOOTREST

BAG-F7413-10-00

Unavailable

4

. BRACKET, FOOTREST 2

BAG-F7425-00-00

Unavailable

5

BOLT

97012-05010-00

$0.60

6

. WASHER, PLAIN

92990-05200-00

Unavailable

7

SPRING, TORSION

90508-20061-00

Unavailable

8

PIN, CLEVIS

91702-10045-00

$5.60

9

PIN, COTTER

91490-25020-00

$3.19

10

BRACKET, FOOTREST

3D7-21447-00-00

Unavailable

11

SCREW

90149-10033-00

$5.60

12

BOLT

4BP-27434-11-00

$3.17

13

WASHER, WAVE (17W)

90206-12074-00

$9.49

14

WASHER, PLATE

90201-12051-00

$7.49

15

WASHER, PLATE

90201-08053-00

$5.60

16

ROD, SHIFT

BW3-18115-00-00

Unavailable

17

NUT

90170-06026-00

Unavailable

18

Nut

95314-06700-00

Unavailable

19

JOINT, ROD 1

5VX-18116-00-00

Unavailable

20

COVER, DUST

5VX-18154-00-00

Unavailable

21

TENSIONER

30X-22178-00-00

Unavailable

22

BUSH

10V-22184-00-00

Unavailable

23

COLLAR

90387-08120-00

Unavailable

24

BOLT, FLANGE(4UN)

95814-08050-00

Unavailable

25

NUT, SELF-LOCKING

95602-08200-00

Unavailable

26

WASHER, PLATE(49E)

90201-087H6-00

Unavailable

27

SHIFT PEDAL ASSY

BW3-18110-10-00

Unavailable

28

COVER, SHIFT PEDAL

1WS-18113-00-00

Unavailable

29

STAND, SIDE

BRL-27311-01-00

Unavailable

30

BRACKET, SIDE STAND

BRL-27321-01-00

Unavailable

31

SPRING, SIDE STAND

BAG-27316-00-00

Unavailable

32

BOLT

BRL-27434-01-00

Unavailable

33

NUT, S/L FLANGE

95602-10200-00

Unavailable

34

SWITCH, SIDE STAND

BRL-82566-00-00

Unavailable

35

NUT, U FLANGE

95604-06200-00

Unavailable

36

WASHER, PLATE

90201-12049-00

Unavailable

37

WASHER, PLATE

90201-06120-00

Unavailable

38

COLLAR

90387-12065-00

Unavailable

39

BOLT, HEXAGON SOCKET HEAD

90110-12011-00

Unavailable

40

WASHER, PLATE

90201-12068-00

Unavailable

41

COVER 1

BRL-F7453-10-00

Unavailable

42

BOLT, FLANGE

90105-05025-00

Unavailable

43

BOLT, FLANGE

90105-10485-00

Unavailable

44

BOLT, FLANGE

90105-08063-00

Unavailable

45

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

46

COLLAR

90387-06106-00

Unavailable

47

FOOTREST, REAR 1

B7N-27431-00-00

Unavailable

48

BRACKET 4

BNW-F741L-00-00

Unavailable

49

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

50

BALL

93501-04011-00

Unavailable

51

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

52

PIN, CLEVIS

91702-08040-00

Unavailable

53

PIN, COTTER

91490-25020-00

$3.19

54

BOLT,SOCKET

91314-08040-00

Unavailable

55

.. WASHER, PLATE

92990-08600-00

Unavailable
