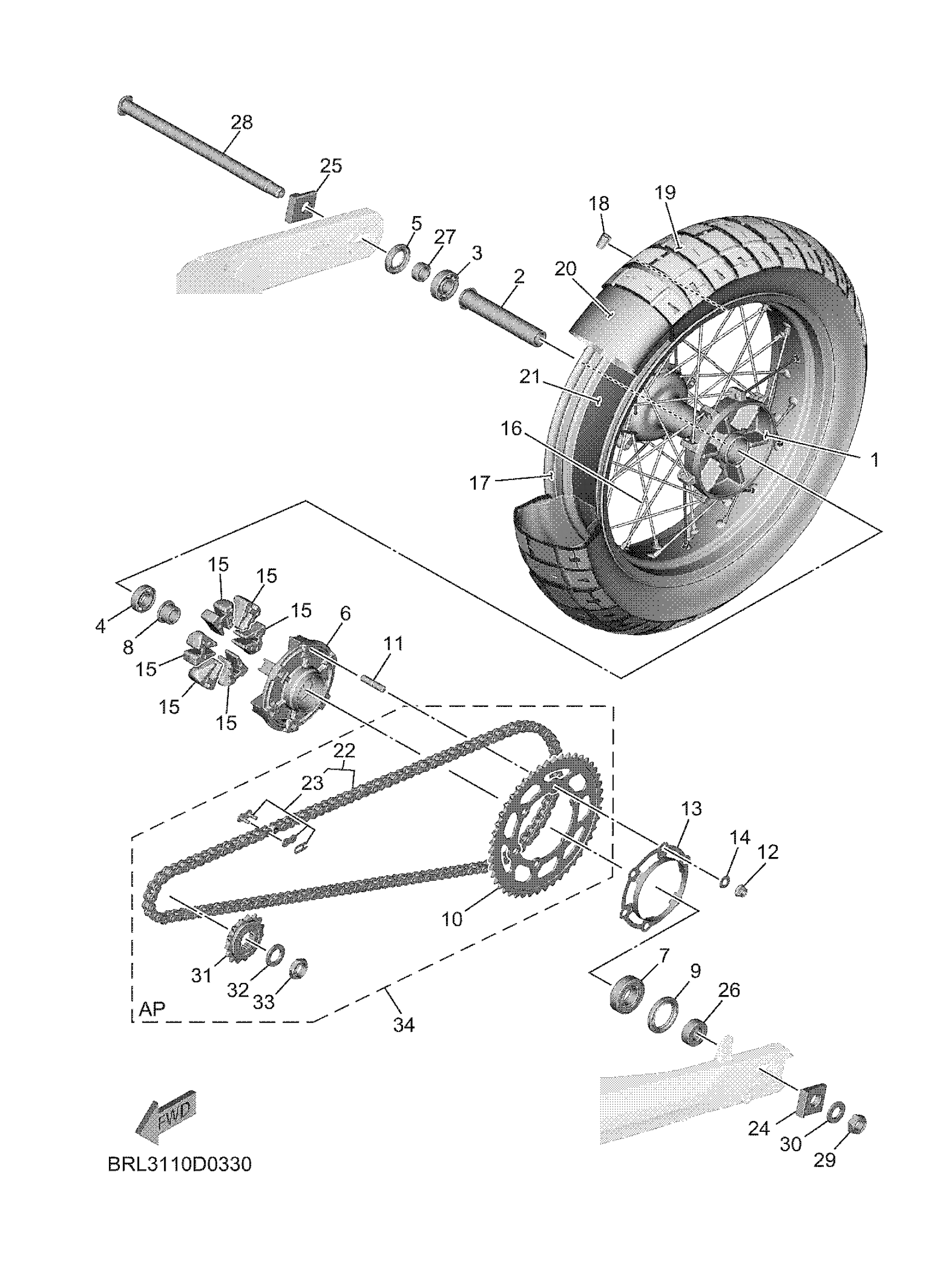

Yamaha XTZ7SY (TENERE 700) BRL31 2025 REAR WHEEL Diagram
#
Description
Price
1
HUB, REAR
BW3-25311-00-00
Unavailable
11
BOLT, STUD
90116-10048-00
Unavailable
16
SPOKE SET, REAR
BW3-F5304-00-00
Unavailable
17
RIM
94440-18003-00
Unavailable
18
BALANCER, WHEEL
BW3-25398-00-00
Unavailable
19
TIRE
94115-18X00-00
Unavailable
20
TUBE
94210-18X00-00
Unavailable
21
BAND, RIM
94315-18X00-00
Unavailable
22
SET, CHAIN
94A40-26122-00
Unavailable
23
JOINT, CHAIN
94682-64021-00
Unavailable
24
PULLER, CHAIN 1
3SP-25388-00-00
Unavailable
25
PULLER, CHAIN 2
1RC-25389-00-00
Unavailable
26
COLLAR
90387-20036-00
Unavailable
27
COLLAR
90387-20035-00
Unavailable
28
SHAFT, PIVOT
4FN-22141-00-00
Unavailable
29
NUT, SELF-LOCKING
90185-18009-00
Unavailable
30
WASHER, PLATE
90201-18013-00
Unavailable
31
SPROCKET, DRIVE
BRL-17460-00-00
Unavailable
32
WASHER, CONICAL SPRING
90208-22002-00
Unavailable
33
NUT
90179-22018-00
Unavailable
34
CHAIN & SPROCKET KIT
BRL-W001A-00-00
Unavailable
