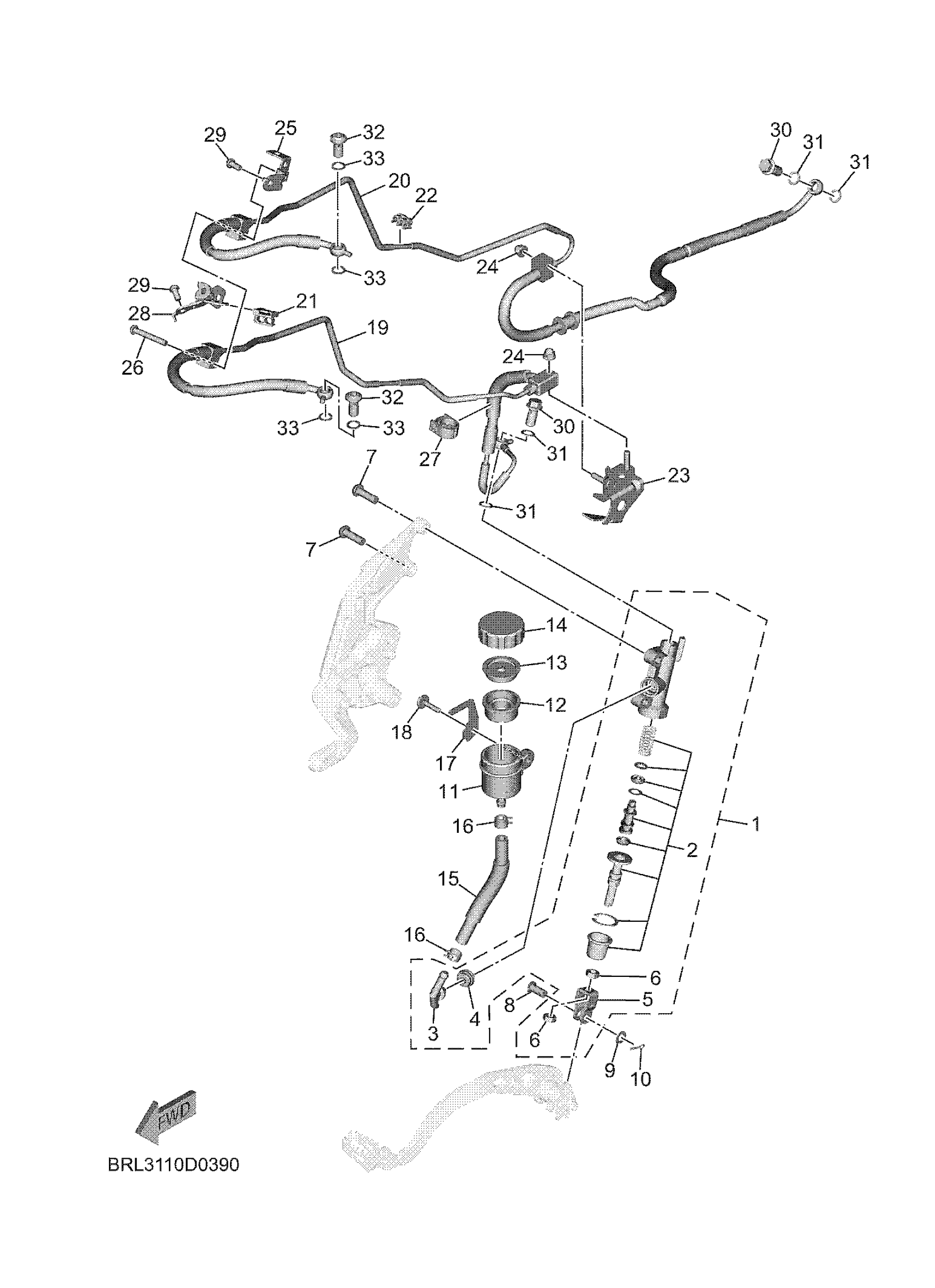

Yamaha XTZ7SY (TENERE 700) BRL31 2025 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDE

4P5-2583V-01-00

$147.99

2

CYLINDER KIT, MASTER

5VX-W0042-51-00

$85.99

3

JOINT

2D1-2582A-01-00

$5.49

4

O-RING

4BP-2585F-01-00

Unavailable

5

JOINT

4BP-27222-02-00

$29.99

6

NUT

90170-08010-00

$8.49

7

BOLT, BUTTON HEAD(3YF)

92014-08025-00

$7.49

8

PIN, CLEVIS

90240-08005-00

$8.49

9

WASHER, PLATE

90201-08070-00

$7.49

10

PIN, COTTER (648)

91490-20015-00

$2.20

11

TANK, RESERVOIR

2D1-25894-00-00

$7.99

12

DIAPHRAGM, RESERVOIR

5SL-25854-00-00

$20.99

13

BUSH,DIAPHRAGM

5SL-25855-00-00

$7.99

14

CAP, RESERVOIR

5SL-25852-00-00

$27.99

15

HOSE, RESERVOIR

BW3-25895-00-00

Unavailable

16

CLIP

90467-120A3-00

Unavailable

17

COVER, RESERVOIR T

BRL-25888-00-00

Unavailable

18

SCREW, WITH WASHER (537)

90159-05011-00

Unavailable

19

HOSE, BRAKE

BRL-2584D-00-00

Unavailable

20

BRAKE HOSE ASSY 5

BRL-2584E-00-00

Unavailable

21

CLAMP

90464-07014-00

Unavailable

22

CLAMP

90464-04001-00

Unavailable

23

HOLDER, BRAKE HOSE 5

BW3-2588F-00-00

Unavailable

24

NUT, CROWN(2GM)

90176-06065-00

Unavailable

25

BRACKET 1

1XB-2175T-00-00

Unavailable

26

BOLT, BUTTON HEAD

92012-06040-00

Unavailable

27

CLAMP

90464-18004-00

Unavailable

28

BRACKET 2

BRL-2175U-00-00

Unavailable

29

BOLT,HEX. SOCKET BUTTON

90111-06103-00

Unavailable

30

BOLT, UNION

90401-10020-00

Unavailable

31

GASKET

90430-10005-00

Unavailable

32

BOLT, UNION

90401-10172-00

Unavailable

33

GASKET

90430-10005-00

Unavailable
