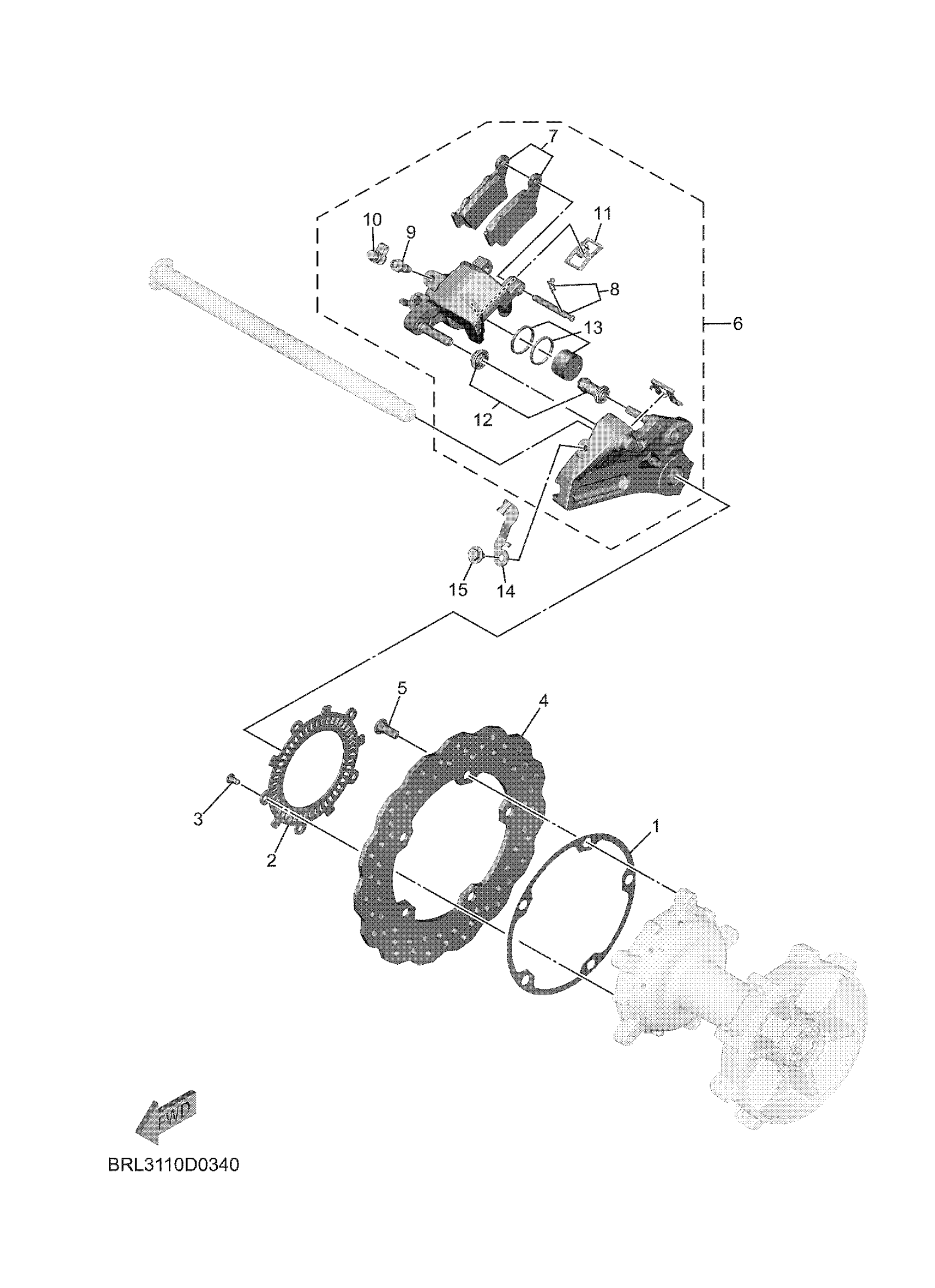

Yamaha XTZ7SY (TENERE 700) BRL31 2025 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PLATE, FITTING

BW3-2518A-01-00

$26.99

2

ROTOR, SENSOR

BW3-F517G-00-00

Unavailable

3

SCREW

90149-05030-00

$8.49

4

DISK, REAR BRAKE 2

BW3-2582W-01-00

$139.99

5

BOLT

90109-08046-00

$5.60

6

CALIPER ASSY, REAR

BW3-F580W-10-00

$223.99

7

BRAKE PAD KIT 2

BW3-F5806-00-00

Unavailable

8

PIN, PAD

5VK-F5924-10-00

$25.99

9

SCREW, BLEED

56P-F5824-00-00

$47.99

10

. CAP

4CU-F5825-00-00

Unavailable

11

SUPPORT, PAD

BNW-F5919-20-00

Unavailable

12

BOOT, CALIPER

BNW-F5917-00-00

Unavailable

13

CALIPER PISTON ASSY

BW3-F5802-10-00

Unavailable

14

HOLDER, BRACKET

BAU-2538L-00-00

Unavailable

15

BOLT, WITH WASHER(55K)

90119-06117-00

$4.29
