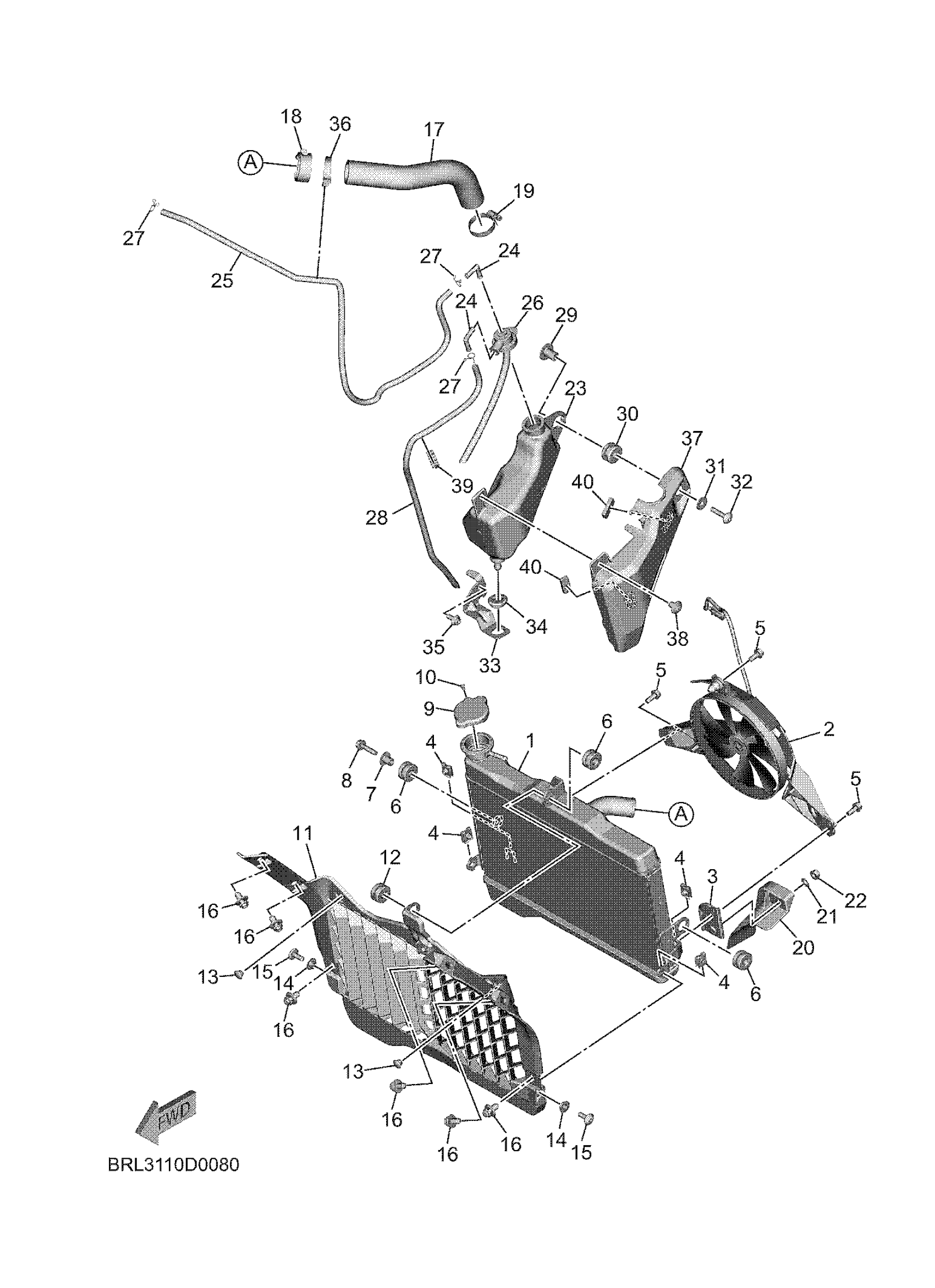

Yamaha XTZ7SY (TENERE 700) BRL31 2025 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR COMP

BW3-12461-00-00

$273.99

2

BLOWER ASSY

BW3-12405-00-00

Unavailable

3

BRACKET, HORN

BW3-21343-00-00

Unavailable

4

NUT 1

1WS-12671-00-00

$3.22

5

BOLT, BLOWER HOLDING

2S3-12675-00-00

$6.99

6

GROMMET (29L)

90480-15363-00

$8.49

7

COLLAR 437216330000

90387-07391-00

Unavailable

8

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

9

CAP, RADIATOR

B67-12462-11-00

Unavailable

10

BOLT, SOCKET

91317-03006-00

$9.49

11

PROTECTOR

BRL-12498-00-00

Unavailable

12

GROMMET (29L)

90480-15363-00

$8.49

13

PLUG 288833190000

90338-07043-00

$8.49

14

COLLAR

90387-06X71-00

$5.60

15

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$3.18

16

RIVET

90269-08010-00

Unavailable

17

HOSE 3

BW3-12578-00-00

Unavailable

18

CLIP

90467-290A0-00

Unavailable

19

HOSE CLAMP ASSY

90450-35001-00

Unavailable

20

COVER 1

BRL-1246A-00-00

Unavailable

21

. COLLAR

90387-06M31-00

Unavailable

22

NUT,SELF-LOCKING

95607-06200-00

Unavailable

23

TANK, RECOVERY

BMB-21871-00-00

Unavailable

24

ELBOW

26H-21828-00-00

Unavailable

25

HOSE

90445-08854-00

Unavailable

26

CAP

2C0-21875-00-00

Unavailable

27

CLIP (16G)

90467-08021-00

Unavailable

28

HOSE

90445-08852-00

Unavailable

29

COLLAR

90387-06236-00

Unavailable

30

GROMMET

90480-18411-00

Unavailable

31

WASHER, PLATE

90201-06029-00

Unavailable

32

BOLT

90111-06068-00

Unavailable

33

BRACKET, RECOVERY TANK

BW3-21873-00-00

Unavailable

34

GROMMET(4BH)

90480-01559-00

Unavailable

35

BOLT, HEXAGON SOCKET HEAD

90110-06341-00

Unavailable

36

CLAMP(6U0)

90464-07M40-00

Unavailable

37

COVER

BMB-2172W-00-00

Unavailable

38

RIVET

90269-08010-00

Unavailable

39

CLAMP

90464-06008-00

Unavailable

40

DAMPER, PLATE

90520-05018-00

Unavailable
