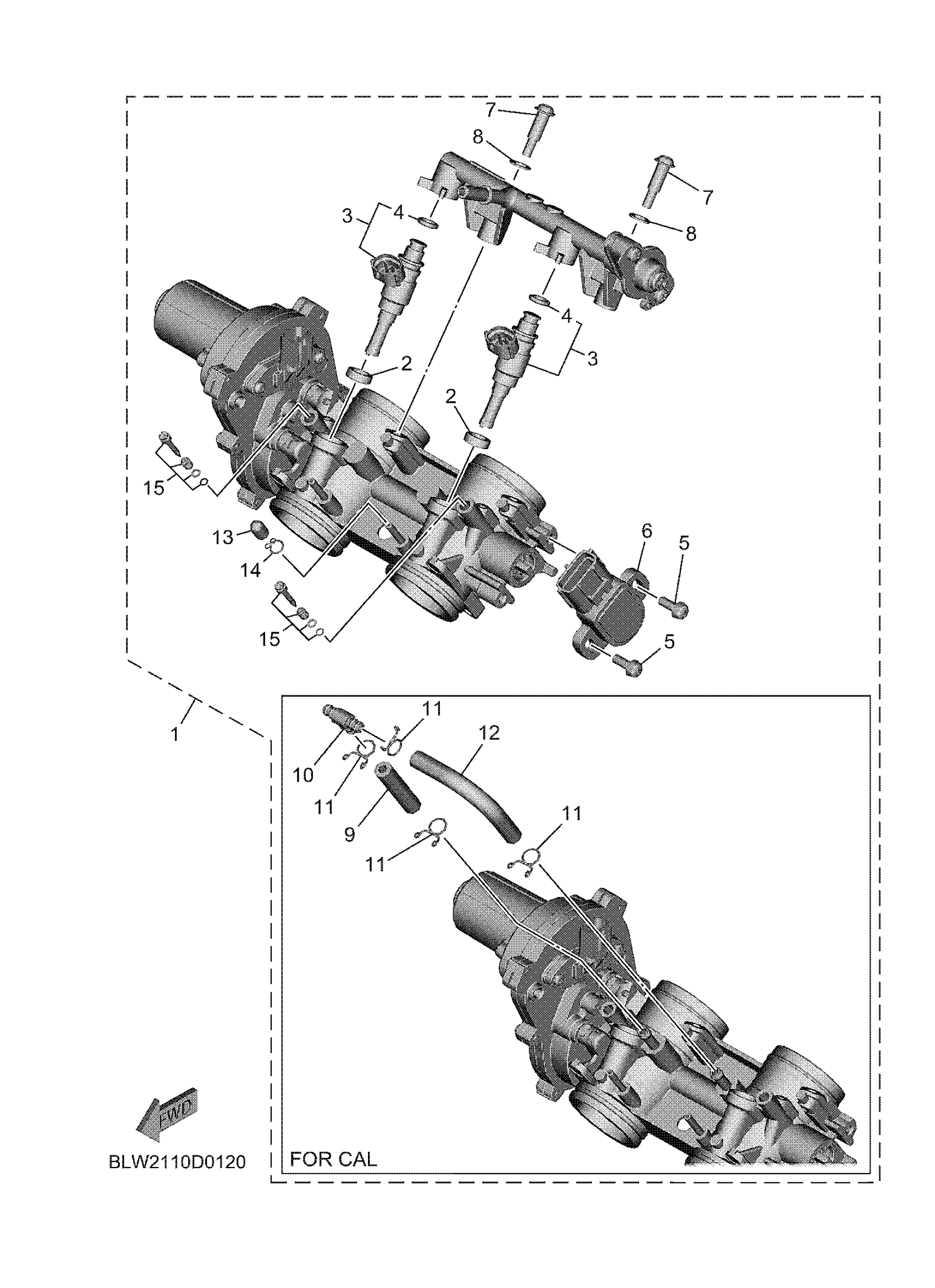

Yamaha XTZ7SY (TENERE 700) BRL31 2025 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

BLW-13750-00-00

$889.51

2

GASKET, MANIFOLD

8FP-13556-00-00

$11.73

3

INJECTOR

1WS-13761-00-00

Unavailable

4

O-RING

5PS-14147-00-00

$8.68

5

SCREW

8CC-14216-10-00

$6.68

6

THROTTLE SENSOR ASSY

B7M-85885-01-00

$108.15

7

BOLT 1

14B-13573-00-00

$4.48

8

GASKET

363-14198-00-00

$9.49

9

PIPE

14B-14466-00-00

Unavailable

10

WAY 3

90413-06031-00

$7.97

11

CLIP

90467-090A2-00

$2.33

12

PIPE

1WS-14465-00-00

$32.85

13

CAP

895-14169-00-00

$3.73

14

CLIP, PIPE

8A7-14139-00-00

$6.34

15

PILOT SCREW SET

2C0-14105-00-00

$29.64
