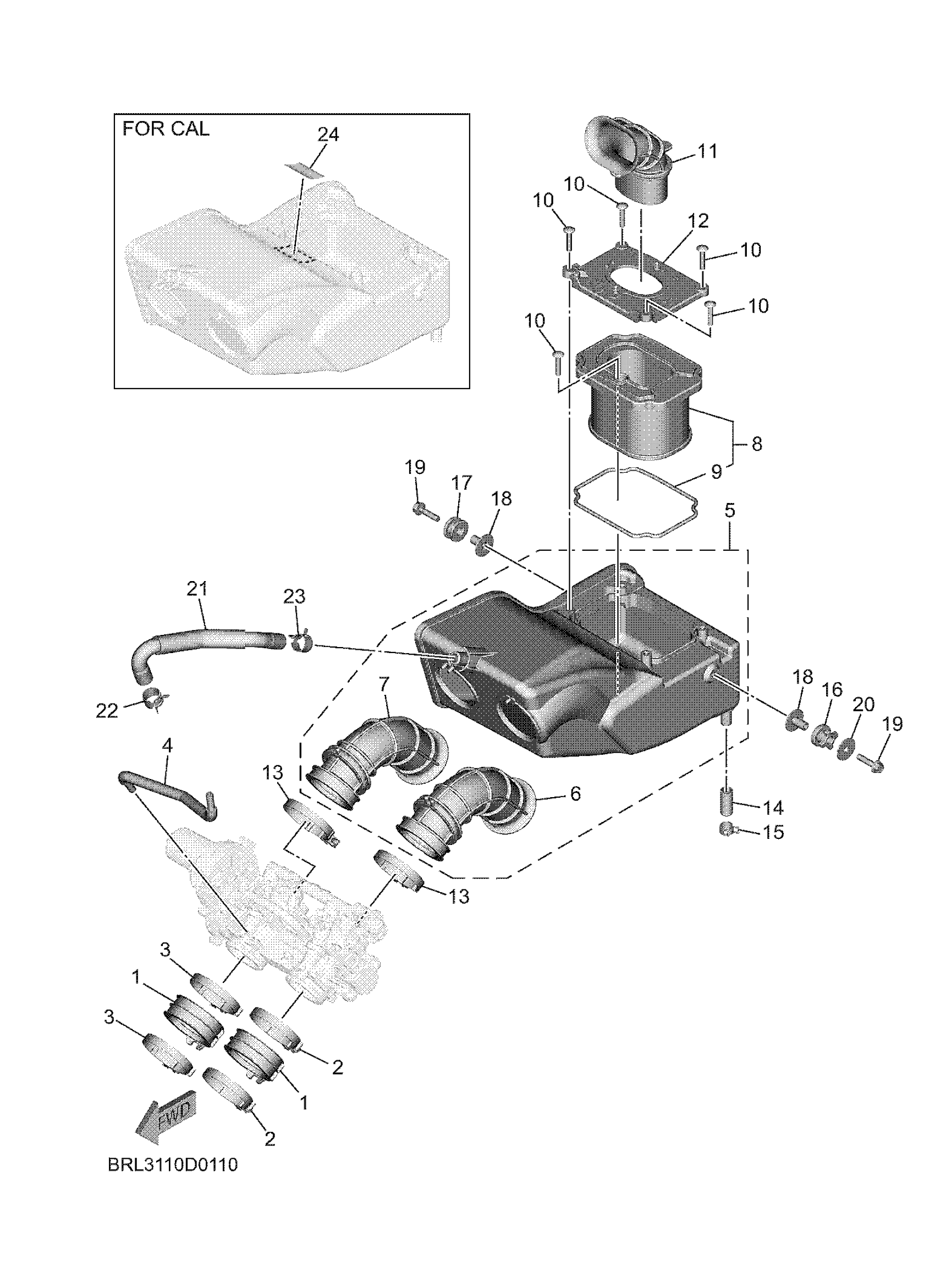

Yamaha XTZ7SY (TENERE 700) BRL31 2025 INTAKE Diagram

#

Description
Price

1

JOINT, INTAKE 1

1WS-13635-00-00

Unavailable

2

HOSE CLAMP ASSY

90450-56011-00

$13.99

3

HOSE CLAMP ASSY

90450-56012-00

$33.99

4

HOSE, VACUUM SENSI

BRL-13542-00-00

Unavailable

5

AIR CLEANER CASE A

BW3-14401-02-00

Unavailable

6

FUNNEL, AIR

BW3-14469-01-00

Unavailable

7

FUNNEL 2

BW3-1446C-01-00

$28.99

8

ELEMENT ASSY, AIR

1WS-14450-00-00

$41.99

9

SEAL

1WS-14452-00-00

Unavailable

10

SCREW, ROUND TAPPING

90160-05013-00

$8.49

11

DUCT

BRL-14437-00-00

Unavailable

12

PLATE,ELEMENT FITT

BRL-14468-00-00

$5.60

13

HOSE CLAMP ASSY

90450-56011-00

$13.99

14

PIPE, DRAIN

1WS-1443E-00-00

$4.32

15

CLIP(3YX)

90467-13133-00

$8.49

16

GROMMET

90480-15001-00

Unavailable

17

GROMMET

90480-15014-00

Unavailable

18

COLLAR

90387-06300-00

Unavailable

19

BOLT, FLANGE

95817-06025-00

Unavailable

20

WASHER, PLATE(1JK)

90201-064K6-00

Unavailable

21

PIPE, BREATHER 1

BRL-11166-00-00

Unavailable

22

CLIP(3TB)

90467-17128-00

Unavailable

23

CLIP

90467-160A2-00

Unavailable

24

PLATE, ROUTING

34B-21684-01-00

Unavailable
