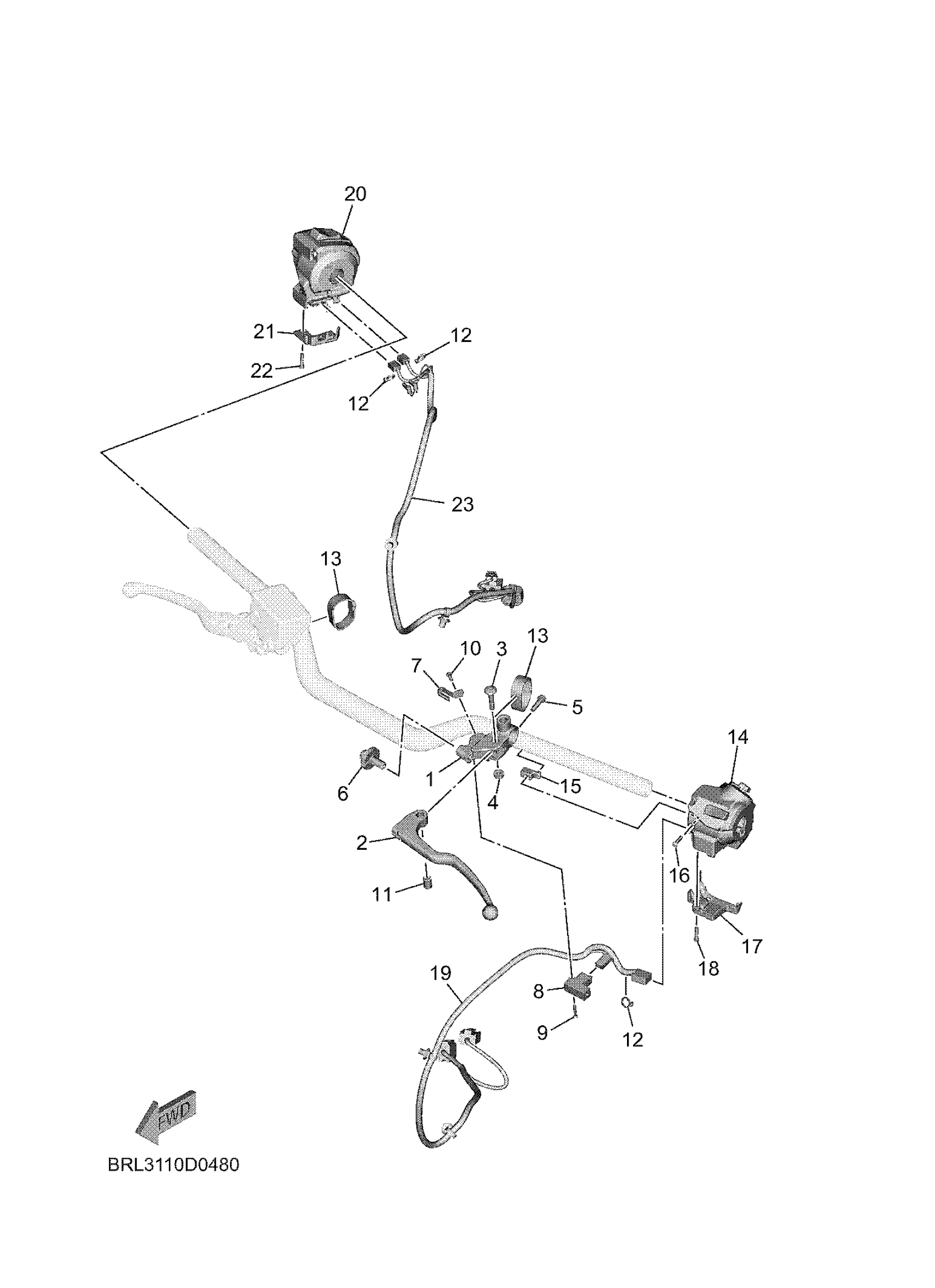

Yamaha XTZ7SY (TENERE 700) BRL31 2025 HANDLE SWITCH & LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1B3-82911-00-00

$40.99

2

LEVER 1

B90-83912-00-00

$31.99

3

BOLT, LEVER

2C0-83945-00-00

Unavailable

4

NUT,SELF-LOCKING

95607-06200-00

$12.49

5

. BOLT, FLANGE

95027-06020-00

Unavailable

6

BOLT, CABLE ADJUSTING

5LV-83951-00-00

$58.99

7

PLATE, SPRING

4XV-83929-00-00

$11.99

8

SWITCH

3YX-82917-01-00

$43.99

9

SCREW, FLAT HEAD

98702-03020-00

$2.12

10

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.50

11

COLLAR, LEVER 1

5JJ-83913-00-00

$8.99

12

CLAMP

90465-10098-00

Unavailable

13

CLAMP

90464-30810-00

Unavailable

14

SW., HANDLE LH

BLW-8291L-00-00

$329.99

15

CLIP

BME-83525-00-00

$9.49

16

SCREW, PAN HEAD

98517-04016-00

Unavailable

17

COVER 1

BME-8246B-00-00

Unavailable

18

SCREW, PAN HEAD

98507-04018-00

Unavailable

19

WIRE, SUB-LEAD

BRL-82318-00-00

Unavailable

20

SW., HANDLE RH

BME-8291R-00-00

Unavailable

21

COVER 2

BME-8249A-00-00

Unavailable

22

SCREW, PAN HEAD

98507-04018-00

Unavailable

23

WIRE, SUB-LEAD

BRL-82319-00-00

Unavailable
