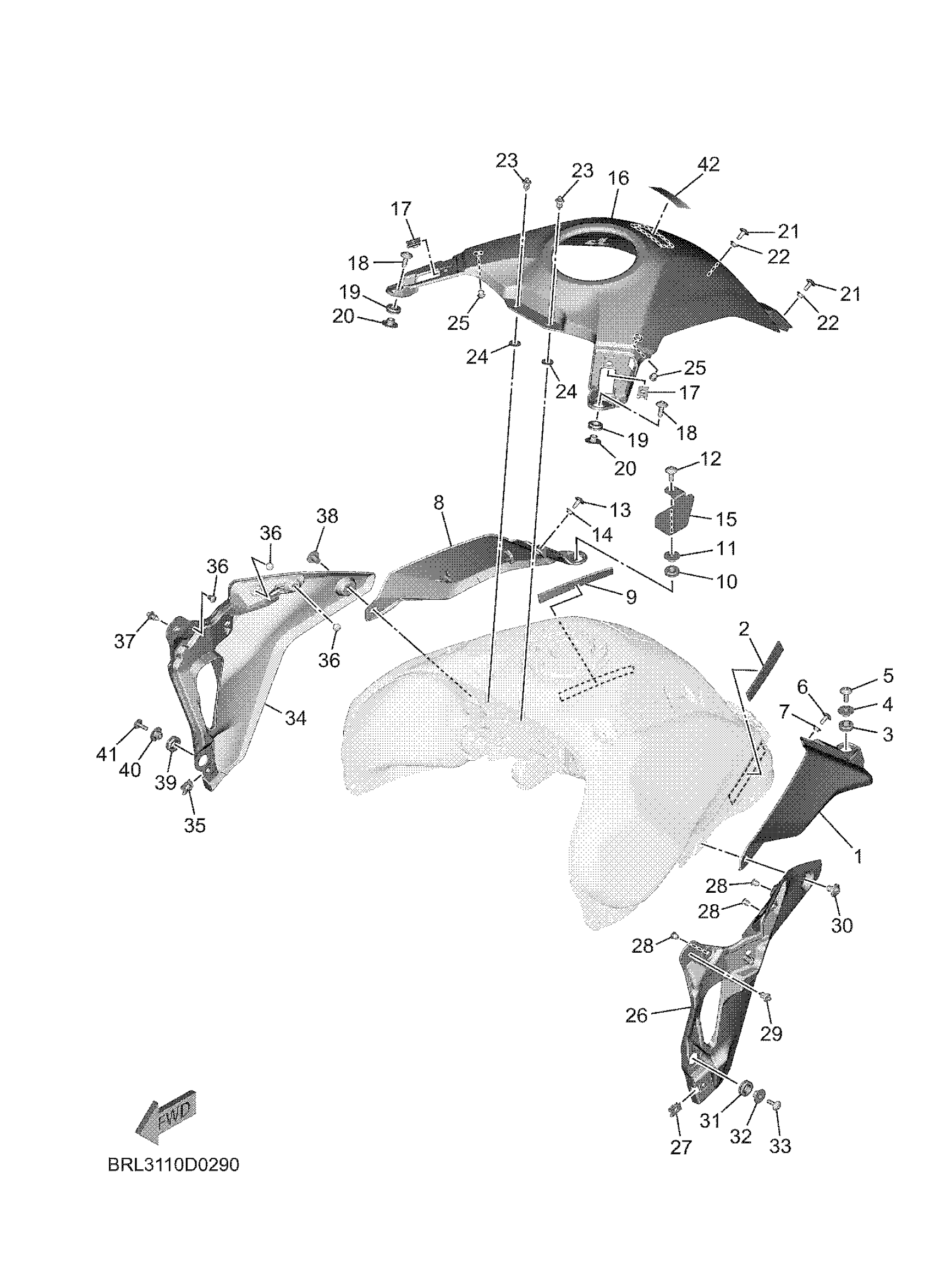

Yamaha XTZ7SY (TENERE 700) BRL31 2025 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, SIDE 1

BRL-24129-00-P0

$120.99

2

DAMPER, PLATE

90520-03023-00

$0.90

3

GROMMET

90480-13032-00

$3.28

4

COLLAR

90387-06089-00

$8.49

5

SCREW

90149-06105-00

$5.60

6

BOLT

90111-05002-00

$7.49

7

COLLAR

90387-05035-00

$7.49

8

COVER, SIDE 2

BRL-24139-00-P0

$120.99

9

DAMPER, PLATE

90520-03023-00

$0.90

10

GROMMET

90480-13032-00

$3.28

11

COLLAR

90387-06089-00

$8.49

12

SCREW

90149-06105-00

$5.60

13

BOLT

90111-05002-00

$7.49

14

COLLAR

90387-05035-00

$7.49

15

PLATE

BRL-2413X-00-00

$13.99

16

COVER, TANK

BRL-241B1-00-P0

Unavailable

17

NUT, SPRING

90183-060A6-00

Unavailable

18

SCREW

90149-06105-00

$5.60

19

GROMMET

90480-13036-00

Unavailable

20

COLLAR

90387-06089-00

$8.49

21

BOLT

90111-05002-00

$7.49

22

COLLAR

90387-05035-00

$7.49

23

RIVET

90269-06008-00

Unavailable

24

DAMPER

5SL-84753-00-00

Unavailable

25

DAMPER, SIDE COVER

1J7-21717-00-00

Unavailable

26

COVER 2

BRL-28229-00-00

Unavailable

27

NUT, SPRING

90183-060A6-00

Unavailable

28

PLUG(1NL)

90338-07180-00

Unavailable

29

RIVET

90269-06008-00

Unavailable

30

RIVET

90269-08010-00

Unavailable

31

GROMMET (1W1)

90480-17213-00

Unavailable

32

COLLAR

90387-06146-00

Unavailable

33

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

34

COVER 3

BRL-28239-00-00

Unavailable

35

NUT, SPRING

90183-060A6-00

Unavailable

36

PLUG(1NL)

90338-07180-00

Unavailable

37

RIVET

90269-06008-00

Unavailable

38

RIVET

90269-08010-00

Unavailable

39

GROMMET (1W1)

90480-17213-00

Unavailable

40

COLLAR

90387-06146-00

Unavailable

41

BOLT,HEX. SOCKET BUTTON

90111-05021-00

Unavailable

42

LABEL, CAUTION

BLW-2118K-00-00

Unavailable
