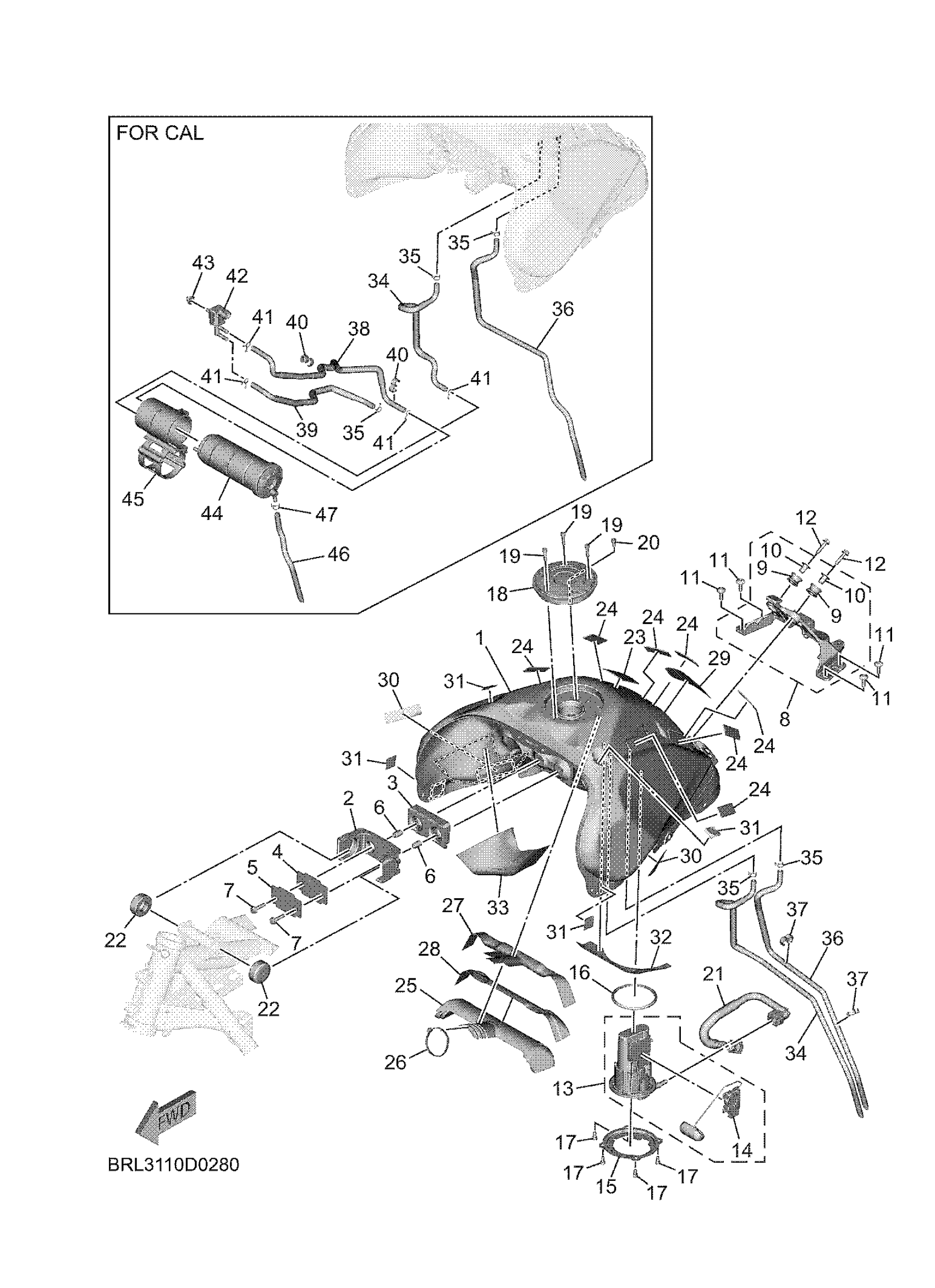

Yamaha XTZ7SY (TENERE 700) BRL31 2025 FUEL TANK Diagram
#
3
DAMPER, LOCATING 1
BW3-24181-00-00
Unavailable
4
DAMPER, LOCATING 2
BW3-24182-00-00
Unavailable
5
WASHER, SPECIAL
BW3-24186-00-00
Unavailable
7
BOLT, FLANGE
95817-06025-00
Unavailable
8
TANK BRACKET ASSY
BRL-24105-00-00
Unavailable
9
GROMMET
90480-18018-00
Unavailable
12
BOLT, FLANGE
95817-06025-00
Unavailable
15
BRACKET, FUEL PUMP
BLW-24491-00-00
Unavailable
16
O-RING
1RC-24486-00-00
Unavailable
17
BOLT
91312-05010-00
Unavailable
18
CAP ASSY
1WS-24602-00-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
20
BOLT
91312-05010-00
Unavailable
21
PIPE, FUEL 1
BRL-13971-00-00
Unavailable
22
DAMPER, LOCATING 1
3TB-24181-00-00
Unavailable
23
DAMPER
5UM-21717-E0-00
Unavailable
24
DAMPER 2
1C3-2214G-00-00
Unavailable
25
DAMPER, LOCATING 4
BW3-24184-00-00
Unavailable
26
CLAMP
90464-65001-00
Unavailable
27
PROTECTOR
BW3-24595-00-00
Unavailable
28
PROTECTOR
BW3-24595-10-00
Unavailable
29
PROTECTOR, FUEL TANK
BW3-24141-00-00
Unavailable
30
SEAL
BRL-2414G-00-00
Unavailable
31
SEAL 2
BRL-2414E-00-00
Unavailable
32
PROTECTOR, FUEL TA
BEH-24141-00-00
Unavailable
33
PROTECTOR, FUEL TANK
BRL-24141-00-00
Unavailable
34
PIPE 10
BRL-24321-00-00
Unavailable
35
CLIP
90467-090A2-00
Unavailable
36
PIPE, OVERFLOW
BRL-24318-00-00
Unavailable
38
PIPE 15
BRL-243A1-00-00
Unavailable
39
PIPE 16
BRL-243A2-00-00
Unavailable
40
CLAMP(6M7)
90464-09M31-00
Unavailable
41
CLIP
90467-090A2-00
Unavailable
42
SOLENOID VALVE ASSY
BG4-86120-00-00
Unavailable
43
NUT, CROWN
90176-06017-00
Unavailable
44
CANISTER ASSY
BW3-F4170-00-00
Unavailable
45
DAMPER, LOCATING 2
2RC-24182-00-00
Unavailable
46
PIPE 13
BW3-24324-00-00
Unavailable
47
CLIP
90467-090A2-00
Unavailable
