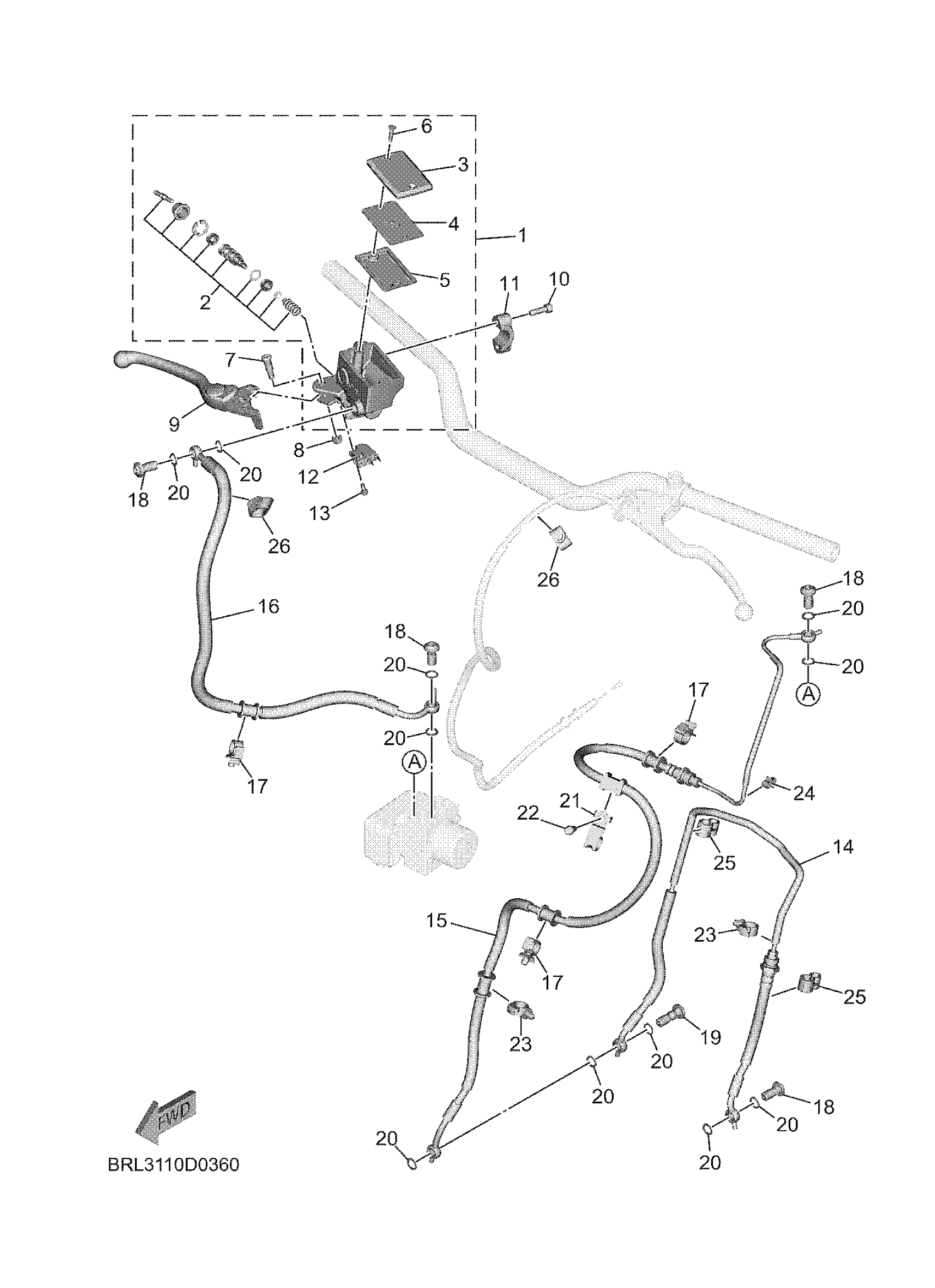

Yamaha XTZ7SY (TENERE 700) BRL31 2025 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

2B0-2580A-00-00

$149.99

2

CYLINDER KIT, MASTER

2D1-25807-00-00

$69.99

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$16.49

5

GASKET, DIAPHRAGM

20S-25854-00-00

$28.99

6

SCREW

5VS-2589H-00-00

$4.11

7

BOLT, LEVER

5VS-2589F-00-00

$14.49

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER 2

BNW-83922-10-00

$87.99

10

BOLT

5VS-26332-00-00

$4.42

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$36.99

12

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$31.99

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

HOSE, BRAKE 1

BW3-25872-01-00

$132.99

15

HOSE, BRAKE 2

BW3-25873-11-00

$125.99

16

HOSE, BRAKE 3

BW3-25874-01-00

Unavailable

17

CLAMP

90464-14013-00

Unavailable

18

BOLT, UNION

90401-10172-00

Unavailable

19

BOLT, UNION

90401-10042-00

Unavailable

20

GASKET

90430-10005-00

Unavailable

21

HOLDER, BRAKE HOSE 2

BW3-25876-10-00

Unavailable

22

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

23

CLAMP

90464-18002-00

Unavailable

24

CLAMP(4BD)

90464-48174-00

Unavailable

25

CLAMP(4GL)

90464-10233-00

Unavailable

26

CLAMP

90464-20816-00

Unavailable
