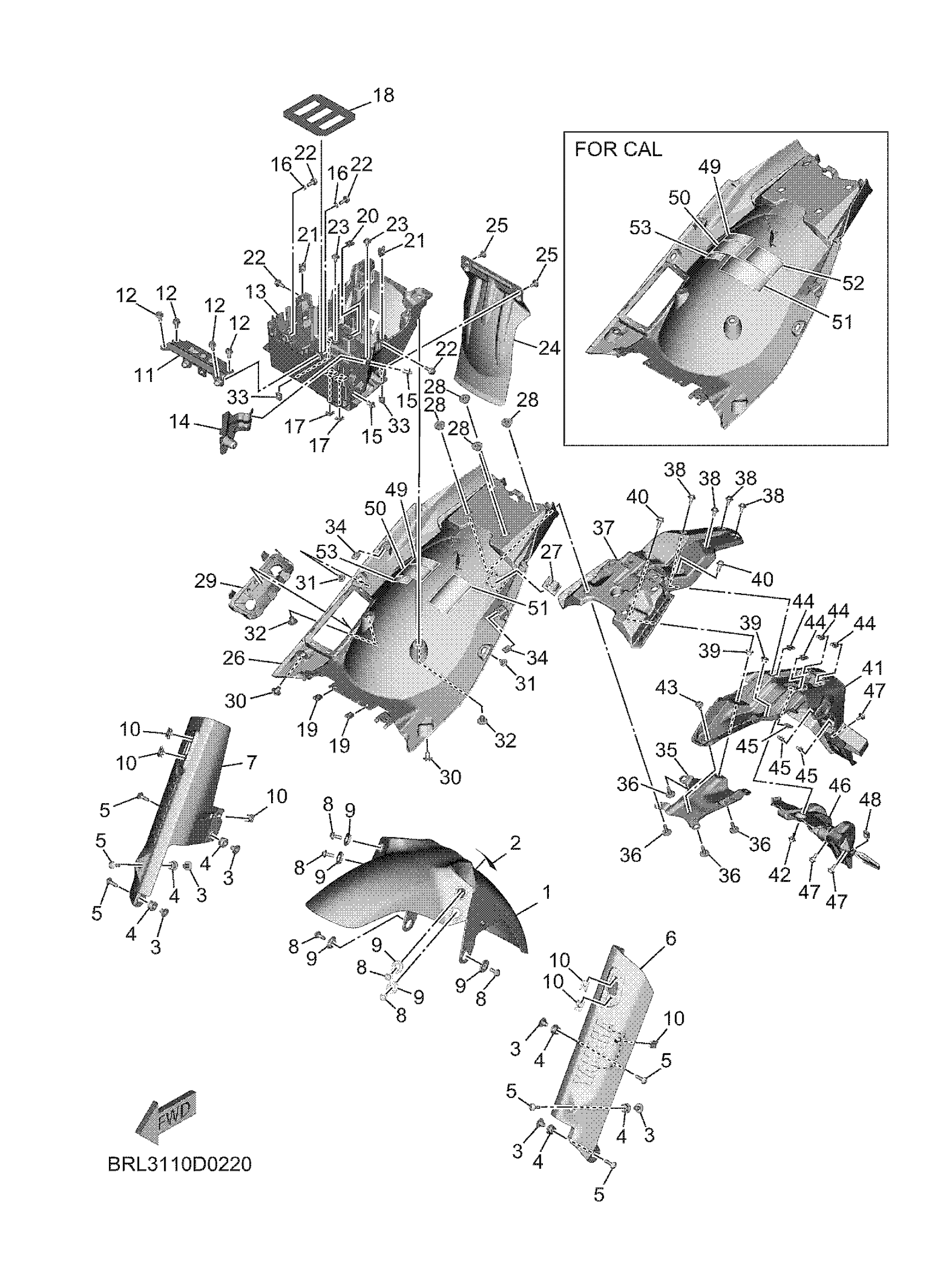

Yamaha XTZ7SY (TENERE 700) BRL31 2025 FENDER Diagram
#
13
BOX, BATTERY 1
BRL-8212B-00-00
Unavailable
16
COLLAR
90387-07015-00
Unavailable
17
NUT, SPRING(47R)
90183-04039-00
Unavailable
18
DAMPER 2
BRL-21639-00-00
Unavailable
19
NUT, SPRING
90183-050A6-00
Unavailable
20
NUT, SPRING
90183-050A6-00
Unavailable
22
BOLT, FLANGE
95812-06014-00
Unavailable
23
SCREW
90149-05042-00
Unavailable
24
GUARD, FLAP
BW3-F1642-00-00
Unavailable
25
SCREW
90149-05045-00
Unavailable
26
GUARD, MUD
BRL-21629-00-00
Unavailable
27
CLAMP(4FM)
90464-13185-00
Unavailable
28
COLLAR
90387-08073-00
Unavailable
29
SEAL
BRL-21669-00-00
Unavailable
30
RIVET
90269-08010-00
Unavailable
31
SCREW
90149-05042-00
Unavailable
32
RIVET
90269-08010-00
Unavailable
33
NUT, SPRING
90183-050A6-00
Unavailable
34
NUT, SPRING
90183-050A6-00
Unavailable
35
REINF., REAR FENDER
BW3-21671-00-00
Unavailable
36
BOLT, WITH WASHER
90119-06179-00
Unavailable
37
STAY, FENDER 1
BMB-21613-00-00
Unavailable
38
SCREW
90149-05042-00
Unavailable
39
COLLAR
90387-06359-00
Unavailable
40
BOLT, HEXAGON SOCKET HEAD
90110-06341-00
Unavailable
41
BRACKET, LICENSE
BMB-21685-00-00
Unavailable
42
SCREW
90149-05042-00
Unavailable
43
SCREW
90149-05042-00
Unavailable
44
NUT, SPRING
90183-050A6-00
Unavailable
45
NUT, SPRING
90183-050A6-00
Unavailable
46
COVER, REAR FENDER 1
BMB-2163A-00-00
Unavailable
47
SCREW
90149-05042-00
Unavailable
48
NUT, SPRING
90183-050A6-00
Unavailable
49
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
50
LABEL, TIRE
BAU-21668-00-00
Unavailable
51
LABEL, NOTICE 1
BAG-F815P-00-00
Unavailable
52
PLATE, ROUTING 2
BAT-21686-00-00
Unavailable
53
LABEL, CAUTION
3SA-24877-A1-00
Unavailable
