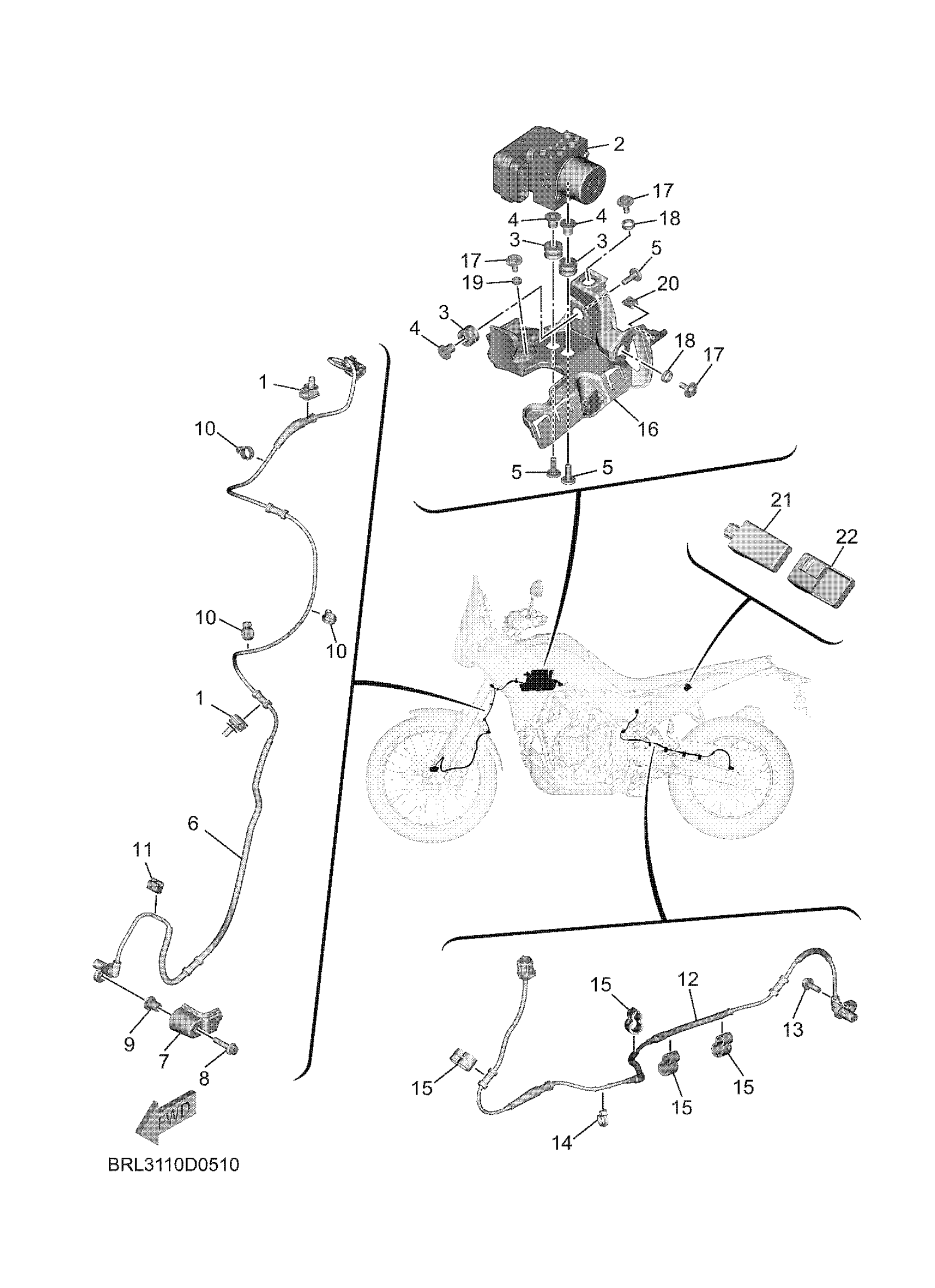

Yamaha XTZ7SY (TENERE 700) BRL31 2025 ELECTRICAL 3 Diagram

#

Description
Price

1

CLAMP

90464-08012-00

$3.28

2

HYDRAULIC UNIT ASSY

BRL-85930-09-00

Unavailable

3

GROMET (3X3)

90480-14229-00

$8.49

4

COLLAR

90387-06313-00

Unavailable

5

BOLT

90111-06051-00

$5.60

6

WHEEL SENSOR ASSY, FRONT

BW3-85970-02-00

Unavailable

7

HOUSING, SENSOR FRONT

BMB-2517A-00-00

$10.49

8

BOLT, FLANGE

95814-06030-00

Unavailable

9

COLLAR

90387-06221-00

$4.41

10

CLAMP

90464-12013-00

$8.49

11

CLAMP(4GY)

90464-05188-00

$4.72

12

WHEEL SENSOR ASSY, REAR

BW3-85980-01-00

Unavailable

13

BOLT, FLANGE

95817-06016-00

$2.75

14

CLAMP

90464-12013-00

$8.49

15

CLAMP(4GL)

90464-10233-00

$7.49

16

BRACKET, UNIT

BRL-85991-00-00

Unavailable

17

BOLT, WITH WASHER

90119-06209-00

Unavailable

18

COLLAR

90387-1001B-00

Unavailable

19

COLLAR

90387-06106-00

Unavailable

20

NUT, SPRING

90183-050A6-00

Unavailable

21

COMMUNICATION CONT

BPD-H5810-00-00

Unavailable

22

BAND

BRL-82591-00-00

Unavailable
