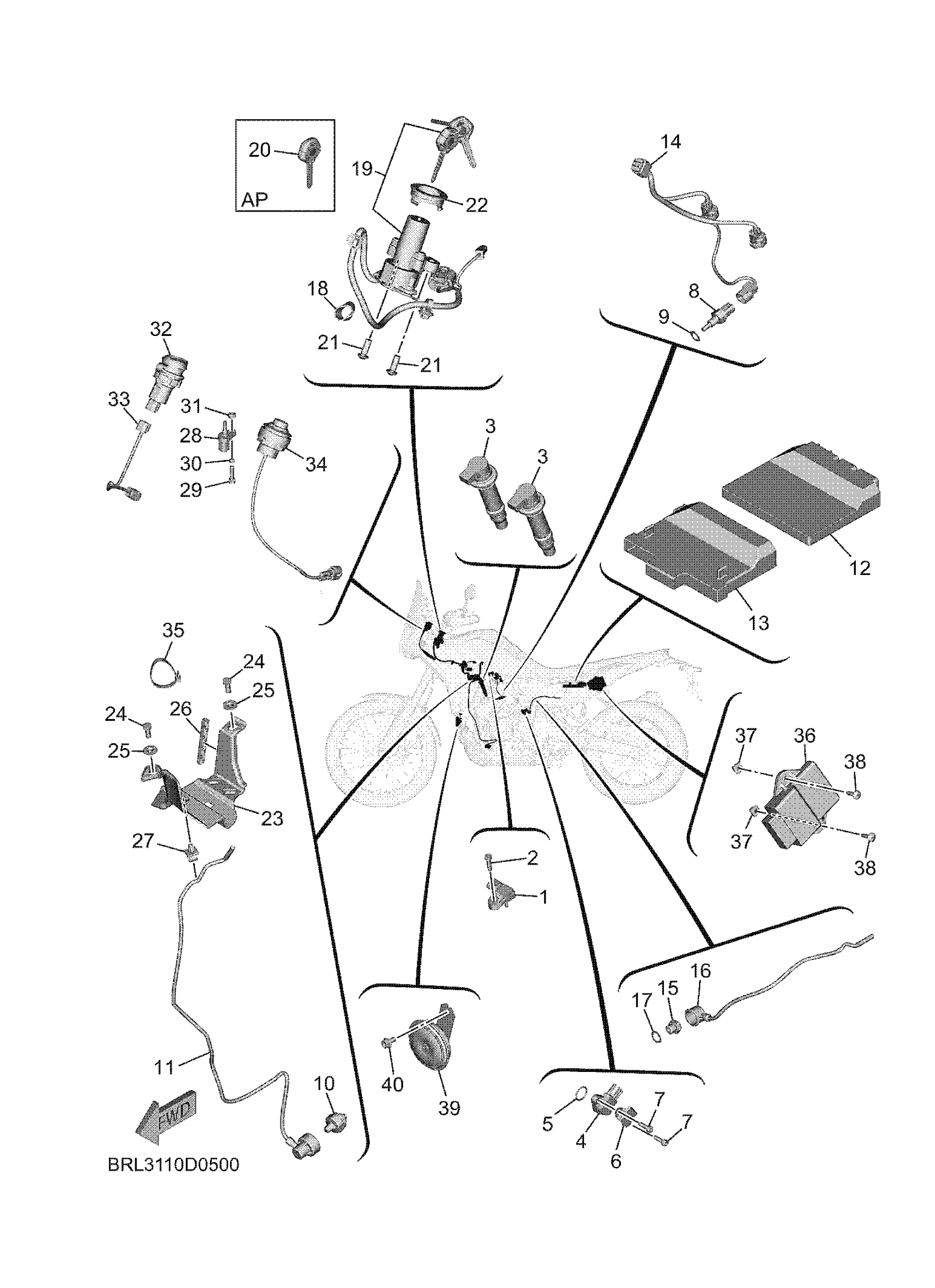

Yamaha XTZ7SY (TENERE 700) BRL31 2025 ELECTRICAL 2 Diagram

#

Description
Price

1

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

2

BOLT, SOCKET

91317-05020-00

$3.28

3

IGNITION COIL ASSY

BME-82310-00-00

$90.99

4

SENSOR, GEAR POSITION

2HC-85899-10-00

$87.99

5

O-RING

93210-17008-00

Unavailable

6

PLATE

BLW-15191-00-00

$7.49

7

BOLT, SOCKET

91317-05016-00

$3.28

8

THERMO UNIT

52B-H3591-00-00

$34.99

9

GASKET

90430-10004-00

$7.49

10

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

11

LEAD WIRE ASSY

BEH-81315-00-00

Unavailable

12

ENGINE CONTROL UNI

BRL-8591A-10-00

$709.99

13

BAND

BRL-85546-00-00

$32.99

14

WIRE, SUB LEAD

BLW-82309-00-00

Unavailable

15

NEUTRAL SWITCH ASSY

5ES-82540-00-00

Unavailable

16

WIRE, SUB LEAD

BFD-82509-00-00

Unavailable

17

WASHER, PLATE

90201-12790-00

Unavailable

18

CLAMP

90464-20816-00

Unavailable

19

MAIN SWITCH STEERING LOCK

BHL-82501-01-00

Unavailable

20

KEY, MAIN SWITCH

BAU-82511-09-00

Unavailable

21

BOLT

90109-08196-00

Unavailable

22

CAP, SWITCH

36P-82552-00-00

Unavailable

23

DAMPER, PLATE

BRL-88195-00-00

Unavailable

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

25

COLLAR

90387-06170-00

Unavailable

26

MOLD, FUEL TANK

31A-24188-01-00

Unavailable

27

CLAMP

90464-16006-00

Unavailable

28

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

29

BOLT, SOCKET

91317-05020-00

$3.28

30

COLLAR(1KF)

90387-051N8-00

Unavailable

31

NUT, U

95617-05100-00

Unavailable

32

USB ASSY

BLS-821E0-00-00

Unavailable

33

WIRE, SUB LEAD

BRL-82583-00-00

Unavailable

34

SWITCH, METER CONT

BRL-8358J-00-00

Unavailable

35

BAND, SWITCH CORD

437-83936-11-00

Unavailable

36

BODY CONT,MODULE ASSY

BMG-85903-30-00

Unavailable

37

RIVET

90269-08803-00

Unavailable

38

SCREW, TAPPING(4TV)

90167-05078-00

Unavailable

39

HORN

BEA-83371-00-00

Unavailable

40

BOLT, FLANGE DEEP

95D37-06012-00

Unavailable
