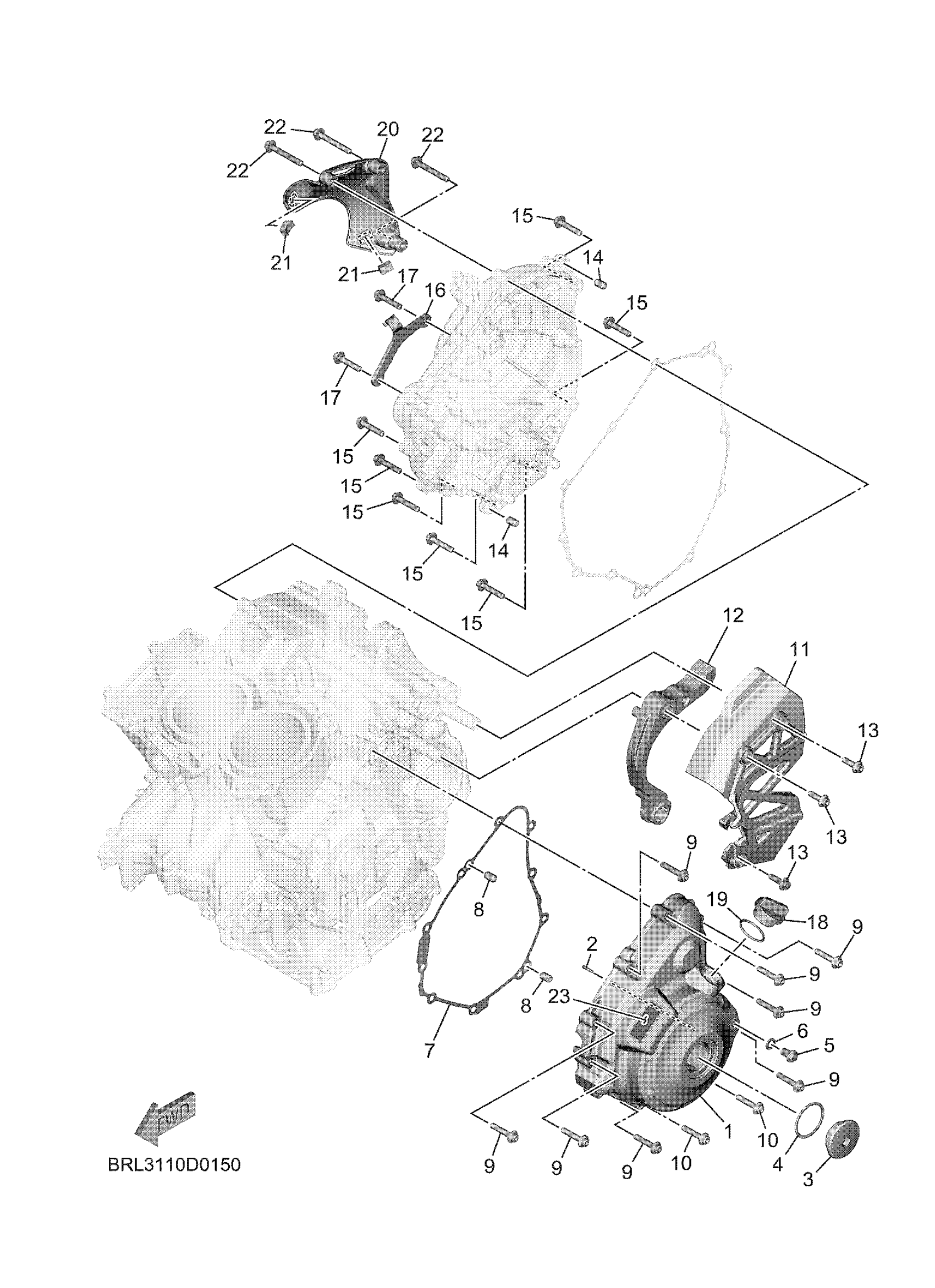

Yamaha XTZ7SY (TENERE 700) BRL31 2025 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

BLW-15411-00-00

$103.99

2

PIN

99480-03014-00

$1.64

3

PLUG STRAIGHT SCREW

90340-36008-00

$20.99

4

O-RING

93210-35804-00

$0.48

5

BOLT, BUTTON HEAD

92017-08012-00

$8.49

6

. GASKET

90430-08143-00

Unavailable

7

GASKET, CRANKCASE

BLW-15451-00-00

$15.99

8

PIN, DOWEL

99530-08012-00

Unavailable

9

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

10

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

11

COVER, CHAIN CASE

BRL-15418-00-00

Unavailable

12

GUIDE, INLET

BRL-15377-00-00

Unavailable

13

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

$2.97

14

PIN, DOWEL

99530-08012-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

16

HOLDER, CLUTCH CAB

BLW-15441-00-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

18

PLUG, OIL LEVEL

BAT-15362-00-00

Unavailable

19

O-RING(1KT)

93210-27778-00

Unavailable

20

PROTECTOR, COVER

BRL-15499-00-00

Unavailable

21

DAMPER, PLATE

90520-06014-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD

90110-06049-00

Unavailable

23

OIL, LABEL

B5Y-1548B-00-00

Unavailable
