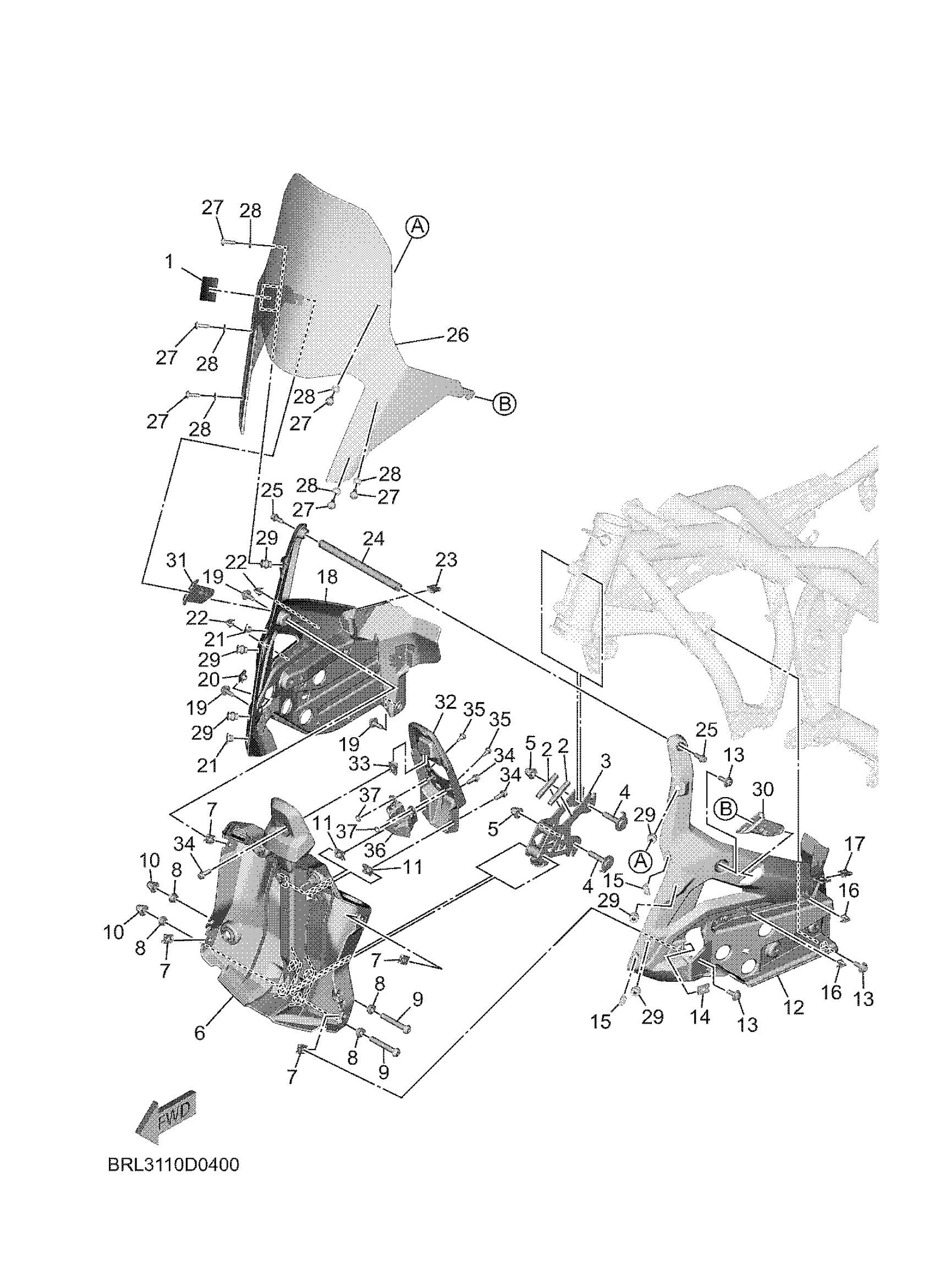

Yamaha XTZ7SY (TENERE 700) BRL31 2025 COWLING 1 Diagram

#

Description
Price

1

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

$7.14

2

MOLD, FUEL TANK

5VN-24188-00-00

Unavailable

3

STAY, HEAD LIGHT 1

BW3-2831V-10-00

Unavailable

4

PLATE

BW3-28336-00-00

Unavailable

5

NUT, CROWN

90176-08009-00

$5.39

6

STAY 1

BRL-28321-00-00

Unavailable

7

NUT, SPRING

90183-060A6-00

$3.90

8

COLLAR

90387-08130-00

Unavailable

9

BOLT, BUTTON

92017-08050-00

$6.33

10

NUT, CROWN

90176-08009-00

$5.39

11

NUT, SPRING

90183-060A6-00

$3.90

12

PANEL, INNER 1

BRL-2836K-00-00

Unavailable

13

SCREW

90149-06221-00

Unavailable

14

NUT, SPRING

90183-060A6-00

$3.90

15

DAMPER

BRL-28371-00-00

Unavailable

16

CLIP

90468-040A0-00

Unavailable

17

NUT, SPRING

90183-060A6-00

$3.90

18

PANEL, INNER 2

BRL-2836L-00-00

Unavailable

19

SCREW

90149-06221-00

Unavailable

20

NUT, SPRING

90183-060A6-00

$3.90

21

DAMPER

BRL-28371-00-00

Unavailable

22

CLIP

90468-040A0-00

Unavailable

23

NUT, SPRING

90183-060A6-00

$3.90

24

STAY, SUPPORT 1

BMB-2831T-00-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06110-00

Unavailable

26

WINDSHIELD

BRL-28381-00-00

Unavailable

27

BOLT, HEXAGON SOCKET BUTTON

90111-05017-00

$2.56

28

WASHER, PLATE

90202-05004-00

Unavailable

29

NUT(1KT)

90179-05523-00

Unavailable

30

GROMMET, 1

BRL-F844X-00-00

Unavailable

31

GROMMET, 2

BRL-F844Y-00-00

Unavailable

32

BRKT., METER

BRL-2834L-00-00

Unavailable

33

NUT, SPRING

90183-060A6-00

$3.90

34

BOLT, HEXAGON SOCKET HEAD

90110-06398-00

Unavailable

35

PLUG

90338-05009-00

Unavailable

36

COVER, SENSOR

BRL-86016-00-00

Unavailable

37

NUT, SPRING (6E5)

90183-05M02-00

Unavailable
