Description

Price

1

HANDLEBAR

BNW-F6111-01-00

$59.99

2

GRIP

BEH-F6241-00-00

$30.99

3

GRIP ASSY

BEH-F6240-00-00

$52.99

4

END, GRIP

BNW-26246-00-00

$64.99

5

COLLAR

90387-08089-00

$7.49

6

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

7

BOLT, BUTTON HEAD

92012-08025-00

$7.49

8

THROTTLE CABLE ASSY

BW3-F6301-00-00

$50.99

9

CLAMP,WIRE

39P-2627E-00-00

$5.49

10

CLAMP

90464-16023-00

$3.28

11

CAP, GRIP UPPER

BVW-26281-00-00

$13.99

12

CAP, GRIP UNDER

BVW-26282-00-00

$11.49

13

BOLT, BUTTON HEAD

92017-05035-00

$5.60

14

CLAMP

90464-18004-00

Unavailable

15

CLAMP

90464-20816-00

Unavailable

16

CLAMP

90464-26802-00

Unavailable

17

CLAMP

90464-30810-00

Unavailable

18

WIRE, CLUTCH

BW3-F6335-00-00

Unavailable

19

GUARD, BRUSH 1

BMB-26141-00-00

Unavailable

20

BRACKET, HANDLE 1

BMB-26223-00-00

Unavailable

21

SCREW

90149-05045-00

Unavailable

22

GUARD, BRUSH 2

BMB-26142-00-00

Unavailable

23

BRACKET, HANDLE 3

BMB-2622A-00-00

Unavailable

24

SCREW

90149-05045-00

Unavailable

25

REAR VIEW MIRROR A

BHL-26280-00-00

Unavailable

26

CAP

5PS-26133-20-00

Unavailable

27

REAR VIEW MIRROR ASSY (RIGHT)

BHL-26290-00-00

Unavailable

28

CAP

5PS-26133-20-00

Unavailable

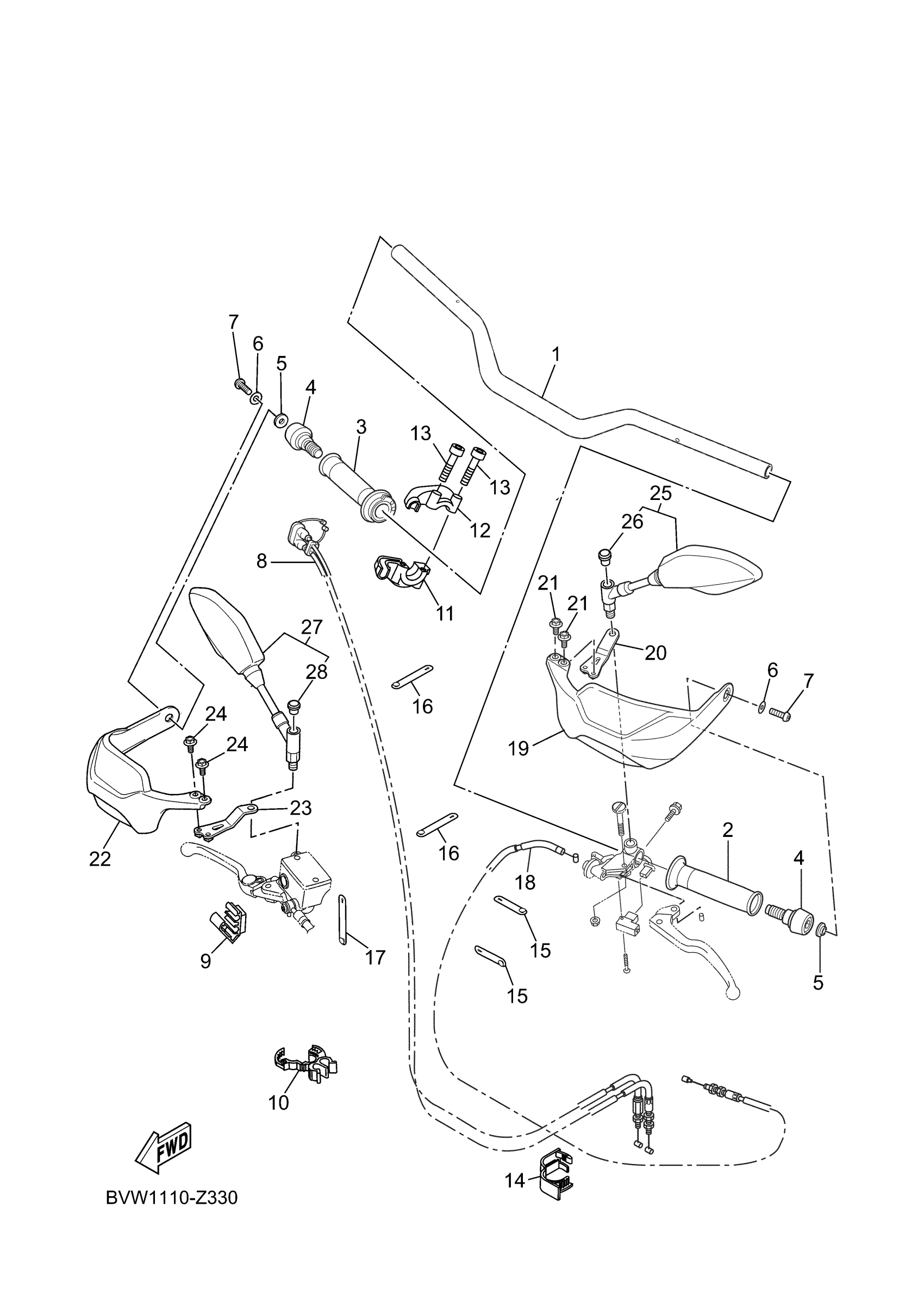

Yamaha XTZ7RL (TENERE 700) BVW1 2024 STEERING HANDLE & CABLE Diagram

HANDLEBAR

GRIP

GRIP ASSY

END, GRIP

COLLAR

WASHER, PLATE(3XP)

BOLT, BUTTON HEAD

THROTTLE CABLE ASSY

CLAMP,WIRE

CLAMP

CAP, GRIP UPPER

CAP, GRIP UNDER

BOLT, BUTTON HEAD

CLAMP

CLAMP

CLAMP

CLAMP

WIRE, CLUTCH

GUARD, BRUSH 1

BRACKET, HANDLE 1

SCREW

GUARD, BRUSH 2

BRACKET, HANDLE 3

SCREW

REAR VIEW MIRROR A

CAP

REAR VIEW MIRROR ASSY (RIGHT)

CAP
