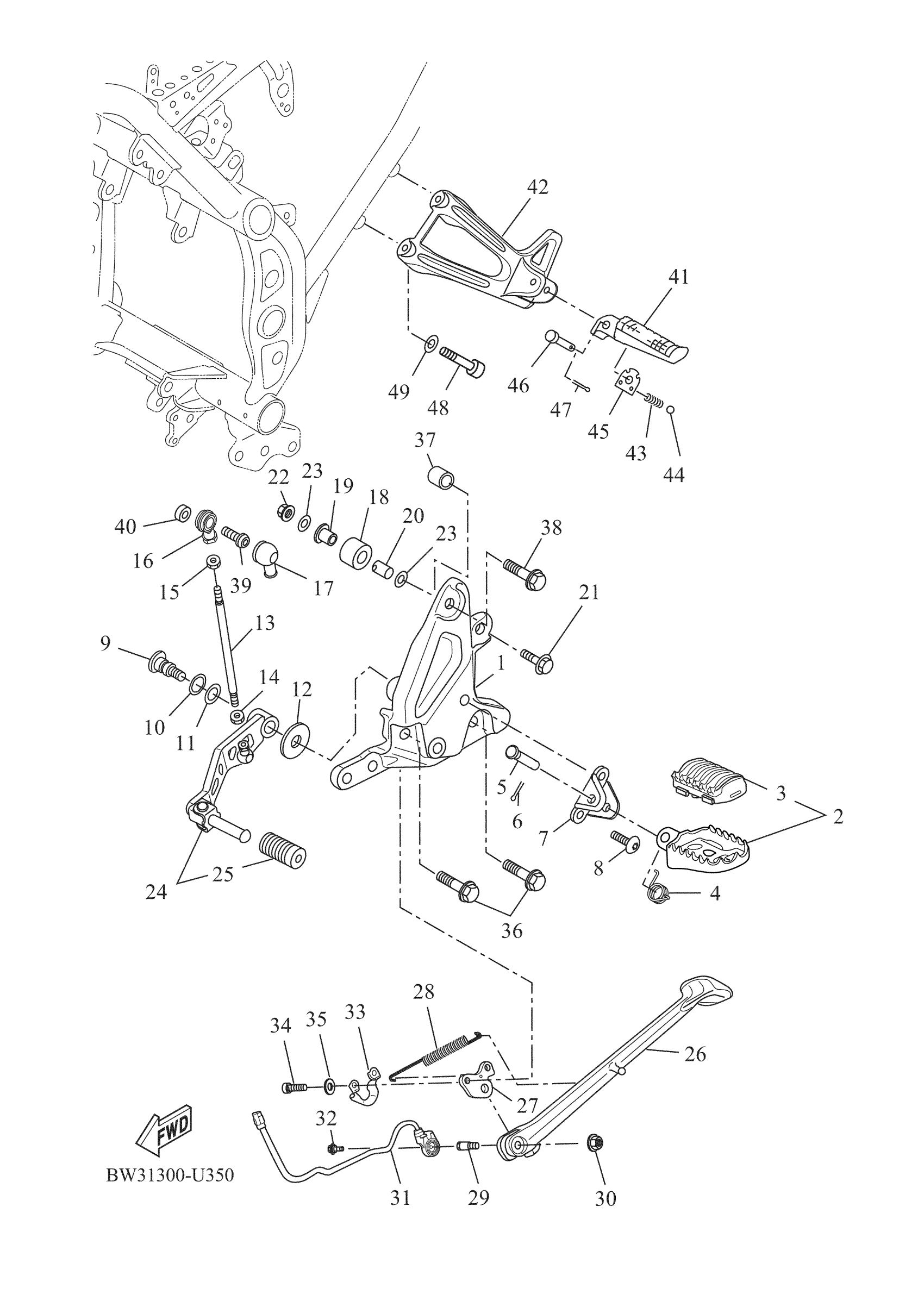

Yamaha XTZ7RL (TENERE 700) BVW1 2024 STAND & FOOTREST Diagram

#

Description
Price

1

BRACKET 2

BW3-F7442-00-00

$200.99

2

FOOTREST ASSY

BW3-F7400-00-00

$127.99

3

COVER, FOOTREST

BW3-F7413-00-00

$30.99

4

SPRING, TORSION

90508-20061-00

Unavailable

5

PIN, CLEVIS

91702-10045-00

$5.60

6

PIN, COTTER

91490-25020-00

$3.19

7

BRACKET, FOOTREST

3D7-21447-00-00

Unavailable

8

SCREW

90149-10033-00

$5.60

9

BOLT

4BP-27434-11-00

$3.17

10

WASHER, WAVE (17W)

90206-12074-00

$9.49

11

WASHER, PLATE

90201-12051-00

$7.49

12

WASHER, PLATE

90201-08053-00

$5.60

13

ROD, SHIFT

BW3-18115-00-00

$24.99

14

NUT

90170-06026-00

$7.49

15

Nut

95314-06700-00

$7.49

16

JOINT, ROD 1

5VX-18116-00-00

Unavailable

17

COVER, DUST

5VX-18154-00-00

Unavailable

18

TENSIONER

30X-22178-00-00

Unavailable

19

BUSH

10V-22184-00-00

Unavailable

20

COLLAR

90387-08120-00

Unavailable

21

BOLT, FLANGE(4UN)

95814-08050-00

Unavailable

22

NUT, SELF-LOCKING

95602-08200-00

Unavailable

23

WASHER, PLATE(49E)

90201-087H6-00

Unavailable

24

SHIFT PEDAL ASSY

BW3-18110-10-00

Unavailable

25

COVER, SHIFT PEDAL

1WS-18113-00-00

Unavailable

26

STAND, SIDE

BW3-27311-00-00

Unavailable

27

BRACKET, SIDE STAND

BW3-27321-00-00

Unavailable

28

SPRING, SIDE STAND

BW3-27316-00-00

Unavailable

29

BOLT

90109-10069-00

Unavailable

30

NUT, S/L FLANGE

95602-10200-00

Unavailable

31

SWITCH, SIDE STAND

BW3-82566-00-00

Unavailable

32

BOLT, WITH WASHER

90119-06177-00

Unavailable

33

COVER 1

BMB-27453-00-00

Unavailable

34

BOLT, HEXAGON SOCKET HEAD

90110-12011-00

Unavailable

35

WASHER, PLATE

90201-12068-00

Unavailable

36

BOLT, FLANGE

90105-10485-00

Unavailable

37

HOSE (L10)

90445-14M39-00

Unavailable

38

BOLT, FLANGE

90105-08063-00

Unavailable

39

BOLT, BUTTON HEAD

92012-06020-00

Unavailable

40

COLLAR

90387-06106-00

Unavailable

41

FOOTREST, REAR 1

B7N-27431-00-00

Unavailable

42

BRACKET 4

BNW-F741L-00-00

Unavailable

43

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

44

BALL

93501-04011-00

Unavailable

45

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

46

PIN, CLEVIS

91702-08040-00

Unavailable

47

PIN, COTTER

91490-25020-00

$3.19

48

BOLT,SOCKET

91314-08040-00

Unavailable

49

.. WASHER, PLATE

92990-08600-00

Unavailable
