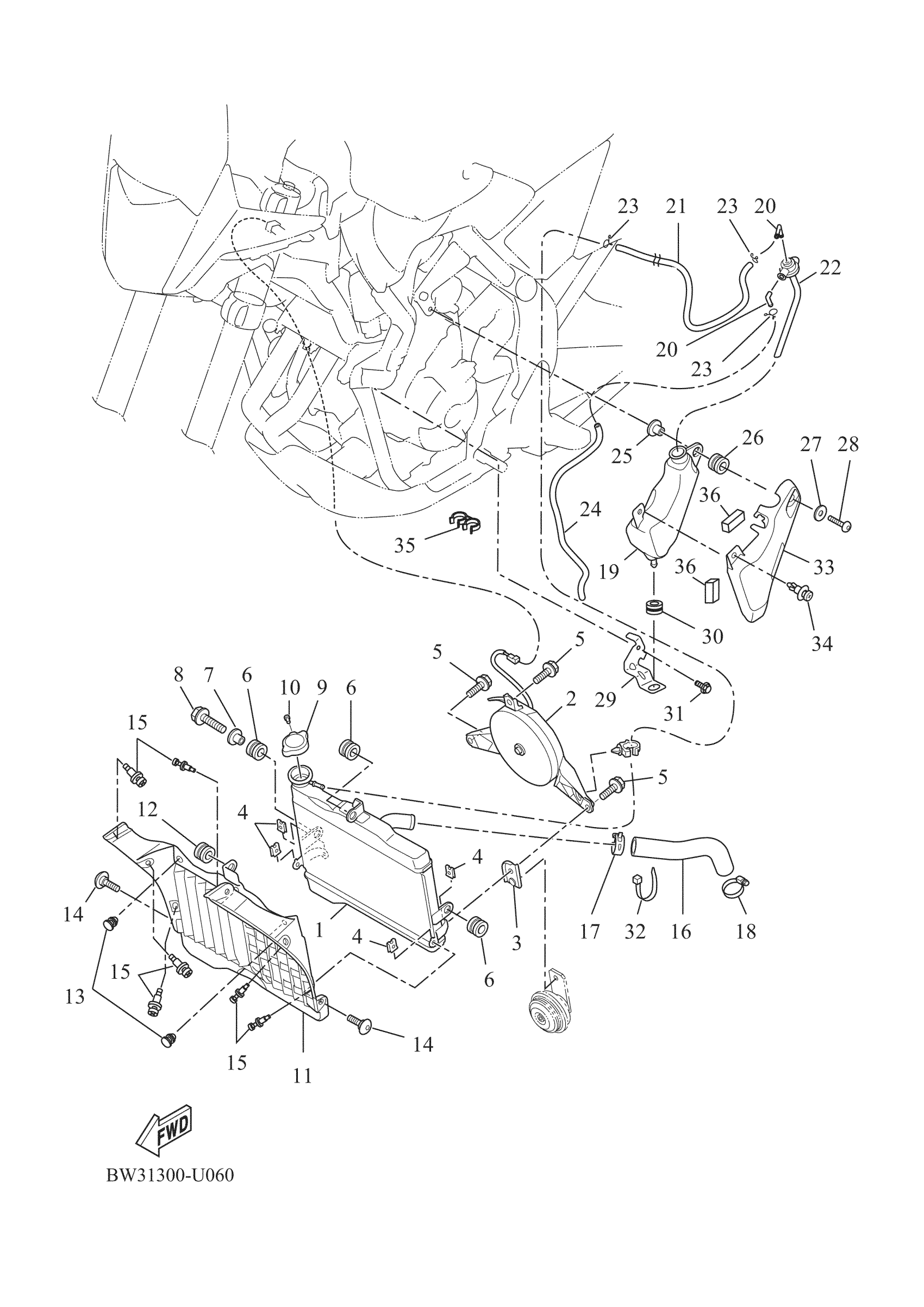

Yamaha XTZ7RL (TENERE 700) BVW1 2024 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR COMP

BW3-12461-00-00

$273.99

2

BLOWER ASSY

BW3-12405-00-00

Unavailable

3

BRACKET, HORN

BW3-21343-00-00

Unavailable

4

NUT 1

1WS-12671-00-00

$3.22

5

BOLT, BLOWER HOLDING

2S3-12675-00-00

$6.99

6

GROMMET (29L)

90480-15363-00

$8.49

7

COLLAR 437216330000

90387-07391-00

Unavailable

8

BOLT, FLANGE

95822-06025-00

$1.75

9

CAP, RADIATOR

B67-12462-11-00

Unavailable

10

BOLT, SOCKET

91317-03006-00

$9.49

11

PROTECTOR

BMB-12498-00-00

$69.99

12

GROMMET (29L)

90480-15363-00

$8.49

13

PLUG 288833190000

90338-07043-00

$8.49

14

BOLT

90109-06084-00

Unavailable

15

RIVET

90269-08010-00

$3.23

16

HOSE 3

BW3-12578-00-00

Unavailable

17

CLIP

90467-290A0-00

Unavailable

18

HOSE CLAMP ASSY

90450-35001-00

Unavailable

19

TANK, RECOVERY

BMB-21871-00-00

Unavailable

20

ELBOW

26H-21828-00-00

Unavailable

21

HOSE

90445-08X13-00

Unavailable

22

CAP

2C0-21875-00-00

Unavailable

23

CLIP (16G)

90467-08021-00

Unavailable

24

HOSE

90445-08X12-00

Unavailable

25

COLLAR

90387-06236-00

Unavailable

26

GROMMET

90480-18411-00

Unavailable

27

WASHER, PLATE

90201-06029-00

Unavailable

28

BOLT

90111-06068-00

Unavailable

29

BRACKET, RECOVERY TANK

BW3-21873-00-00

Unavailable

30

GROMMET(4BH)

90480-01559-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

90110-06341-00

Unavailable

32

CLAMP(6U0)

90464-07M40-00

Unavailable

33

COVER

BMB-2172W-00-00

Unavailable

34

RIVET

90269-08010-00

$3.23

35

CLAMP

90464-06008-00

Unavailable

36

DAMPER, PLATE

90520-05018-00

Unavailable
