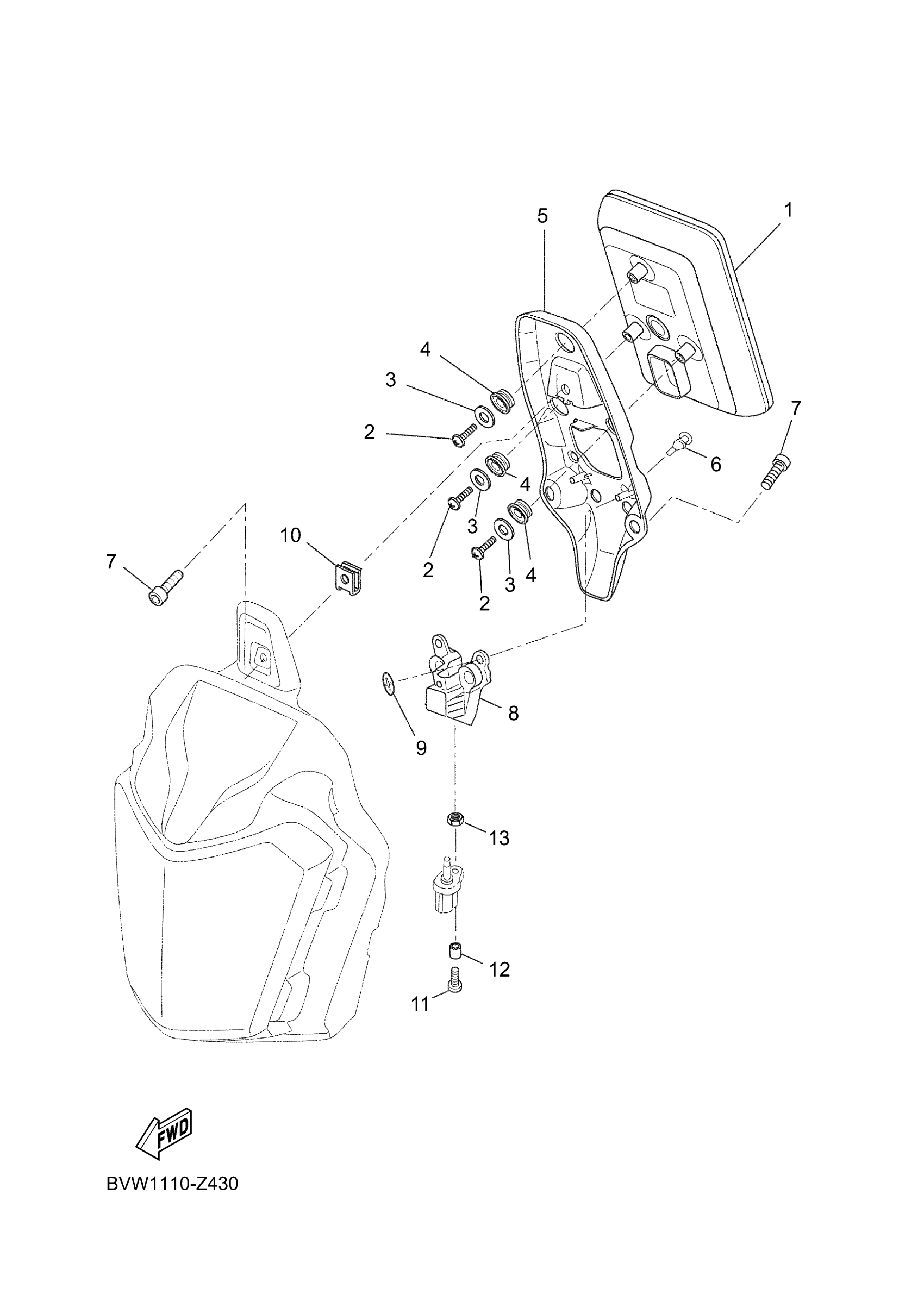

Yamaha XTZ7RL (TENERE 700) BVW1 2024 METER Diagram

#

Description
Price

1

METER ASSY

BNW-83500-20-00

$1,281.99

2

BOLT, BUTTON

92017-05010-00

$7.49

3

WASHER PLATE 803835240000

90201-05032-00

Unavailable

4

DAMPER

5PS-83513-00-00

$4.42

5

BRKT., METER

BAG-F834L-00-00

$116.99

6

PLUG

90338-05009-00

$3.18

7

BOLT, HEXAGON SOCKET HEAD

90110-06398-00

$2.17

8

COVER, SENSOR

BAG-H6016-00-00

$13.49

9

NUT, SPRING (6E5)

90183-05M02-00

$0.33

10

NUT, SPRING

90183-062A1-00

$1.96

11

BOLT, SOCKET

91317-05020-00

$3.28

12

COLLAR(1KF)

90387-051N8-00

$0.33

13

NUT, U

95617-05100-00

$9.49
