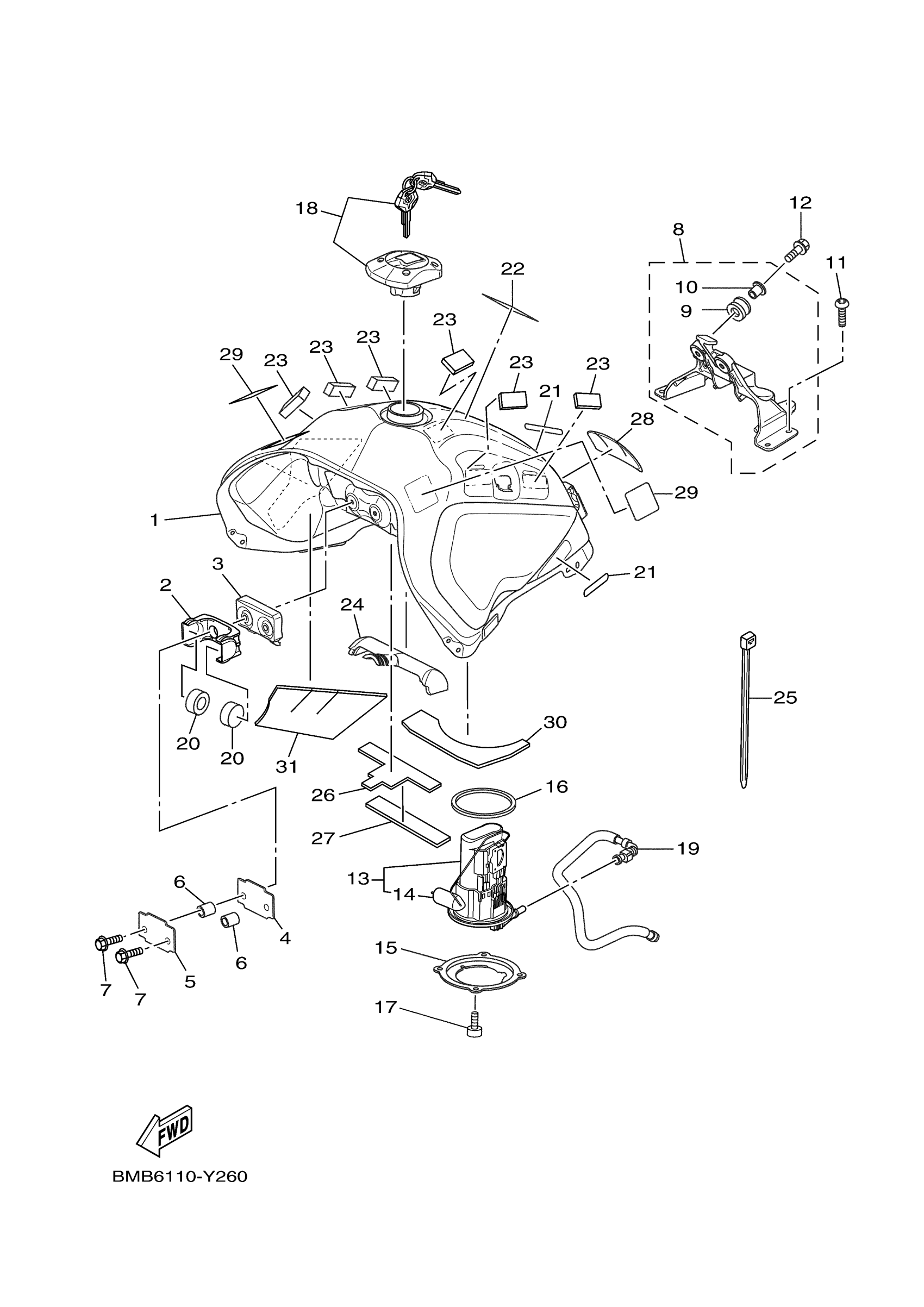

Yamaha XTZ7RL (TENERE 700) BVW1 2024 FUEL TANK Diagram
#
Description
Price
3
DAMPER, LOCATING 1
BW3-24181-00-00
Unavailable
4
DAMPER, LOCATING 2
BW3-24182-00-00
Unavailable
5
WASHER, SPECIAL
BW3-24186-00-00
Unavailable
7
BOLT, FLANGE
95817-06025-00
Unavailable
8
TANK BRACKET ASSY 2
BW3-24105-01-00
Unavailable
9
GROMMET
90480-18018-00
Unavailable
12
BOLT, FLANGE
95817-06025-00
Unavailable
13
FUEL PUMP COMP.
BW3-13907-10-00
Unavailable
15
BRACKET, FUEL PUMP
BW3-24491-00-00
Unavailable
16
O-RING
1RC-24486-00-00
Unavailable
17
BOLT
91312-05010-00
Unavailable
18
CAP ASSY
BW3-24602-00-00
Unavailable
19
PIPE, FUEL 1
BW3-13971-01-00
Unavailable
20
DAMPER, LOCATING 1
3TB-24181-00-00
Unavailable
21
HOOK, SIDE COVER 1
BW3-2411G-00-00
Unavailable
22
DAMPER
5UM-21717-E0-00
Unavailable
23
DAMPER, PLATE
90520-05025-00
Unavailable
24
DAMPER, LOCATING 4
BW3-24184-00-00
Unavailable
25
CLAMP
90464-65001-00
Unavailable
26
PROTECTOR
BW3-24595-00-00
Unavailable
27
PROTECTOR
BW3-24595-10-00
Unavailable
28
PROTECTOR, FUEL TANK
BW3-24141-00-00
Unavailable
29
SEAL 1
3FY-21575-01-00
Unavailable
30
PROTECTOR, FUEL TA
BEH-24141-00-00
Unavailable
31
PROTECTOR, FUEL TA
BEH-24141-10-00
Unavailable
