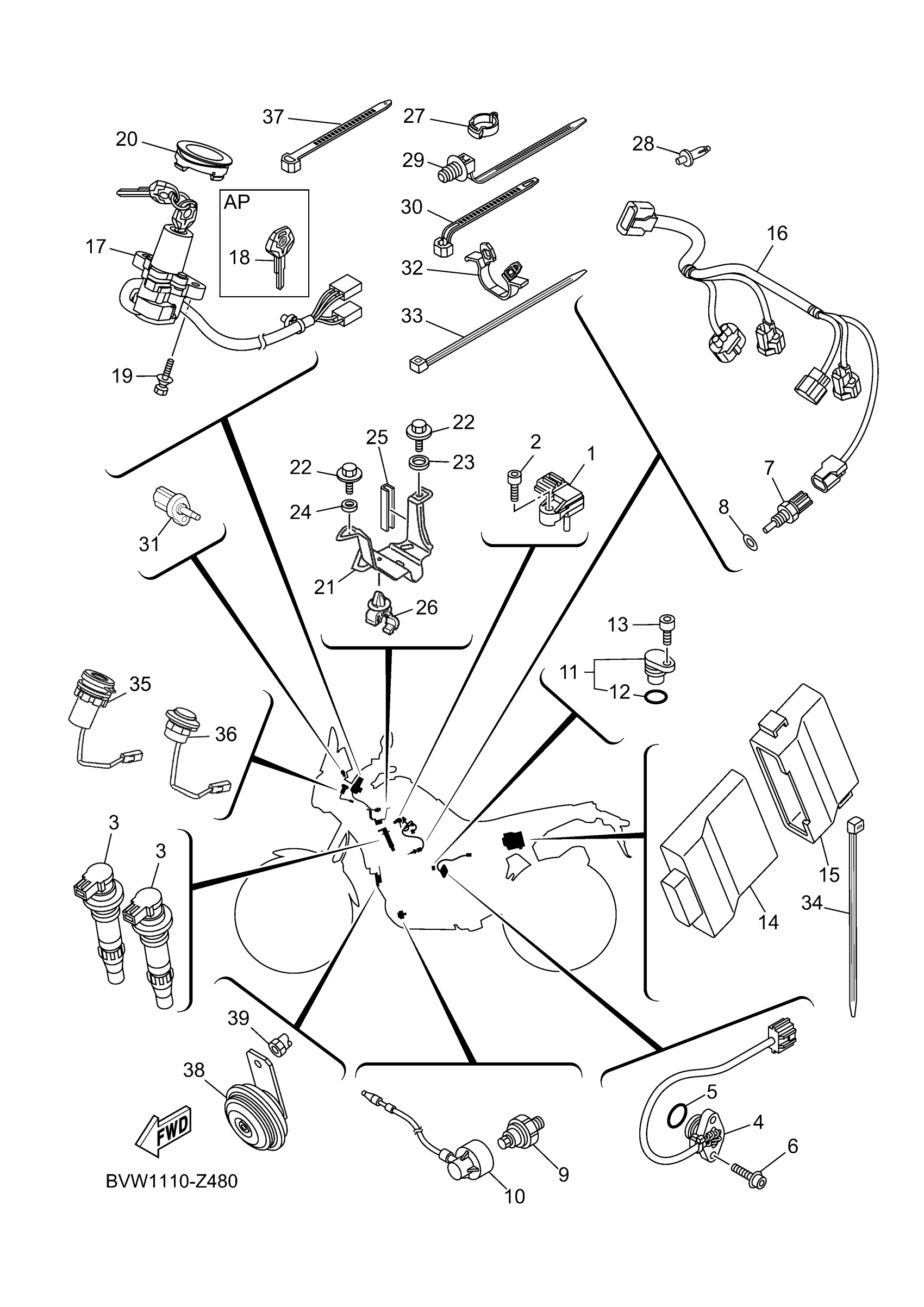

Yamaha XTZ7RL (TENERE 700) BVW1 2024 ELECTRICAL 2 Diagram

#

Description
Price

1

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

2

BOLT, SOCKET

91317-05020-00

$3.28

3

IGNITION COIL ASSY

1WS-82310-00-00

$110.99

4

NEUTRAL SWITCH ASSY

1WS-82540-01-00

$71.99

5

O-RING

93210-21001-00

$5.60

6

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

7

THERMO UNIT

52B-H3591-00-00

$34.99

8

GASKET

90430-10004-00

$7.49

9

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

10

LEAD WIRE ASSY

BEH-81315-00-00

Unavailable

11

PLUG, BLIND

3P6-15399-00-00

Unavailable

12

O-RING (22U)

93210-15566-00

$7.49

13

BOLT(3MA)

91312-06016-00

$5.60

14

ENGINE CONTROL UNIT ASSY

BNW-8591A-40-00

$729.99

15

BAND

B34-H5546-00-00

Unavailable

16

WIRE, SUB LEAD

BW3-H2309-00-00

Unavailable

17

MAIN SWITCH STEERING LOCK

BHL-82501-01-00

Unavailable

18

KEY, MAIN SWITCH

BAU-82511-09-00

Unavailable

19

BOLT

90109-08196-00

Unavailable

20

CAP, SWITCH

36P-82552-00-00

Unavailable

21

HOLDER, CONNECTOR

BMB-88195-00-00

Unavailable

22

BOLT, WITH WASHER

90119-06209-00

Unavailable

23

COLLAR

90387-1001B-00

Unavailable

24

COLLAR

90387-06106-00

Unavailable

25

MOLD, FUEL TANK

31A-24188-01-00

Unavailable

26

CLAMP

90464-10800-00

Unavailable

27

CLAMP

90464-14010-00

Unavailable

28

RIVET

90269-06008-00

Unavailable

29

CLAMP

90464-30009-00

Unavailable

30

CLAMP(4FM)

90464-15195-00

Unavailable

31

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

32

CLAMP(4NK)

90464-24230-00

Unavailable

33

CLAMP

90464-65001-00

Unavailable

34

CLAMP

90464-80002-00

Unavailable

35

USB ASSY

B0J-H21E0-01-00

Unavailable

36

SWITCH, METER CONTROL

BAG-8358J-01-00

Unavailable

37

BAND, SWITCH CORD

437-83936-11-00

Unavailable

38

HORN

1WS-83371-00-00

Unavailable

39

Nut

90179-06018-00

Unavailable
