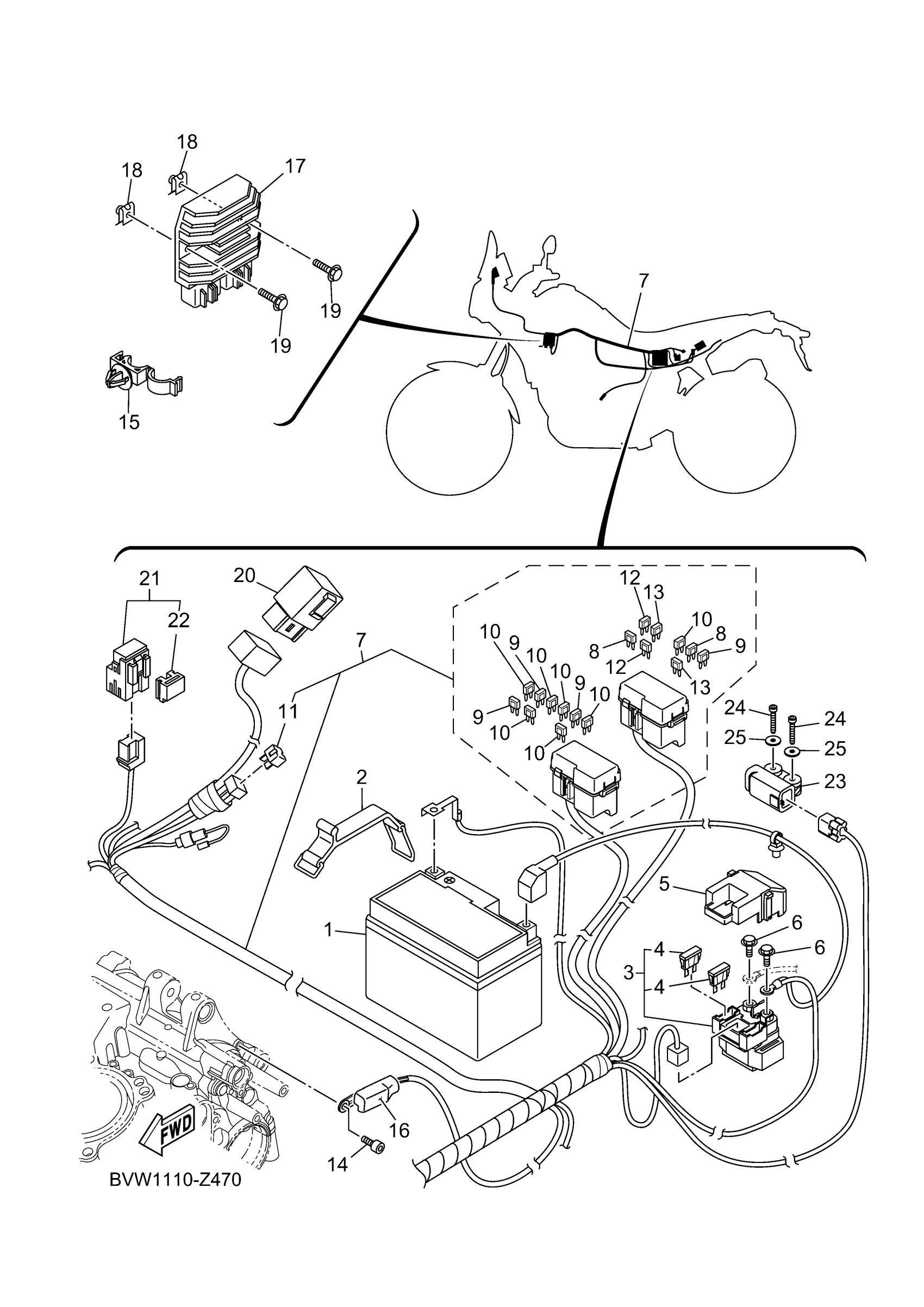

Yamaha XTZ7RL (TENERE 700) BVW1 2024 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY ASSY (YTZ7S(F))

5TJ-82100-01-00

$197.36

2

BAND, BATTERY

4BP-82131-00-00

Unavailable

3

STARTER RELAY ASSY

1XC-81940-00-00

$53.34

4

FUSE (12V 30A)

1AE-82151-00-00

$5.80

5

COVER, LEAD WIRE

5SL-82119-10-00

$3.79

6

BOLT, FLANGE

95022-06008-00

$5.84

7

WIRE HARNESS ASSY

BNW-82590-10-00

$1,054.99

8

FUSE (2A-BL)

5JJ-82151-80-00

$6.74

9

FUSE (7.5A-BL)

5JJ-82151-00-00

$5.55

10

. FUSE (10A)

67F-82151-40-00

$6.07

11

DIODE ASSY

3WP-81980-00-00

$17.59

12

FUSE

5JJ-82151-20-00

$5.98

13

FUSE

5JJ-82151-60-00

$5.98

14

BOLT

91380-06012-00

$1.74

15

CLAMP

90464-17003-00

$2.89

16

COVER, TERMINAL

1WS-81916-00-00

Unavailable

17

RECTIFIER & REGULATOR ASSY

1D7-81960-10-00

Unavailable

18

NUT, SPRING

90183-060A6-00

Unavailable

19

BOLT, FLANGE

90105-06148-00

Unavailable

20

RELAY ASSY

5VK-81950-33-00

Unavailable

21

RELAY ASSY

1TP-81950-00-00

Unavailable

22

HOLDER,RELAY

5EA-81952-00-00

Unavailable

23

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

24

BOLT

91312-04025-00

Unavailable

25

WASHER, PLATE

90201-04030-00

Unavailable
