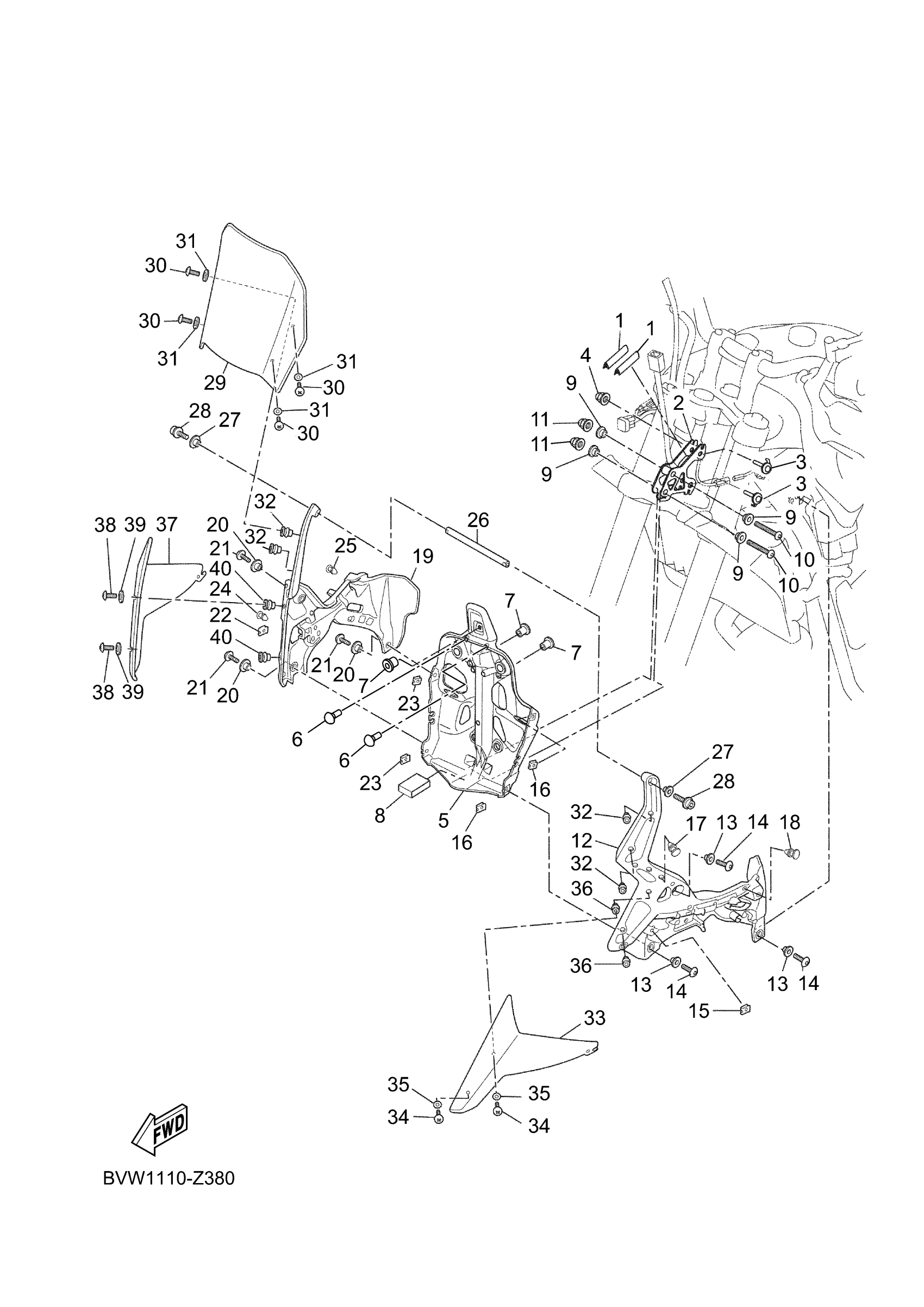

Yamaha XTZ7RL (TENERE 700) BVW1 2024 COWLING 1 Diagram

#

Description
Price

1

MOLD, FUEL TANK

5VN-24188-00-00

Unavailable

2

STAY, HEAD LIGHT 1

BW3-2831V-10-00

Unavailable

3

PLATE

BW3-28336-00-00

Unavailable

4

NUT, CROWN

90176-08009-00

$5.60

5

STAY 1

BAG-F8321-00-00

$1,091.99

6

PLUG

90338-05009-00

$3.18

7

COLLAR

90387-06255-00

$8.49

8

DAMPER, PLATE

90520-15019-00

$2.92

9

COLLAR

90387-08115-00

$3.28

10

BOLT, BUTTON

92017-08050-00

$7.49

11

NUT, CROWN

90176-08009-00

$5.60

12

PANEL, INNER 1

BMB-2836K-01-00

Unavailable

13

COLLAR

90387-06142-00

$4.46

14

BOLT

90111-06038-00

$4.29

15

NUT, SPRING

90183-050A6-00

$8.49

16

NUT, SPRING

90183-062A1-00

Unavailable

17

PLUG(1NL)

90338-07180-00

Unavailable

18

PLUG(1NL)

90338-07180-00

Unavailable

19

PANEL, INNER 2

BMB-2836L-00-00

Unavailable

20

COLLAR

90387-06142-00

$4.46

21

BOLT

90111-06038-00

$4.29

22

NUT, SPRING

90183-050A6-00

$8.49

23

NUT, SPRING

90183-062A1-00

Unavailable

24

PLUG(1NL)

90338-07180-00

Unavailable

25

PLUG(1NL)

90338-07180-00

Unavailable

26

STAY, SUPPORT 1

BMB-2831T-00-00

Unavailable

27

COLLAR

90387-06255-00

$8.49

28

BOLT, HEXAGON SOCKET HEAD

90110-06110-00

Unavailable

29

WINDSHIELD

BMB-28381-00-00

Unavailable

30

BOLT, HEXAGON SOCKET BUTTON

90111-05017-00

Unavailable

31

WASHER, PLATE

90202-05004-00

Unavailable

32

NUT(1KT)

90179-05523-00

Unavailable

33

DEFLECTOR

BMB-283M3-00-00

Unavailable

34

BOLT, HEXAGON SOCKET BUTTON

90111-05017-00

Unavailable

35

WASHER, PLATE

90202-05004-00

Unavailable

36

NUT(1KT)

90179-05523-00

Unavailable

37

DEFLECTOR 2

BMB-283M4-00-00

Unavailable

38

BOLT, HEXAGON SOCKET BUTTON

90111-05017-00

Unavailable

39

WASHER, PLATE

90202-05004-00

Unavailable

40

NUT(1KT)

90179-05523-00

Unavailable
