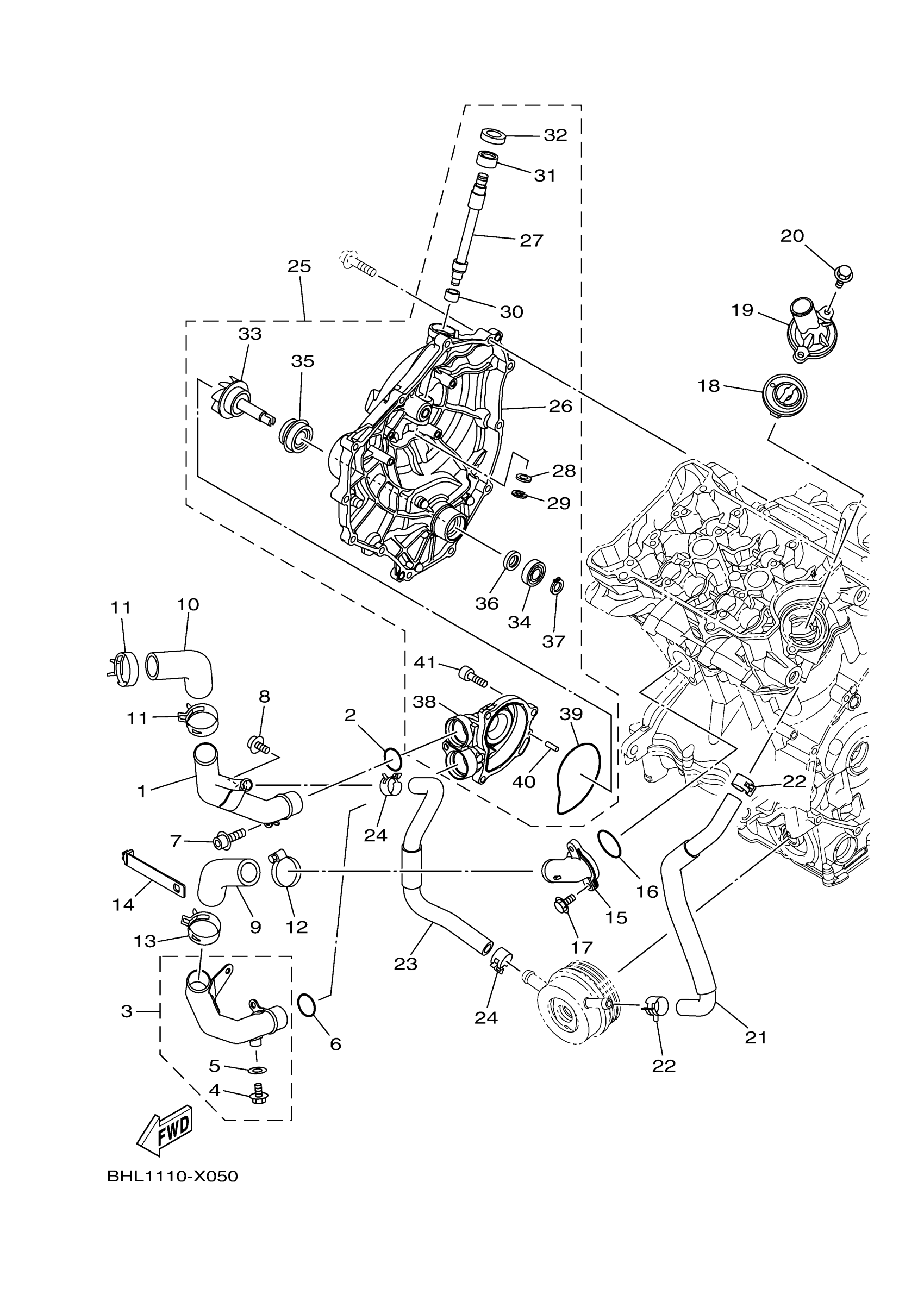

Yamaha XTZ7PL (TENERE 700) BMB6 2023 WATER PUMP Diagram
#
5
GASKET 256113960000
90430-06014-00
Unavailable
10
HOSE 2
BW3-12577-00-00
Unavailable
11
CLIP
90467-290A0-00
Unavailable
13
CLIP
90467-290A0-00
Unavailable
14
COVER 1
BEH-1246A-00-00
Unavailable
15
JOINT 1
1WS-12469-00-00
Unavailable
16
O-RING
93210-33006-00
Unavailable
17
BOLT, FLANGE
95817-06020-00
Unavailable
18
THERMOSTAT ASSY
1WS-12410-01-00
Unavailable
19
COVER, THERMOSTAT
1WS-12413-00-00
Unavailable
20
BOLT, FLANGE
95817-06020-00
Unavailable
21
HOSE 5
1WS-12588-00-00
Unavailable
22
CLIP
90467-170A6-00
Unavailable
23
HOSE 6
1WS-12589-00-00
Unavailable
24
CLIP
90467-170A6-00
Unavailable
25
WATER PUMP ASSY
1WS-12420-01-00
Unavailable
26
COVER, CRANKCASE 2
1WS-15421-00-00
Unavailable
27
AXLE, PUSH LEVER
2D1-16382-00-00
Unavailable
28
WASHER(6TA)
92907-08600-00
Unavailable
29
CIRCLIP
99080-07600-00
Unavailable
30
BEARING
93317-11096-00
Unavailable
31
BEARING
93315-21570-00
Unavailable
32
OIL SEAL (3X3)
93102-15212-00
Unavailable
33
IMPELLER SHAFT ASS
1WS-12450-00-00
Unavailable
34
BRG,R-B 6001 28MM 28G KY
93306-00105-00
Unavailable
35
SEAL, MECHANICAL
5VK-12438-00-00
Unavailable
36
SEAL
2CR-13338-00-00
Unavailable
37
CIRCLIP(10Y)
99009-12400-00
Unavailable
38
COVER, HOUSING
1WS-12422-00-00
Unavailable
39
O-RING
1WS-12439-00-00
Unavailable
40
PIN,DOWEL (603)
93603-12007-00
Unavailable
41
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
