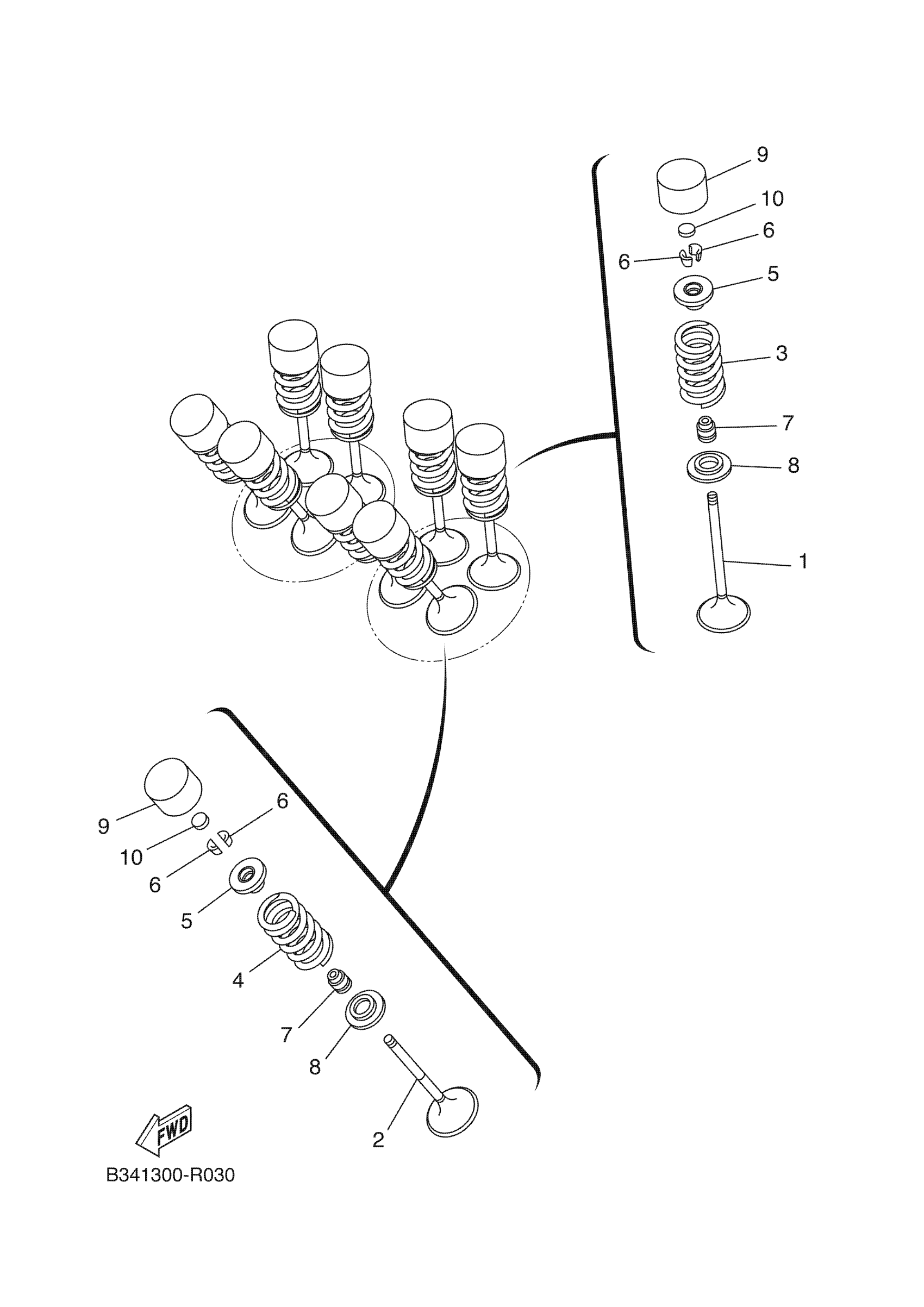

Yamaha XTZ7PL (TENERE 700) BMB6 2023 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

BLW-12111-00-00

$15.51

2

VALVE, EXHAUST

1WS-12121-01-00

$31.67

3

SPRING, VALVE INNE

1WS-12113-01-00

$36.36

4

SPRING, VALVE OUTE

1WS-12114-00-00

$25.35

5

RETAINER, VALVE SP

1WS-12117-00-00

$10.61

6

COTTER, VALVE

1WG-12118-00-00

$5.50

7

SEAL, VALVE STEM

4TE-12119-00-00

$11.20

8

SEAT, VALVE SPRING

1WS-12116-00-00

$5.99

9

LIFTER, VALVE

4C8-12153-09-00

$53.34

9

LIFTER, VALVE

B4T-12153-00-00

$19.35

10

PAD, ADJUSTING 2 (1.50)

1HX-12168-F0-00

$17.03

10

PAD, ADJUSTING 2 (1.55)

1HX-12168-H1-00

$11.45

10

PAD, ADJUSTING 2 (1.60)

1HX-12168-K1-00

$18.15

10

PAD, ADJUSTING 2 (1.65)

1HX-12168-M1-00

$25.45

10

PAD, ADJUSTING 2 (1.70)

1HX-12168-R1-00

$18.15

10

PAD, ADJUSTING 2 (1.75)

1HX-12168-U1-00

Unavailable

10

PAD, ADJUSTING 2 (1.80)

1HX-12168-W1-00

Unavailable

10

PAD, ADJUSTING 2 (1.85)

1HX-12168-Y1-00

Unavailable

10

PAD, ADJUSTING 2 (1.90)

1HX-12169-11-00

Unavailable

10

PAD, ADJUSTING 2 (1.95)

1HX-12169-31-00

Unavailable

10

PAD, ADJUSTING 2 (2.00)

1HX-12169-50-00

Unavailable

10

PAD, ADJUSTING 2 (2.05)

1HX-12169-70-00

Unavailable

10

PAD, ADJUSTING 2 (2.10)

1HX-12169-90-00

Unavailable

10

PAD, ADJUSTING 2 (2.15)

1HX-12169-E0-00

Unavailable

10

PAD, ADJUSTING 2 (2.20)

1HX-12169-G0-00

Unavailable

10

PAD, ADJUSTING 2 (2.25)

1HX-12169-J0-00

Unavailable

10

PAD, ADJUSTING 2 (2.30)

1HX-12169-L0-00

Unavailable

10

PAD, ADJUSTING 2 (2.35)

1HX-12169-N0-00

Unavailable

10

PAD, ADJUSTING 2 (2.40)

1HX-12169-T0-00

Unavailable
