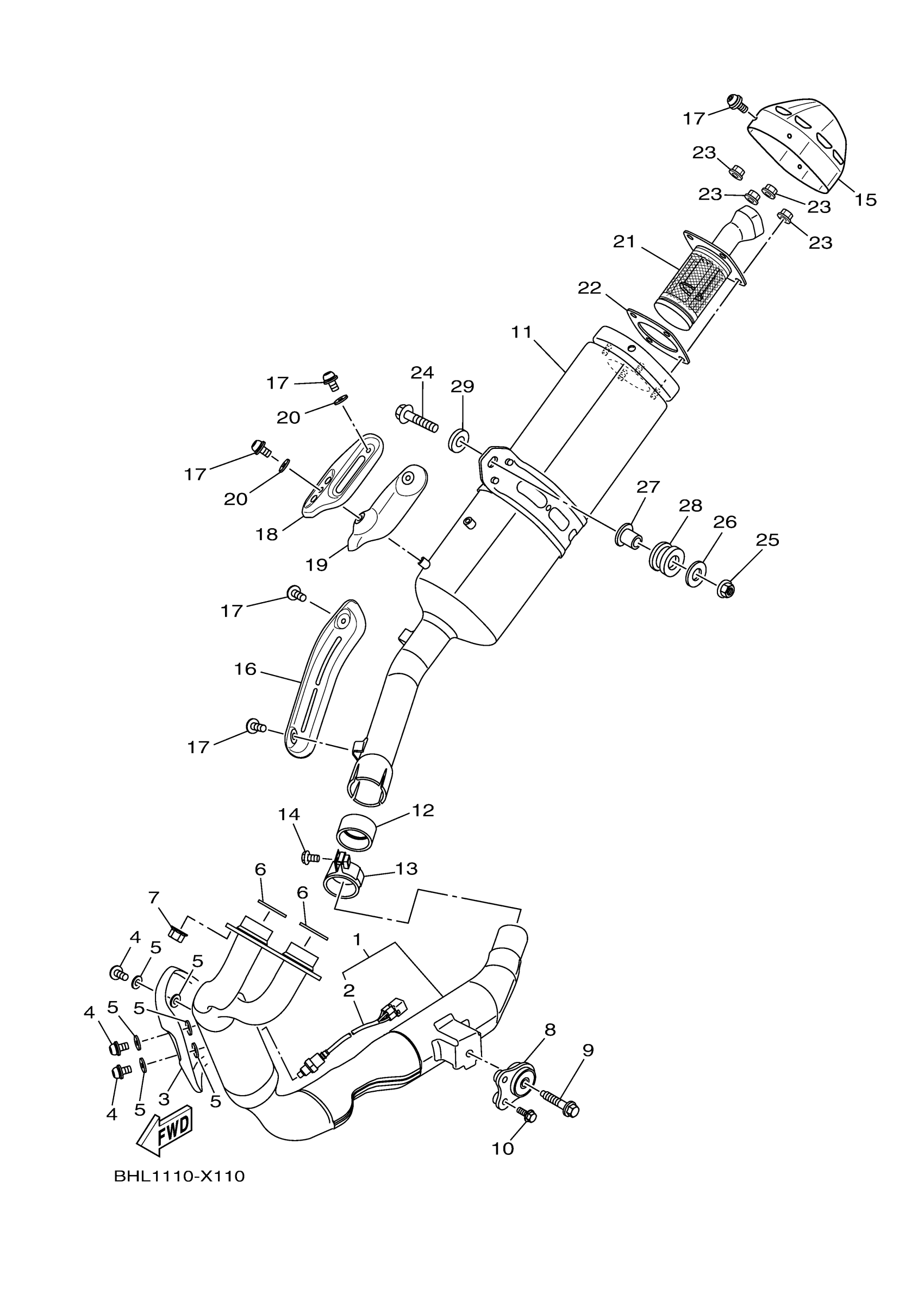

Yamaha XTZ7PL (TENERE 700) BMB6 2023 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

BHL-14610-00-00

$1,010.99

2

SENSOR, OXYGEN

2CR-8592A-20-00

$221.85

3

PROTECTOR, MUFFLER

BEH-E460B-00-00

$110.98

4

BOLT,HEX. SOCKET BUTTON

90111-06187-00

$1.88

5

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

6

GASKET, EXHAUST PIPE

3YF-14613-01-00

$10.82

7

NUT (22U)

90179-08410-00

$4.79

8

STAY, MUFFLER 1

BW3-21445-00-00

Unavailable

9

BOLT, FLANGE

90105-08164-00

$5.86

10

BOLT, FLANGE

95814-06020-00

$6.22

11

MUFFLER 1

BHL-14711-01-00

$838.99

12

GASKET, SILENCER

B71-14755-00-00

$12.48

13

BAND, MUFFLER

5S7-14715-00-00

Unavailable

14

BOLT,SOCKET

91314-08040-00

$4.89

15

CAP

BW3-E4799-00-00

$92.05

16

PROTECTOR ASSY 1

BW3-E471C-00-00

Unavailable

17

BOLT

90111-06060-00

Unavailable

18

PROTECTOR ASSY., 2

BW3-E472C-00-00

Unavailable

19

PROTECTOR, MUFFLER 3

BW3-E4738-00-00

Unavailable

20

WASHER, PROTECTOR

4BD-14766-00-00

$5.12

21

SPARK ARRESTER ASSY

BAU-14780-00-00

Unavailable

22

GASKET, SILENCER

BAU-14755-00-00

Unavailable

23

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

24

BOLT(3BC)

90111-10007-00

Unavailable

25

NUT, SELF-LOCKING

90185-10170-00

Unavailable

26

WASHER, PLATE

90201-10043-00

Unavailable

27

COLLAR (2H7)

90387-10636-00

Unavailable

28

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

29

COLLAR

BW3-14779-00-00

Unavailable
