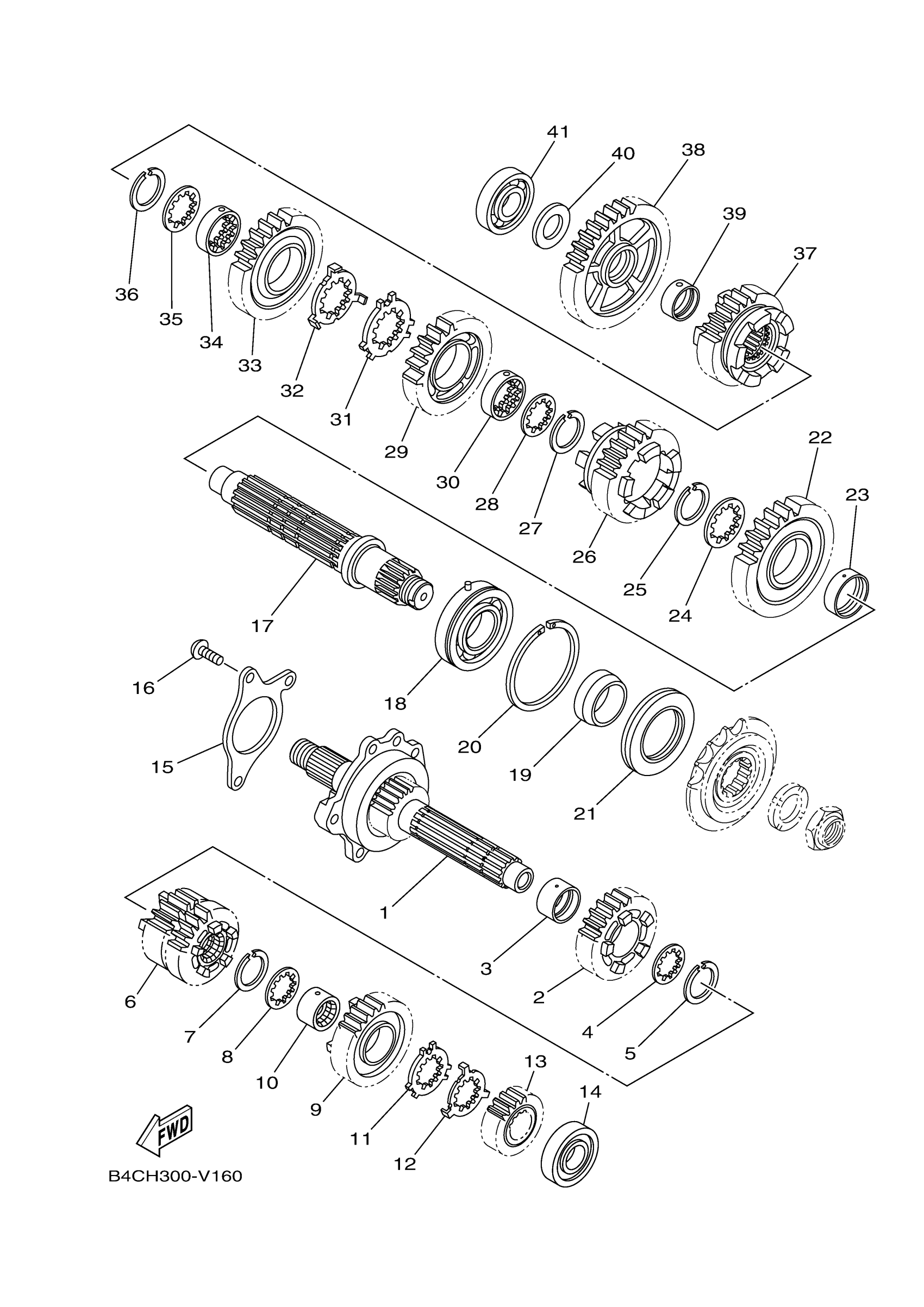

Yamaha XTZ7PL (TENERE 700) BMB6 2023 TRANSMISSION Diagram

#

Description
Price

1

MAIN AXLE ASSY

1WS-17401-00-00

Unavailable

2

GEAR, 5TH PINION (

1WS-17151-00-00

Unavailable

3

COLLAR(1UX)

90387-250R3-00

$30.99

4

WASHER(3VD)

90209-21332-00

$7.49

5

CIRCLIP

93440-25186-00

$7.49

6

GEAR, 3RD PINION (

1WS-17131-00-00

Unavailable

7

CIRCLIP

93440-25186-00

$7.49

8

WASHER(3VD)

90209-21332-00

$7.49

9

GEAR, 6TH PINION

BAT-17161-00-00

Unavailable

10

COLLAR

90387-21003-00

Unavailable

11

WASHER

90209-22352-00

$20.99

12

WASHER

90209-21351-00

$12.49

13

GEAR, 2ND PINION (

1WS-17121-00-00

Unavailable

14

BEARING(3LD)

93306-20464-00

Unavailable

15

PLATE

1WS-17446-00-00

Unavailable

16

SCREW

90149-06159-00

Unavailable

17

AXLE, DRIVE

1WS-17421-00-00

Unavailable

18

BEARING

93306-20663-00

Unavailable

19

COLLAR

90387-30012-00

Unavailable

20

CIRCLIP

93440-64199-00

Unavailable

21

OIL SEAL

93102-40030-00

Unavailable

22

GEAR, 2ND WHEEL (3

1WS-17221-00-00

Unavailable

23

COLLAR

90387-31003-00

Unavailable

24

WASHER

90209-28008-00

Unavailable

25

CIRCLIP

93440-31187-00

Unavailable

26

GEAR, 6TH WHEEL

BAT-17261-00-00

Unavailable

27

CIRCLIP

93440-31187-00

Unavailable

28

WASHER

90209-28008-00

Unavailable

29

GEAR, 4TH WHEEL (2

1WS-17241-00-00

Unavailable

30

COLLAR

90387-28004-00

Unavailable

31

WASHER, CLAW

90214-29002-00

Unavailable

32

WASHER, CLAW

90214-28002-00

Unavailable

33

GEAR, 3RD WHEEL (3

1WS-17231-00-00

Unavailable

34

COLLAR

90387-28004-00

Unavailable

35

WASHER

90209-28008-00

Unavailable

36

CIRCLIP

93440-31187-00

Unavailable

37

GEAR, 5TH WHEEL

BAT-17251-00-00

Unavailable

38

GEAR, 1ST WHEEL (3

1WS-17211-00-00

Unavailable

39

COLLAR

90387-25008-00

Unavailable

40

WASHER, PLATE

90201-20008-00

Unavailable

41

BEARING(3LD)

93306-20464-00

Unavailable
