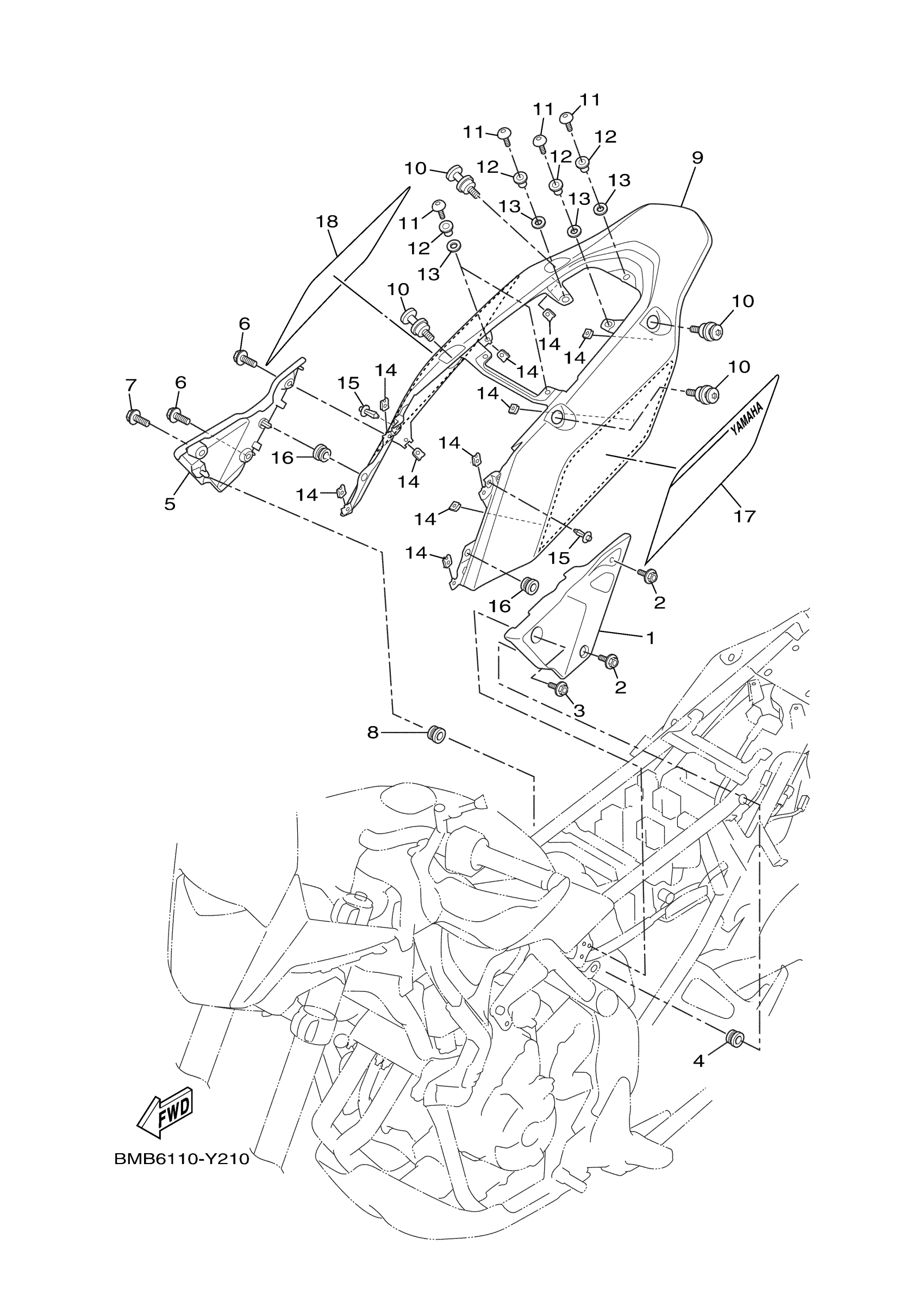

Yamaha XTZ7PL (TENERE 700) BMB6 2023 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

BMB-21711-00-00

$24.88

2

SCREW

90149-05042-00

$2.60

3

SCREW

90149-05045-00

$4.09

4

GROMMET(4DN)

90480-01558-00

$3.68

5

COVER, SIDE 2

BMB-21721-00-00

$25.52

6

SCREW

90149-05042-00

$2.60

7

SCREW

90149-05045-00

$4.09

8

GROMMET(4DN)

90480-01558-00

$3.68

9

COVER, SIDE 3

BMB-21731-00-P1

$447.99

10

HOOK

BMB-2162A-00-00

$19.68

11

BOLT

90111-05002-00

$4.85

12

COLLAR

90387-06255-00

$5.70

13

WASHER, PLATE

90202-08006-00

$1.62

14

NUT, SPRING

90183-050A6-00

$2.21

15

RIVET

90269-06019-00

$2.72

16

GROMMET(4FU)

90480-13567-00

Unavailable

17

GRAPHIC 1

BMB-2173E-10-00

Unavailable

18

GRAPHIC 2

BMB-2173F-10-00

Unavailable
