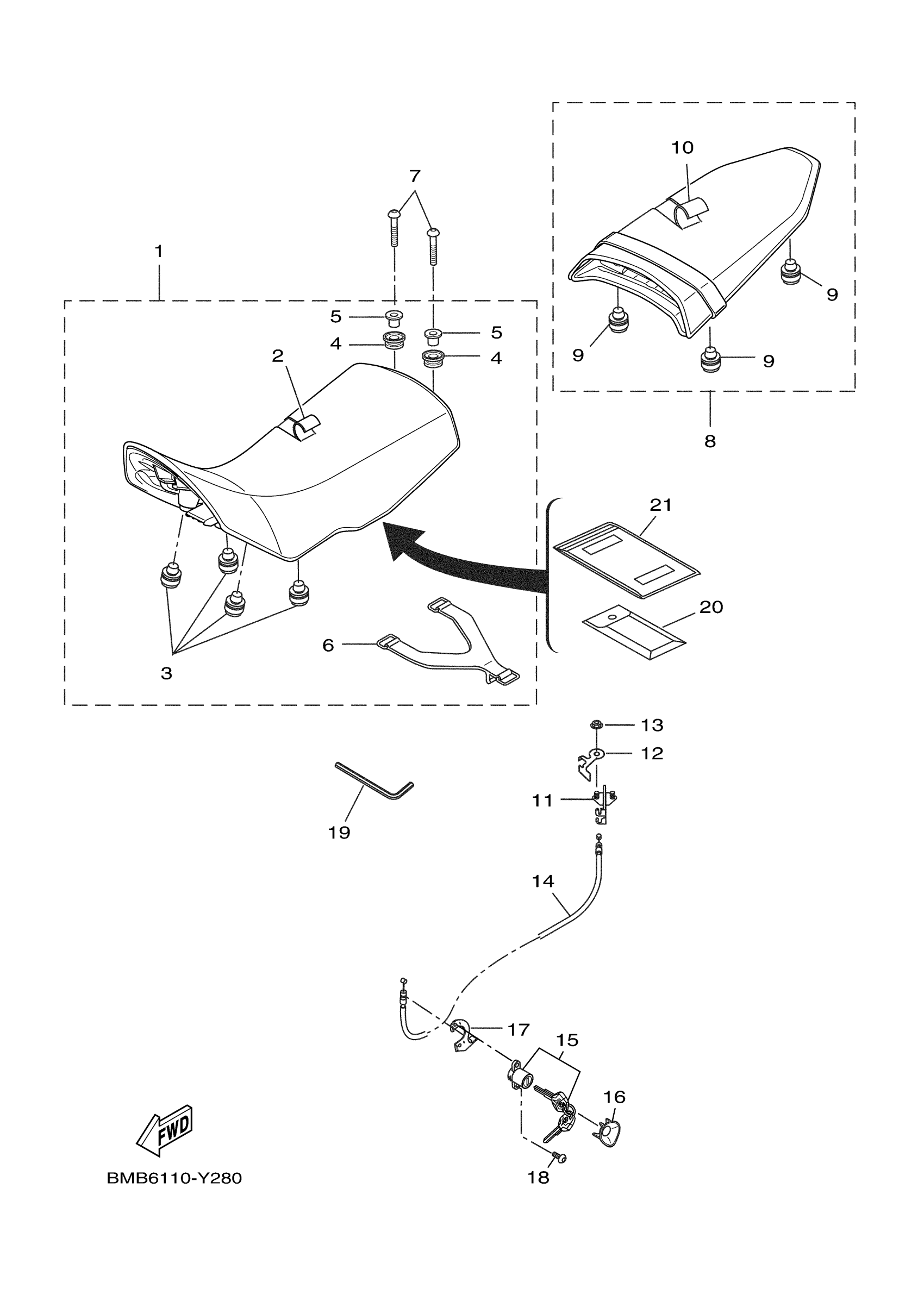

Yamaha XTZ7PL (TENERE 700) BMB6 2023 SEAT Diagram
#
Description
Price
2
SEAT COVER COMP.
BW3-F470F-00-00
Unavailable
6
BAND
11D-F483H-00-00
Unavailable
8
TANDEM SEAT ASSY
BW3-F4750-00-00
Unavailable
10
SEAT COVER COMP. ,
BW3-F470H-00-00
Unavailable
12
PLATE, LOCK
BAU-2479K-00-00
Unavailable
14
CABLE, SEAT LOCK
BW3-F478E-00-00
Unavailable
16
COVER
BW3-F4796-00-00
Unavailable
17
STAY, LOCK
23P-2117K-01-00
Unavailable
18
SCREW
90149-06030-00
Unavailable
19
WRENCH, HEXAGON 8
23P-28164-00-00
Unavailable
20
TOOL KIT
BMB-28100-00-00
Unavailable
21
POUCH
4KG-28186-11-00
Unavailable
