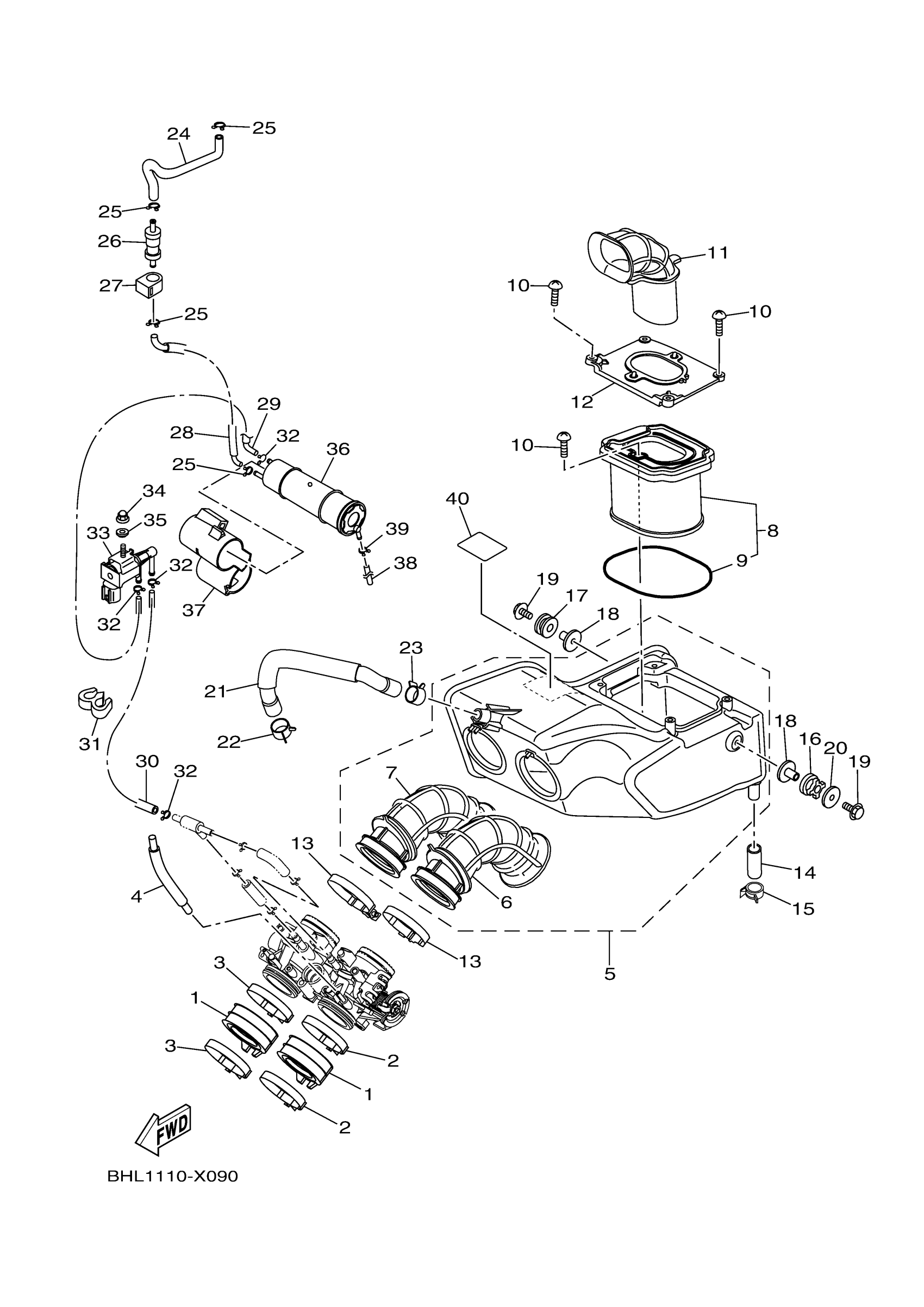

Yamaha XTZ7PL (TENERE 700) BMB6 2023 INTAKE Diagram
#
1
JOINT, INTAKE 1
1WS-13635-00-00
Unavailable
4
HOSE, VACUUM SENSI
BEH-13542-00-00
Unavailable
5
AIR CLEANER CASE A
BW3-14401-02-00
Unavailable
6
FUNNEL, AIR
BW3-14469-01-00
Unavailable
9
SEAL
1WS-14452-00-00
Unavailable
16
GROMMET
90480-15001-00
Unavailable
17
GROMMET
90480-15014-00
Unavailable
18
COLLAR
90387-06300-00
Unavailable
19
BOLT, FLANGE
95817-06025-00
Unavailable
20
WASHER, PLATE(1JK)
90201-064K6-00
Unavailable
21
PIPE, BREATHER 1
BAU-11166-00-00
Unavailable
22
CLIP(3TB)
90467-17128-00
Unavailable
23
CLIP
90467-160A2-00
Unavailable
24
PIPE 10
BW3-24321-00-00
Unavailable
25
CLIP
90467-090A2-00
Unavailable
26
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
27
CLAMP 1
BAU-24135-00-00
Unavailable
28
PIPE 11
2RC-24322-00-00
Unavailable
29
PIPE 15
BEH-243A1-00-00
Unavailable
30
PIPE 16
BEH-243A2-00-00
Unavailable
31
CLAMP(6M7)
90464-09M31-00
Unavailable
32
CLIP
90467-090A2-00
Unavailable
33
SOLENOID VALVE ASSY
BG4-86120-00-00
Unavailable
34
NUT, CROWN
90176-06008-00
Unavailable
35
COLLAR
90387-06130-00
Unavailable
36
CANISTER ASSY
BW3-F4170-00-00
Unavailable
37
DAMPER, LOCATING 2
2RC-24182-00-00
Unavailable
38
PIPE 13
BW3-24324-00-00
Unavailable
39
CLIP
90467-090A2-00
Unavailable
40
PLATE, ROUTING
34B-21684-01-00
Unavailable
