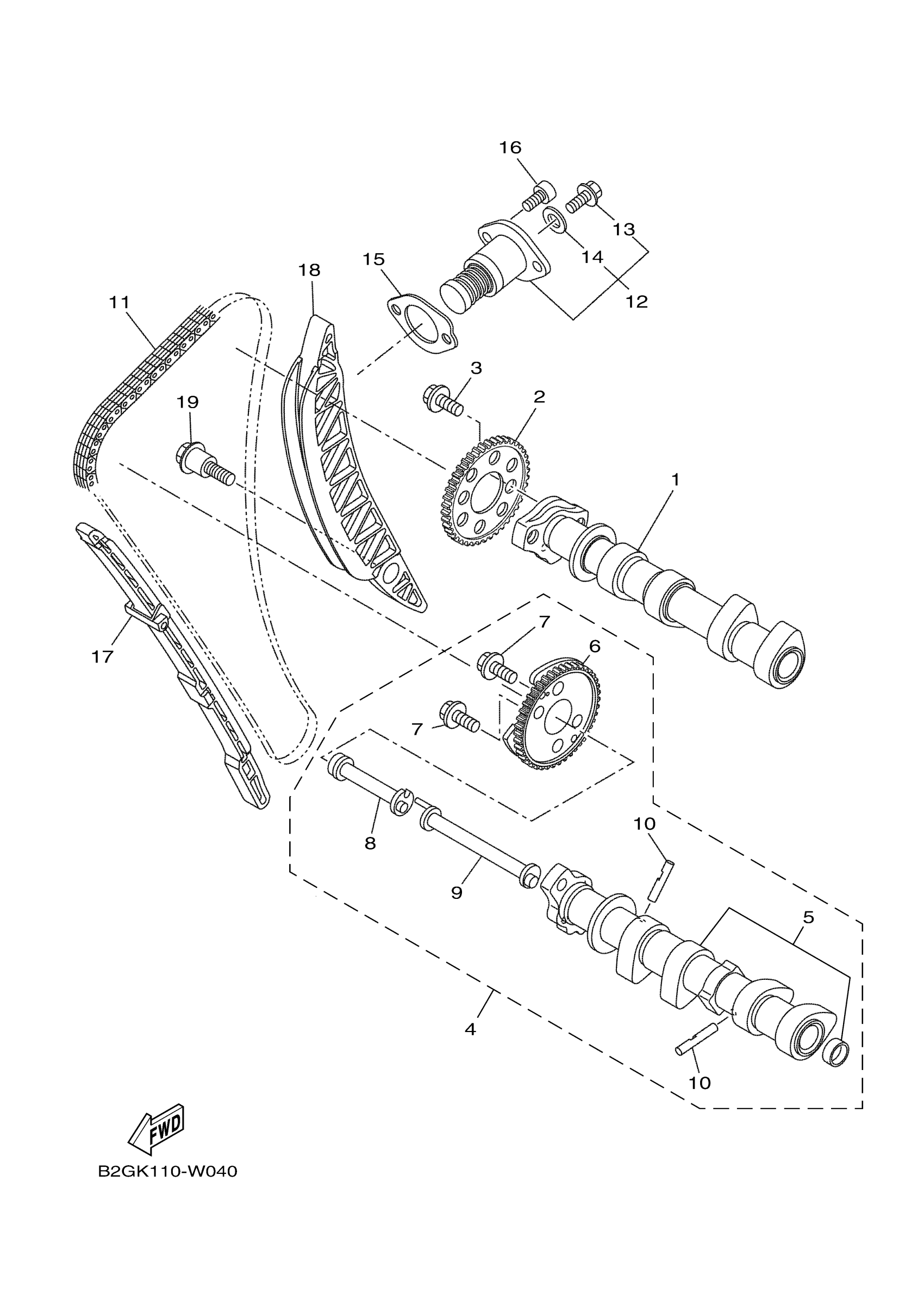

Yamaha XTZ7PL (TENERE 700) BMB6 2023 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1WS-12170-00-00

$246.99

2

SPROCKET, CAM CHAI

BAT-12176-00-00

$57.99

3

BOLT, FLANGE

90105-07006-00

$8.49

4

CAMSHAFT ASSY 2

1WS-12180-10-00

$505.99

5

CAMSHIFT SET

1WS-W1218-10-00

$187.99

6

DECOMPRESSION ASSY

1WS-12280-00-00

$270.99

7

BOLT, FLANGE

90105-07006-00

$8.49

8

SHAFT, TENSIONER

1WS-12247-00-00

$149.99

9

SHAFT 2

1WS-12257-00-00

$152.99

10

CAM, DECOMPRESSION

1PD-12288-00-00

Unavailable

11

CHAIN

94591-61134-00

$46.99

12

TENSIONER ASSY, CAM CHAIN

1WS-12210-02-00

$198.99

13

BOLT

5EL-12228-00-00

$5.49

14

GASKET

5SL-12214-00-00

$7.99

15

GASKET, TENSIONER

1WS-12213-00-00

$4.32

16

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

Unavailable

17

DAMPER, CHAIN 1

1WS-12251-00-00

Unavailable

18

DAMPER, CHAIN 2

1WS-12252-00-00

Unavailable

19

BOLT

90109-06297-00

Unavailable
