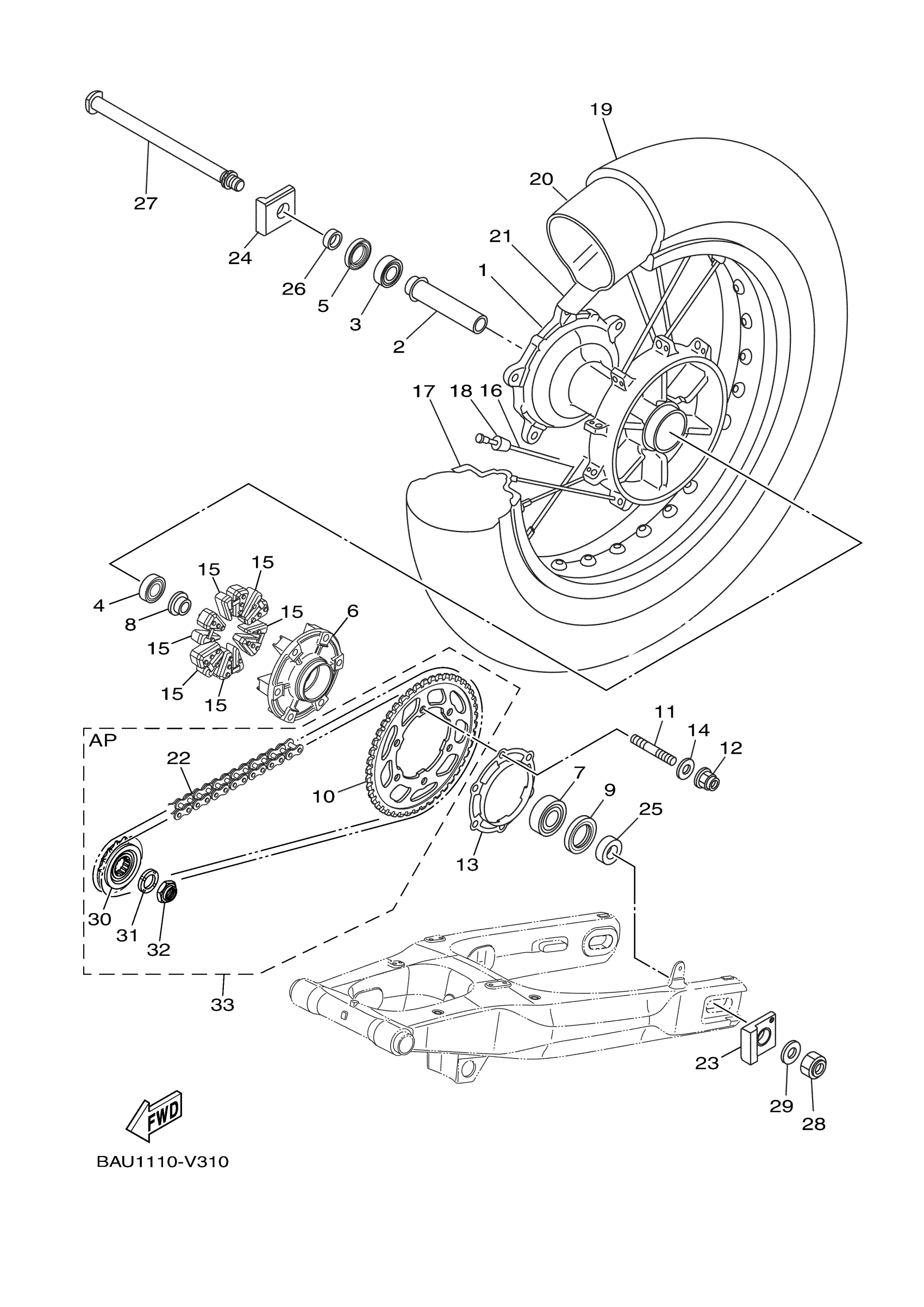

Yamaha XTZ7NL (TENERE 700) BHL1 2022 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

BW3-25311-00-00

Unavailable

2

SPACER, BEARING

BW3-25317-00-00

$17.21

3

BEARING

93306-20480-00

$36.30

4

BEARING(8AB)

93306-00444-00

$34.26

5

OIL SEAL (28X47X7-102)

93102-28022-00

$11.79

6

CLUTCH, HUB

5JJ-25366-00-00

$495.09

7

BEARING

93306-205B5-00

$33.05

8

COLLAR, WHEEL

1RC-25383-00-00

$26.24

9

OIL SEAL

93106-40013-00

$11.26

10

SPROCKET, DRIVEN (46T)

BW3-F5446-00-00

$143.21

11

BOLT, STUD

90116-10048-00

Unavailable

12

NUT, SELF-LOCKING

90185-10011-00

$3.67

13

BRACKET 1

1WS-2537W-00-00

$17.77

14

WASHER, PLATE

90201-10045-00

$5.75

15

DAMPER

5SL-25364-00-00

$34.08

16

SPOKE SET, REAR

BW3-F5304-00-00

Unavailable

17

RIM

94440-18002-00

Unavailable

18

BALANCER, WHEEL

BW3-25398-00-00

Unavailable

19

TIRE

94115-18X00-00

$263.47

20

TUBE

94210-18X00-00

Unavailable

21

BAND, RIM

94315-18X00-00

Unavailable

22

CHAIN

94582-49122-00

Unavailable

23

PULLER, CHAIN 1

3SP-25388-00-00

Unavailable

24

PULLER, CHAIN 2

1RC-25389-00-00

Unavailable

25

COLLAR

90387-20036-00

Unavailable

26

COLLAR

90387-20035-00

Unavailable

27

SHAFT, PIVOT

4FN-22141-00-00

Unavailable

28

NUT, SELF-LOCKING

90185-18009-00

Unavailable

29

WASHER, PLATE

90201-18013-00

Unavailable

30

SPROCKET, DRIVE

BW3-17460-00-00

Unavailable

31

WASHER, CONICAL SPRING

90208-22002-00

Unavailable

32

NUT

90179-22018-00

Unavailable

33

CHAIN & SPROCKET KIT

BAU-W001A-00-00

Unavailable
