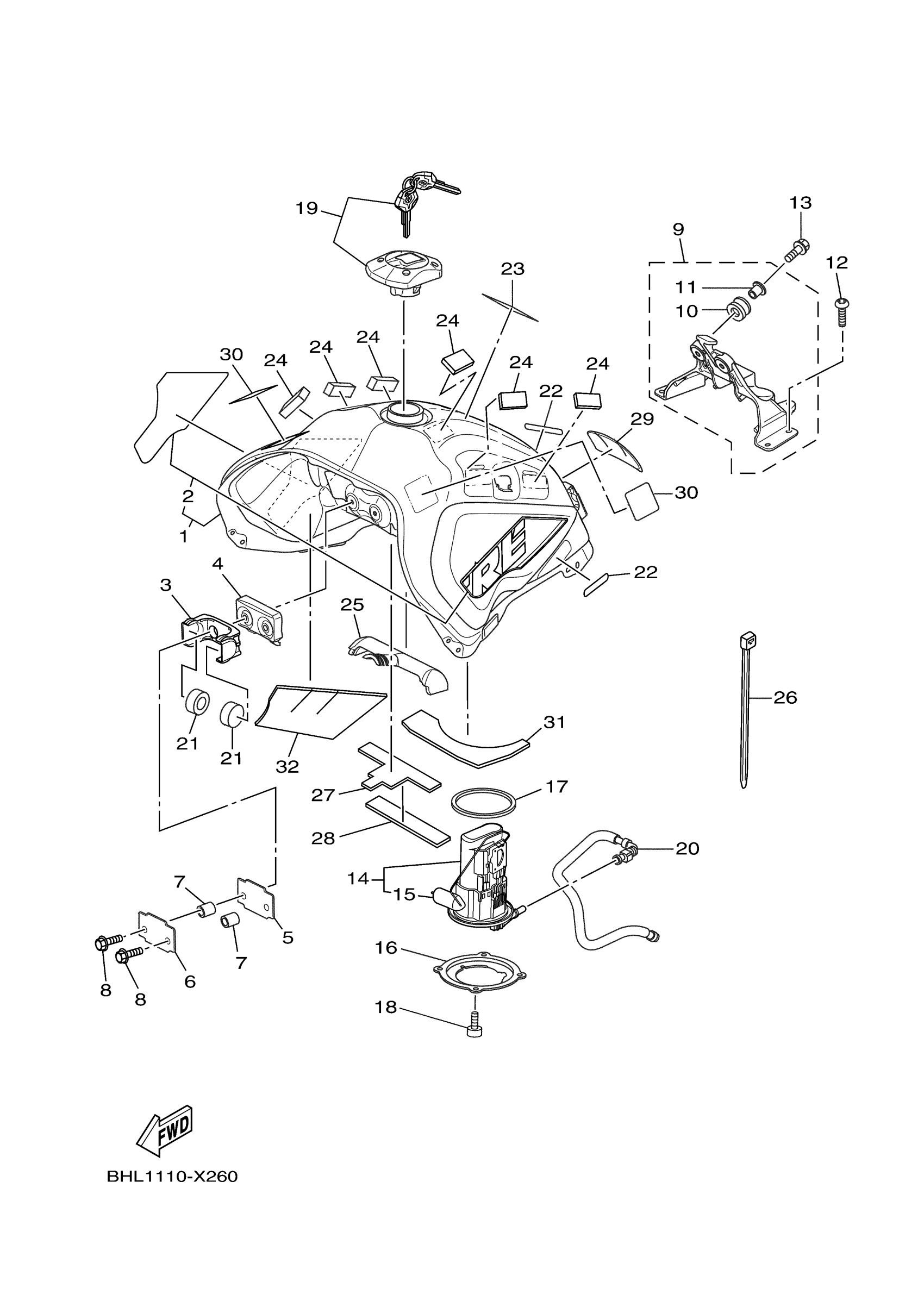

Yamaha XTZ7NL (TENERE 700) BHL1 2022 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BW3-Y2410-02-02

$700.99

2

GRAPHIC SET

BHL-24240-10-00

Unavailable

3

BRACKET, TANK FITTING

BW3-2412Y-00-00

$21.99

4

DAMPER, LOCATING 1

BW3-24181-00-00

Unavailable

5

DAMPER, LOCATING 2

BW3-24182-00-00

Unavailable

6

WASHER, SPECIAL

BW3-24186-00-00

Unavailable

7

COLLAR (1M1)

90387-06553-00

$9.49

8

BOLT, FLANGE

95817-06025-00

Unavailable

9

TANK BRACKET ASSY 2

BW3-24105-01-00

Unavailable

10

GROMMET

90480-18018-00

Unavailable

11

COLLAR

90387-06136-00

$7.49

12

BOLT

90111-06051-00

$5.60

13

BOLT, FLANGE

95817-06025-00

Unavailable

14

FUEL PUMP COMP.

BW3-13907-10-00

Unavailable

15

SENDER UNIT ASSY,

BW3-85752-10-00

$90.99

16

BRACKET, FUEL PUMP

BW3-24491-00-00

Unavailable

17

O-RING

1RC-24486-00-00

Unavailable

18

BOLT

91312-05010-00

Unavailable

19

CAP ASSY

BW3-24602-00-00

Unavailable

20

PIPE, FUEL 1

BW3-13971-01-00

Unavailable

21

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

22

HOOK, SIDE COVER 1

BW3-2411G-00-00

Unavailable

23

DAMPER

5UM-21717-E0-00

Unavailable

24

DAMPER, PLATE

90520-05025-00

Unavailable

25

DAMPER, LOCATING 4

BW3-24184-00-00

Unavailable

26

CLAMP

90464-65001-00

Unavailable

27

PROTECTOR

BW3-24595-00-00

Unavailable

28

PROTECTOR

BW3-24595-10-00

Unavailable

29

PROTECTOR, FUEL TANK

BW3-24141-00-00

Unavailable

30

SEAL 1

3FY-21575-01-00

Unavailable

31

PROTECTOR, FUEL TA

BEH-24141-00-00

Unavailable

32

PROTECTOR, FUEL TA

BEH-24141-10-00

Unavailable
