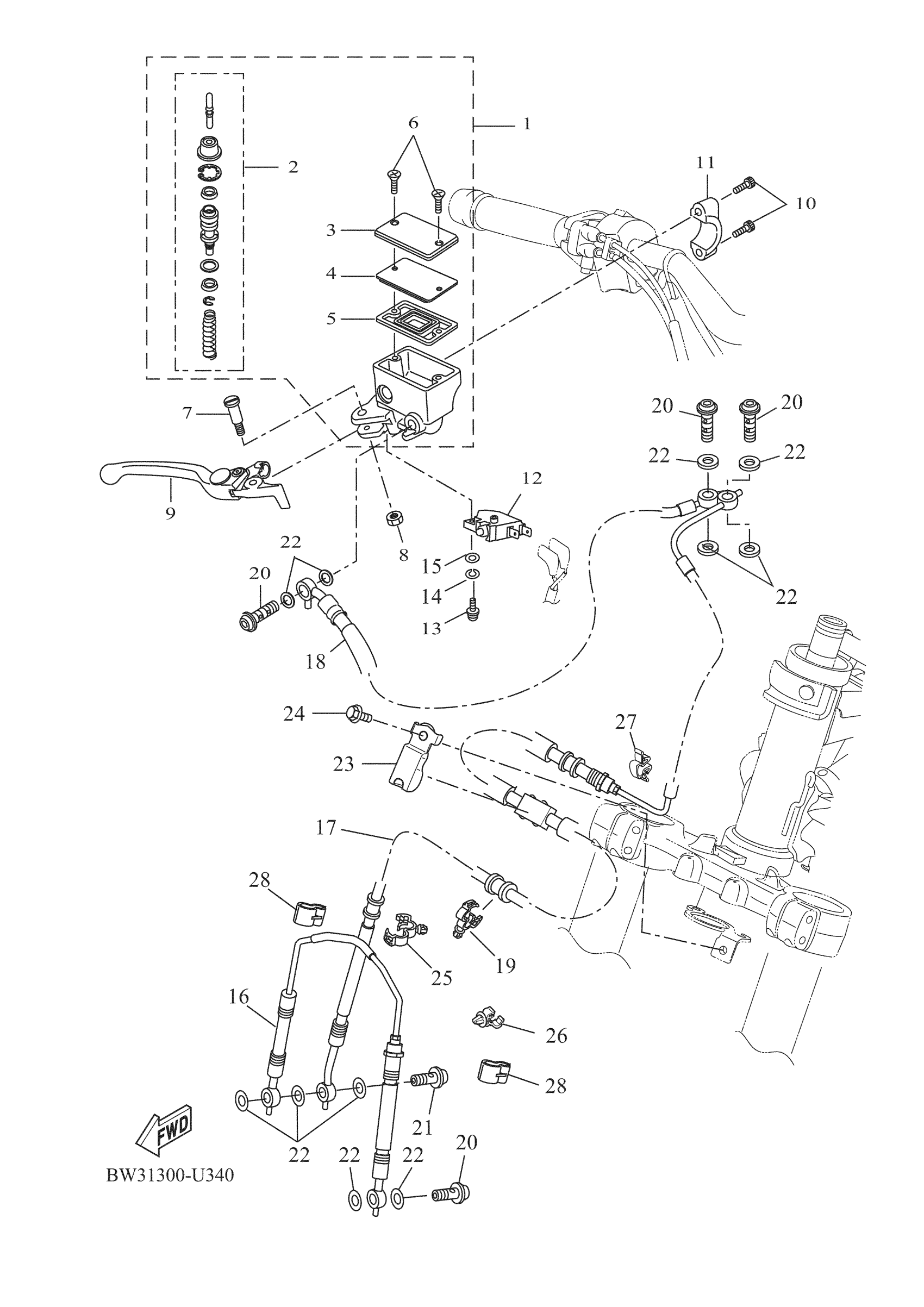

Yamaha XTZ7NL (TENERE 700) BHL1 2022 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

2B0-2580A-00-00

$146.71

2

CYLINDER KIT, MASTER

2D1-25807-00-00

$58.47

3

CAP, RESERVOIR

5VS-25852-00-00

Unavailable

4

BUSH,DIAPHRAGM

5VS-25855-00-00

$13.33

5

GASKET, DIAPHRAGM

20S-25854-00-00

$21.07

6

SCREW

5VS-2589H-00-00

$3.16

7

BOLT, LEVER

5VS-2589F-00-00

$11.48

8

NUT, SELF-LOCKING

95617-06100-00

$2.17

9

LEVER 2

5VS-83922-00-00

$68.90

10

BOLT

5VS-26332-00-00

$3.67

11

BRACKET, MASTER CYLINDER

5VS-25867-00-00

$29.63

12

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$28.77

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

15

WASHER, PLAIN (646)

92990-04600-00

$0.91

16

HOSE, BRAKE 1

BW3-25872-00-00

Unavailable

17

HOSE, BRAKE 2

BW3-25873-10-00

Unavailable

18

HOSE, BRAKE

BW3-25874-00-00

Unavailable

19

CLAMP

90464-14013-00

Unavailable

20

BOLT, UNION

90401-10172-00

Unavailable

21

BOLT, UNION

90401-10042-00

Unavailable

22

GASKET

90430-10005-00

Unavailable

23

HOLDER, BRAKE HOSE 2

BW3-25876-10-00

Unavailable

24

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

25

CLAMP

90464-18002-00

Unavailable

26

CLAMP

90464-08012-00

Unavailable

27

CLAMP(4BD)

90464-48174-00

Unavailable

28

CLAMP(4GL)

90464-10233-00

Unavailable
