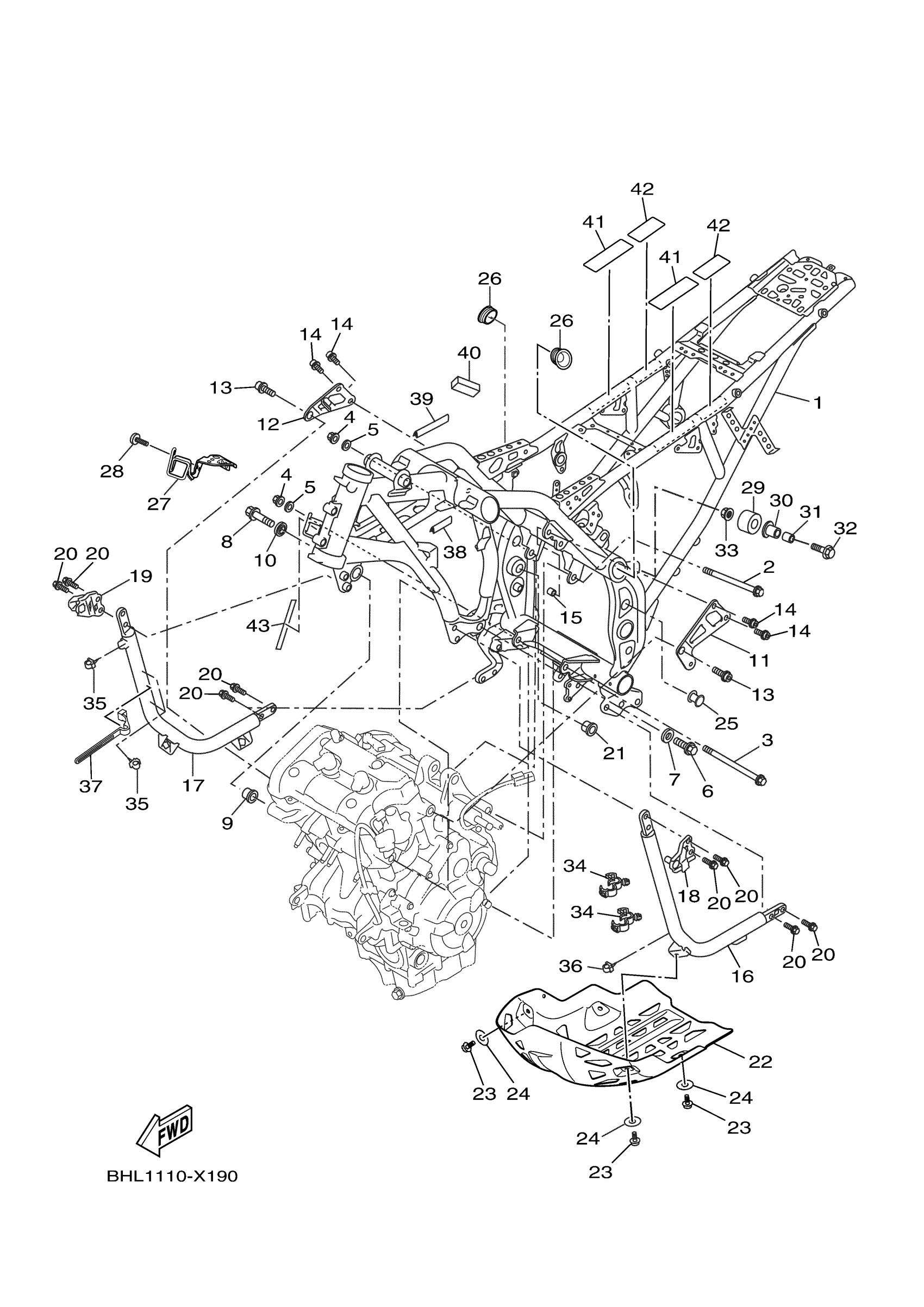

Yamaha XTZ7NL (TENERE 700) BHL1 2022 FRAME Diagram
#
1
FRAME COMP.
BAU-21110-00-00
Unavailable
3
BOLT, FLANGE
90105-10349-00
Unavailable
12
STAY, ENGINE 2
BW3-21316-00-00
Unavailable
15
HOSE (L10)
90445-11M08-00
Unavailable
16
SIDE MEMBER SUB-ASSY 1
BW3-21102-00-00
Unavailable
17
SIDE MEMBER SUB-ASSY 2
BW3-21103-00-00
Unavailable
18
BRACKET, RADIATOR
BW3-F142L-00-00
Unavailable
19
BRACKET, RADIATOR
BW3-F142M-00-00
Unavailable
20
BOLT, FLANGE
90105-08275-00
Unavailable
21
NUT
11D-F1494-00-00
Unavailable
22
PROTECTOR, ENGINE
BEH-F1471-00-00
Unavailable
23
BOLT, FLANGE
90105-06064-00
Unavailable
24
WASHER, PLATE
90201-06X00-00
Unavailable
25
PLUG
90338-15803-00
Unavailable
26
CAP
BW3-F1399-10-00
Unavailable
27
GUIDE, CABLE
BW3-21288-10-00
Unavailable
28
BOLT,HEX. SOCKET BUTTON
90111-06864-00
Unavailable
29
TENSIONER
30X-22178-00-00
Unavailable
30
BUSH
10V-22184-00-00
Unavailable
31
COLLAR
90387-08120-00
Unavailable
32
BOLT, FLANGE
95814-08045-00
Unavailable
33
NUT, SELF-LOCKING
95602-08200-00
Unavailable
34
CLAMP(4TR)
90464-18246-00
Unavailable
35
CLAMP
90464-10800-00
Unavailable
36
CLAMP
90464-10800-00
Unavailable
37
CLAMP(6U0)
90464-07M40-00
Unavailable
38
MOLD, FUEL TANK
31A-24188-01-00
Unavailable
39
MOLD, SEAT
2D1-24785-00-00
Unavailable
40
DAMPER, PLATE
90520-02837-00
Unavailable
41
PROTECTOR
BAU-2117G-00-00
Unavailable
42
PROTECTOR
BAU-2117G-10-00
Unavailable
43
PROTECTOR, FUEL TANK
3HA-24141-00-00
Unavailable
