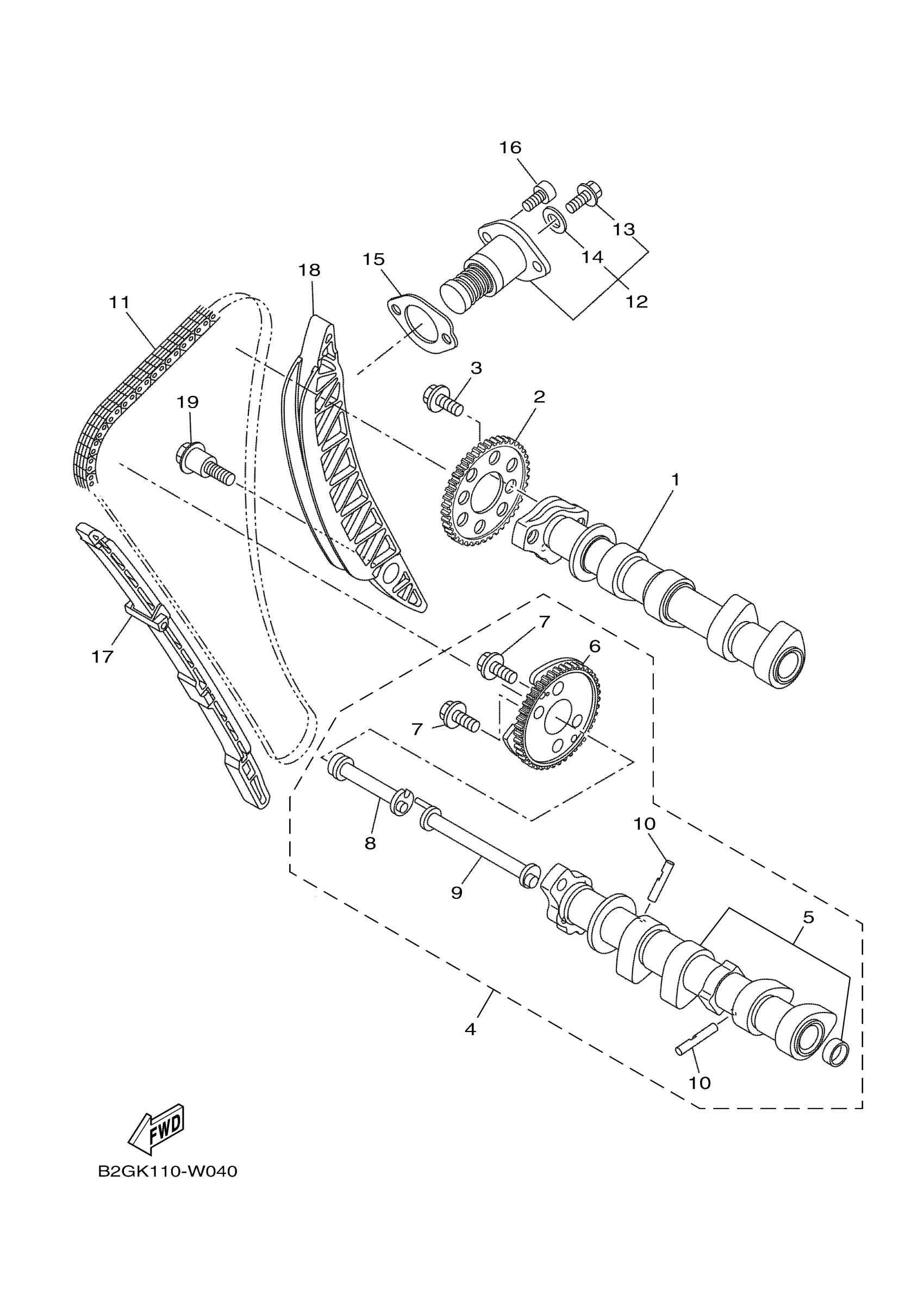

Yamaha XTZ7NL (TENERE 700) BHL1 2022 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1WS-12170-00-00

$204.47

2

SPROCKET, CAM CHAI

BAT-12176-00-00

$49.29

3

BOLT, FLANGE

90105-07006-00

$5.84

4

CAMSHAFT ASSY 2

1WS-12180-10-00

$455.60

5

CAMSHIFT SET

1WS-W1218-10-00

$175.84

6

DECOMPRESSION ASSY

1WS-12280-00-00

$181.72

7

BOLT, FLANGE

90105-07006-00

$5.84

8

SHAFT, TENSIONER

1WS-12247-00-00

$140.63

9

SHAFT 2

1WS-12257-00-00

$143.76

10

CAM, DECOMPRESSION

1PD-12288-00-00

Unavailable

11

CHAIN

94591-61134-00

$37.03

12

TENSIONER ASSY, CAM CHAIN

1WS-12210-02-00

$163.39

13

BOLT

5EL-12228-00-00

$2.52

14

GASKET

5SL-12214-00-00

$5.96

15

GASKET, TENSIONER

1WS-12213-00-00

$3.76

16

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

Unavailable

17

DAMPER, CHAIN 1

1WS-12251-00-00

Unavailable

18

DAMPER, CHAIN 2

1WS-12252-00-00

Unavailable

19

BOLT

90109-06297-00

Unavailable
