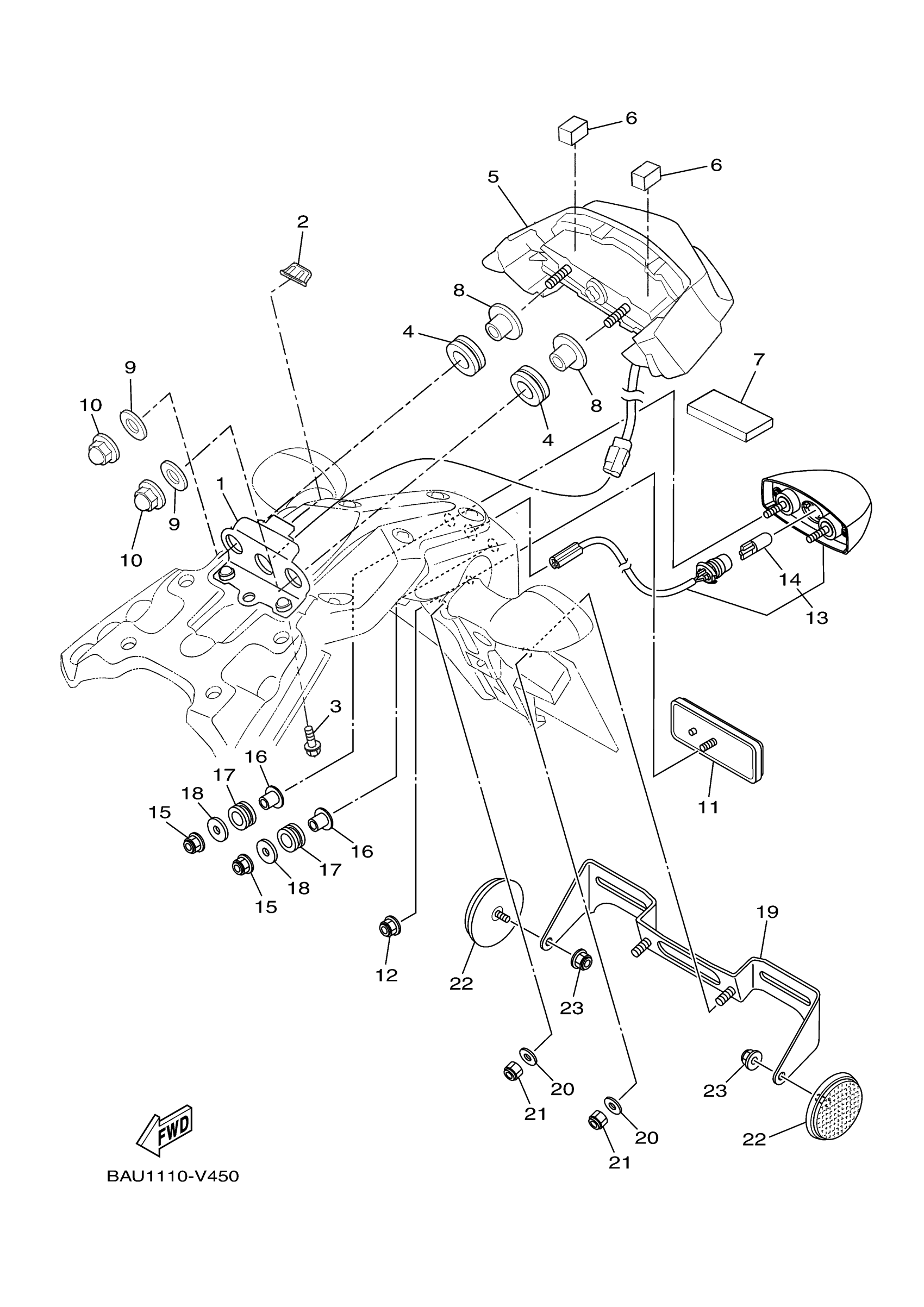

Yamaha XTZ7MW (TENERE 700) BAU11 2021 TAILLIGHT Diagram

#

Description
Price

1

BRACKET, TAILLIGHT

BW3-F117E-00-00

$42.99

2

DAMPER, SIDE COVER

2N4-21717-00-00

$7.99

3

SCREW

90149-05042-00

$3.28

4

GROMMET (4L0)

90480-18276-00

$8.49

5

TAILLIGHT ASSY

BW3-H4700-01-00

$223.99

6

DAMPER, PLATE

90520-15X03-00

$1.49

7

DAMPER, PLATE

90520-07X00-00

Unavailable

8

COLLAR

90387-06150-00

$5.60

9

WASHER, PLATE 8221447500

90201-06057-00

$5.60

10

NUT, CROWN

90176-06008-00

$8.49

11

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

12

NUT, S/L FLANGE

95607-05200-00

$9.49

13

LICENCE LIGHT ASSY

B34-84740-00-00

$59.99

14

BULB

1TP-84347-00-00

$6.99

15

NUT, S/L FLANGE

95607-05200-00

$9.49

16

COLLAR

90387-05042-00

Unavailable

17

GROMMET

90480-12023-00

Unavailable

18

WASHER PLATE (664)

90201-05556-00

Unavailable

19

BRACKET, LICENSE

1RC-84751-10-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

NUT, SELF-LOCKING

95617-06100-00

Unavailable

22

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

23

NUT, FLANGE

95702-05500-00

Unavailable
