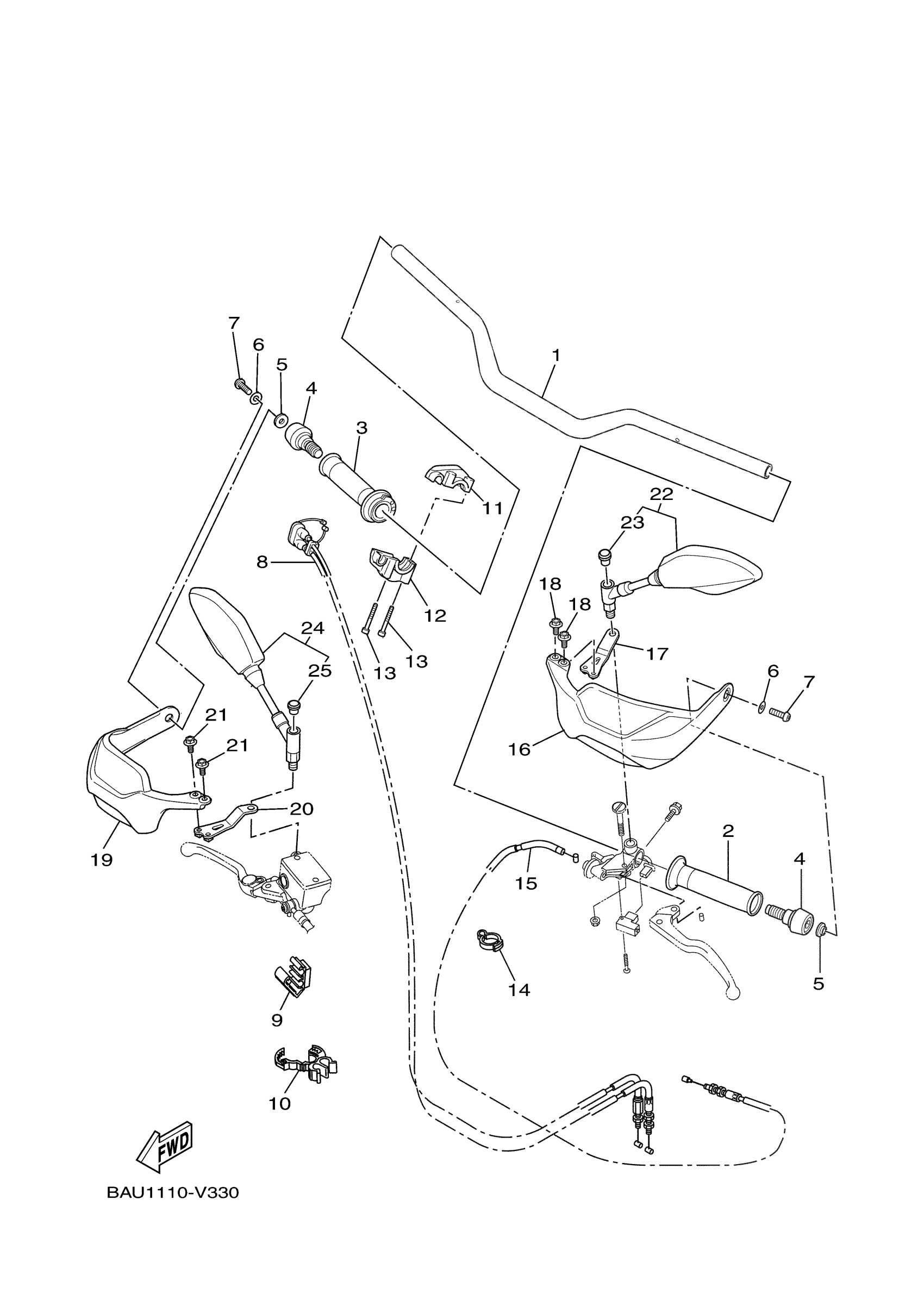

Yamaha XTZ7MW (TENERE 700) BAU11 2021 STEERING HANDLE & CABLE Diagram

#

Description
Price

1

HANDLEBAR

BW3-F6111-00-00

$192.99

2

GRIP

BEH-F6241-00-00

$30.99

3

GRIP ASSY

BEH-F6240-00-00

$52.99

4

END,GRIP

2BS-26246-00-00

$73.99

5

COLLAR

90387-08089-00

$7.49

6

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

7

BOLT, BUTTON HEAD

92012-08025-00

$7.49

8

THROTTLE CABLE ASSY

BW3-F6301-00-00

$50.99

9

CLAMP,WIRE

39P-2627E-00-00

$5.49

10

CLAMP

90464-16023-00

$3.28

11

CAP, GRIP UPPER

1WS-26281-00-00

$13.49

12

CAP, GRIP UNDER

1WS-26282-00-00

$14.49

13

BOLT, SOCKET

91317-05040-00

$2.55

14

CLAMP

90464-18004-00

Unavailable

15

WIRE, CLUTCH

BW3-F6335-00-00

$52.99

16

GUARD, BRUSH 1

BW3-F6141-00-00

Unavailable

17

BRACKET, HANDLE 1

BW3-F6223-00-00

Unavailable

18

SCREW

90149-05045-00

Unavailable

19

GUARD, BRUSH 2

BW3-F6142-00-00

Unavailable

20

BRACKET, HANDLE 3

BW3-F622A-00-00

Unavailable

21

SCREW

90149-05045-00

Unavailable

22

REAR VIEW MIRROR ASSY (LEFT)

1RC-26280-09-00

Unavailable

23

CAP

23P-26133-00-00

Unavailable

24

REAR VIEW MIRROR ASSY (RIGHT)

1RC-26290-09-00

Unavailable

25

CAP

23P-26133-00-00

Unavailable
